Brake Disc Shield

Shield

Removal
1. Remove the brake disc.
2. On 4x4 vehicles, remove the wheel hub.





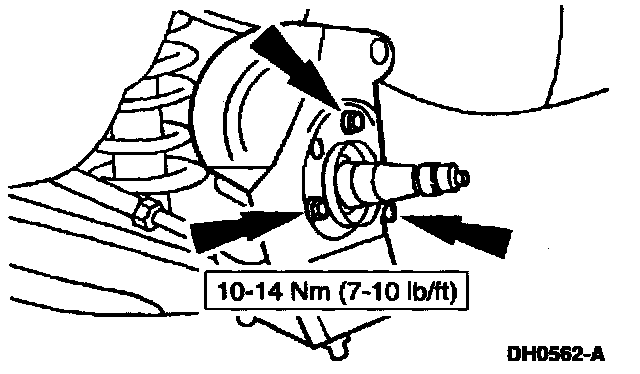

3. On 4x2 vehicles, remove the brake disc shield.

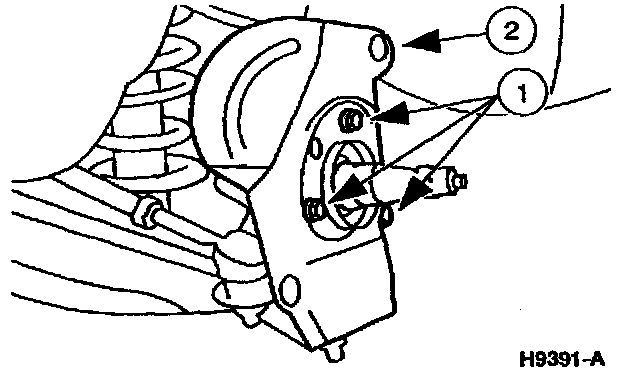

1 Remove the three bolts.
2 Remove the brake disc shield.





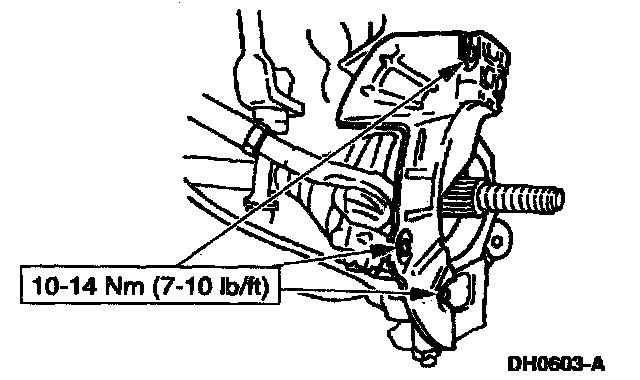

4. On 4x4 vehicles, remove the brake disc shield.

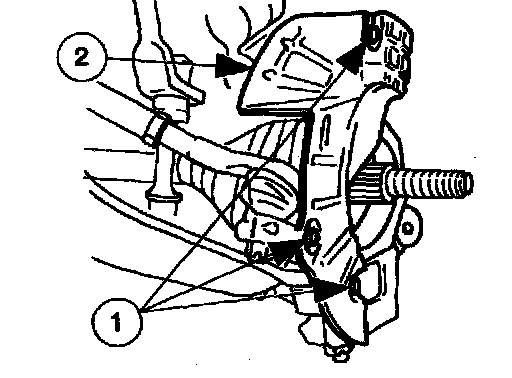

1 Remove the bolts.
2 Remove the brake disc shield.

Installation








1. To install, reverse the removal procedure.
