K: 9 - Speed Sensor High Resistance/Open Circuit

TEST K: DTC 9 - SPEED SENSOR HIGH RESISTANCE/OPEN CIRCUIT

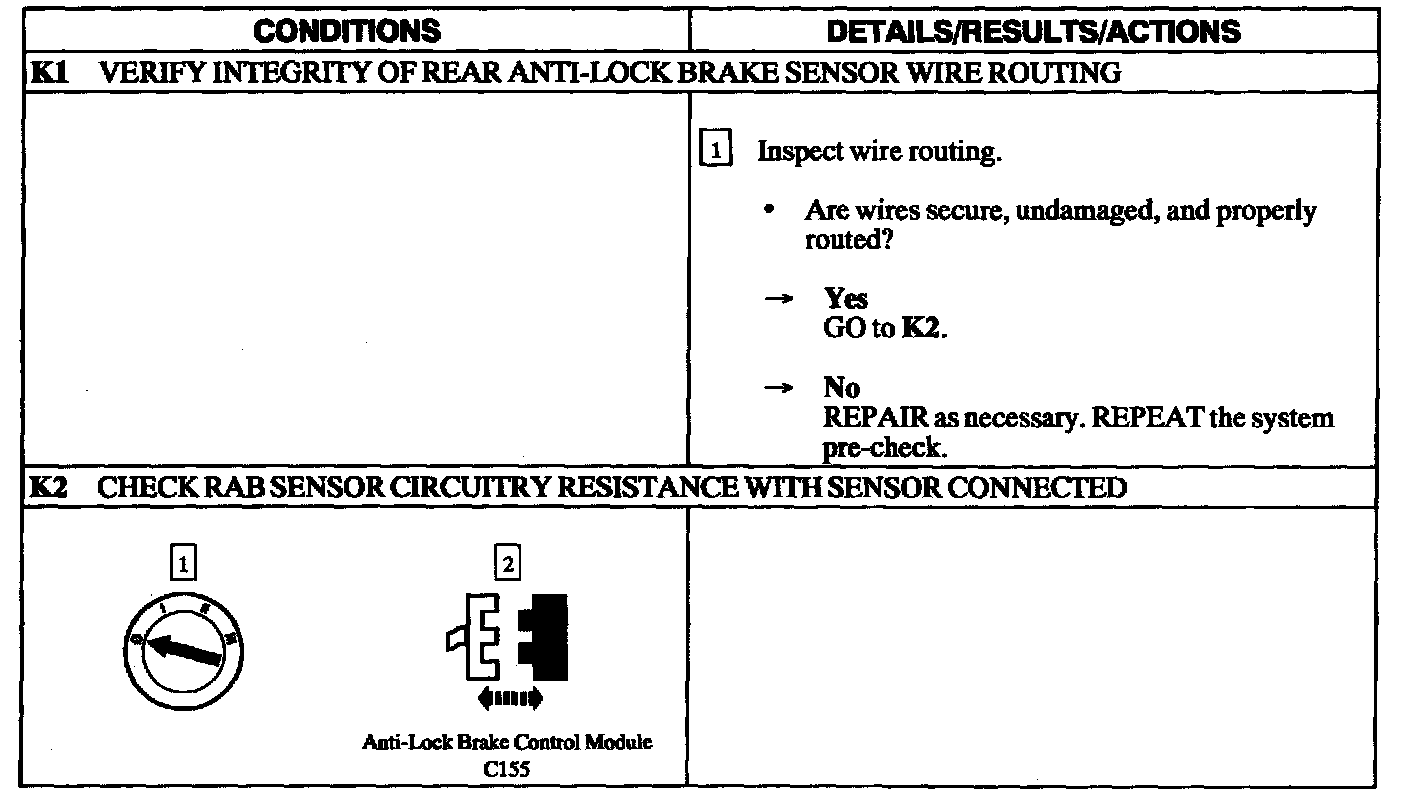

Test K1-K2:

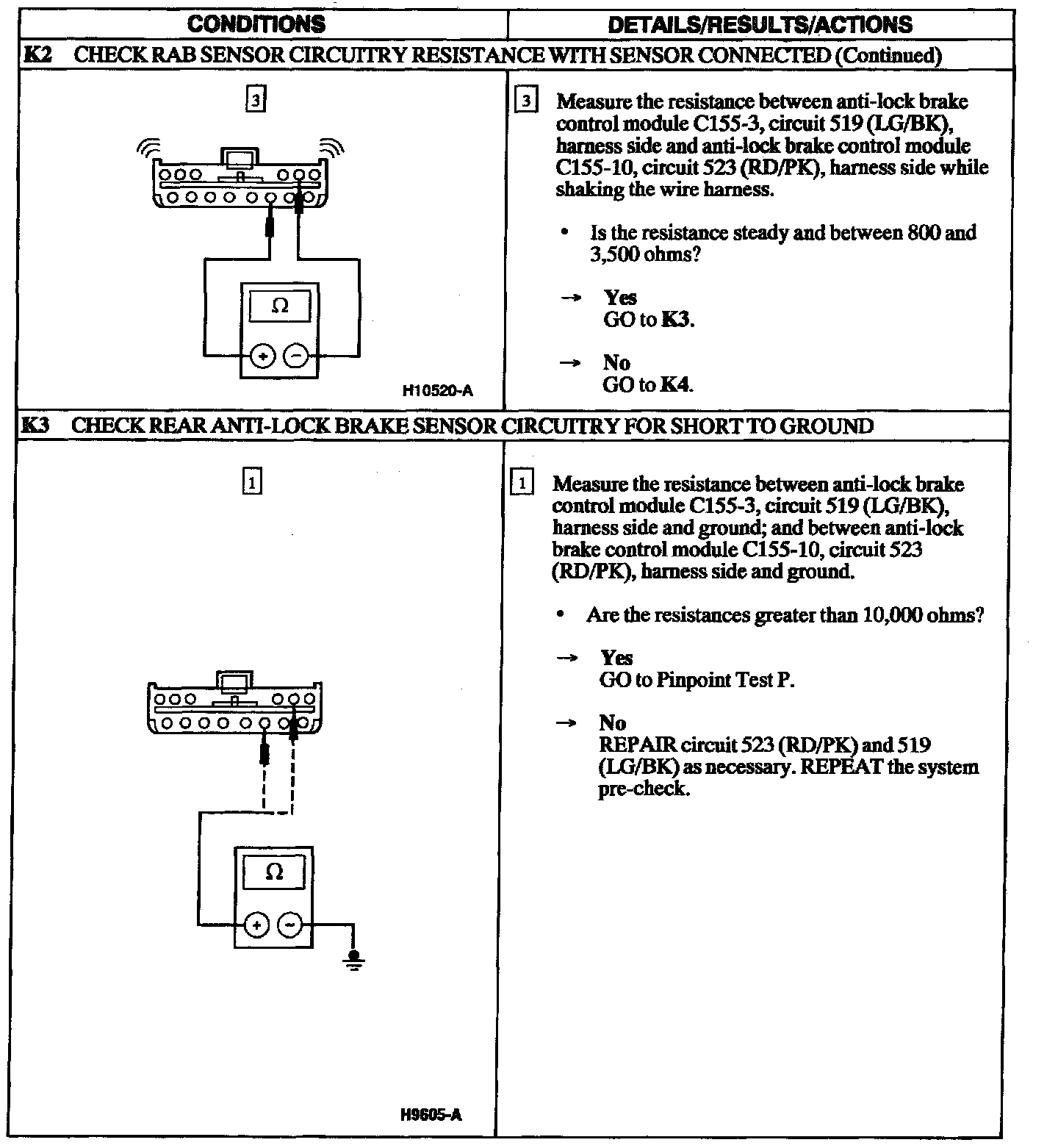

Test K2-K3:

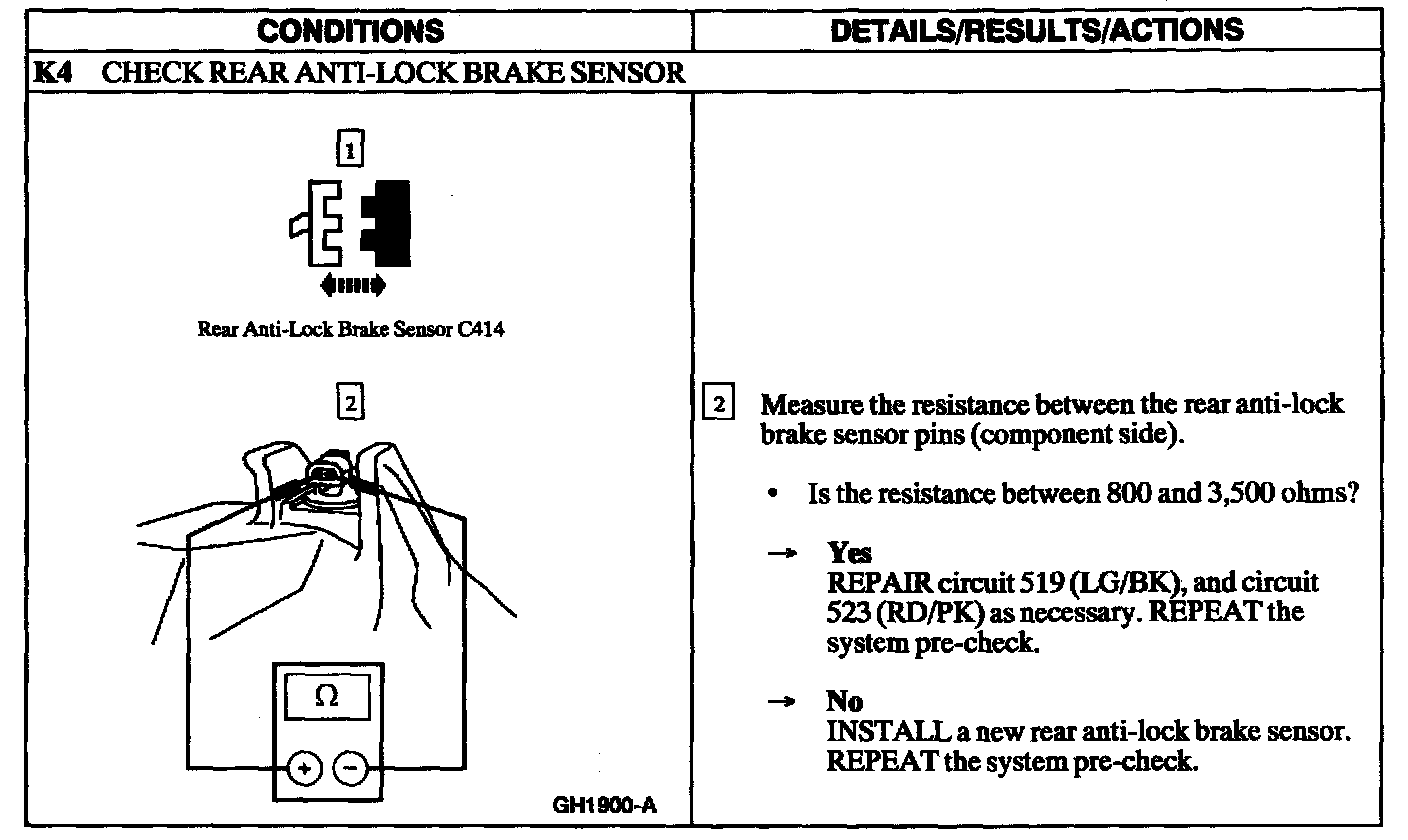

Test K4:

NOTE: Records maintained by the manufacturer show that a module replacement rarely correct DTC 9.
