D: 2 - Open RABS Isolation Solenoid Circuit
D: 2 - Open RABS Isolation Solenoid Circuit
TEST D: DTC 2- OPEN RABS ISOLATION SOLENOID CIRCUIT

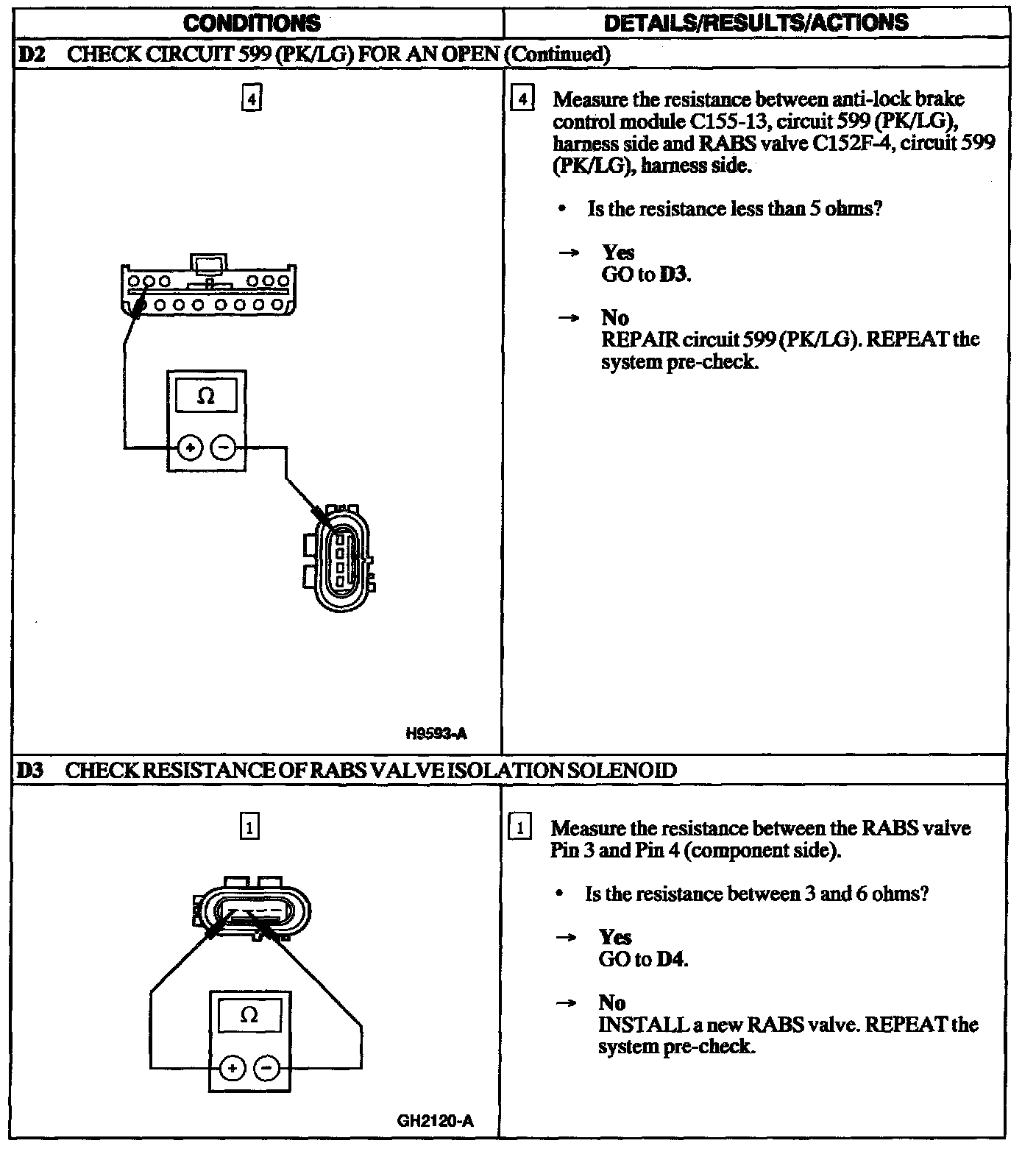

Test D1-D2:
Test D2-D3:

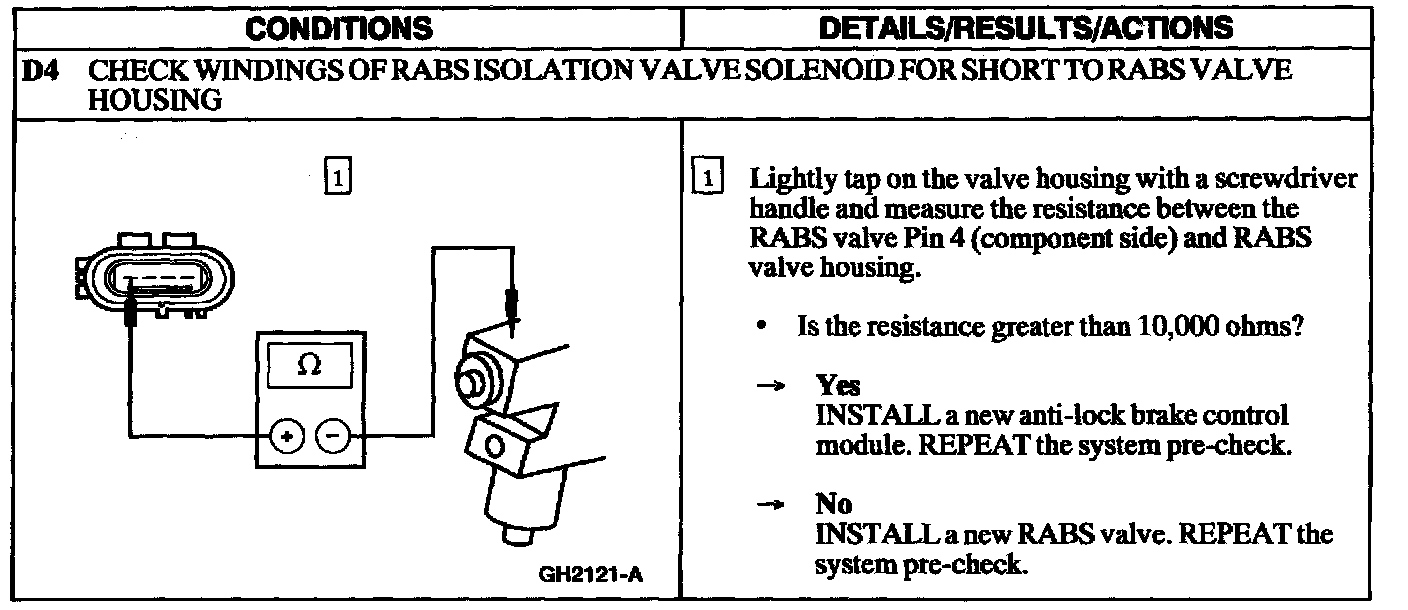

Test D4:
