Tailgate Lock Cylinder: Service and Repair

REMOVAL

NOTE: Individual lock cylinders are repaired by discarding the inoperative cylinder and building a new lock cylinder using the appropriate lock repair package. The lock repair package includes a detailed instruction sheet to build the new lock cylinder to the correct key code of the vehicle.

1. Remove the tailgate handle.

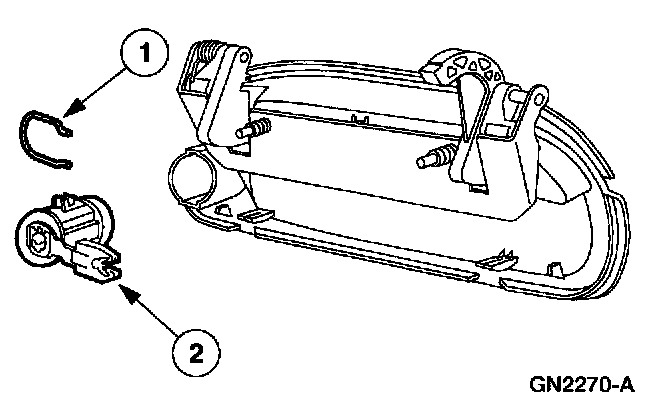

2. Remove the tailgate lock cylinder.
1 Remove the spring clip.
2 Remove the tailgate lock cylinder.

INSTALLATION
1. To install, reverse the removal procedure.
