Rear Seat Backrest Latch

REMOVAL
1. Remove the seat.

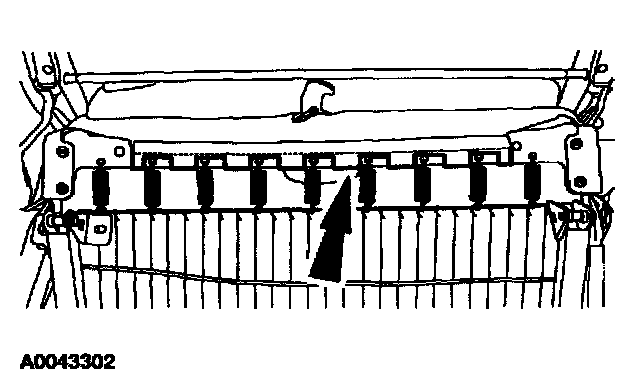

2. Unclip the J-clips and pull the material back to expose the latch.







3. Remove the clip.

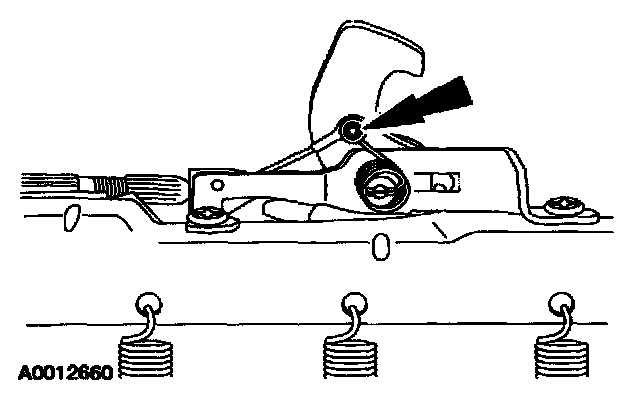

4. Release the latch spring tension then remove the latch cable.

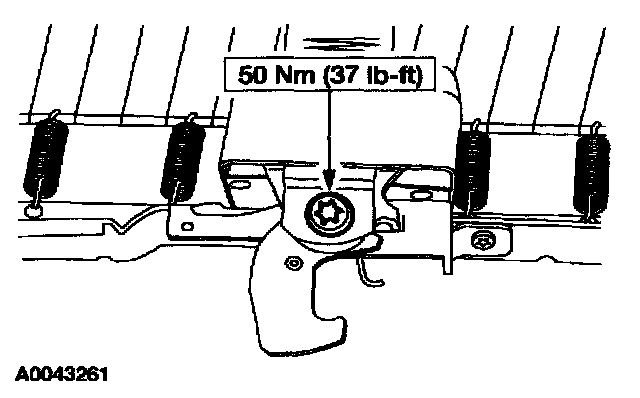

5. Remove the bolt and the retractor.

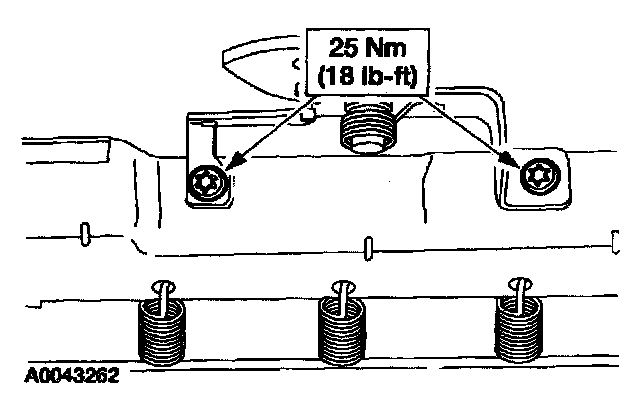

6. Remove the bolts.

INSTALLATION
1. To install, reverse the removal procedure.
