Removal and Replacement

B-PILLAR TRIM PANEL - SUPERCREW

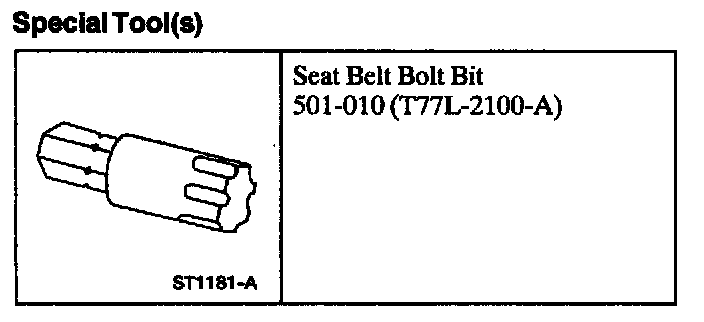

Special Tool(s):

Special Tool(s)

Removal and Installation
1. Position the front seat to the fully forward position.

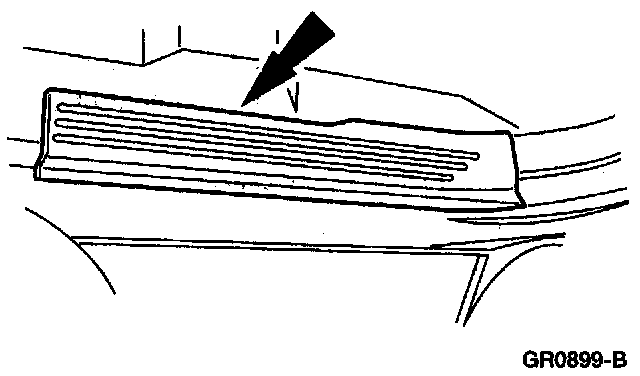

2. Remove the front door scuff plate.

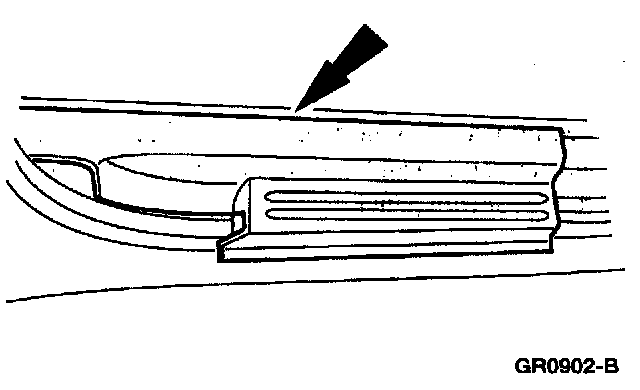

3. Remove the rear door scuff plate.







4. Remove the B-pillar passenger assist handle.
1 Remove the screw-covers and screws.
2 Remove the B-pillar assist handle.







5. Position the D-ring cover aside and remove the D-ring nut.
6. Position aside the front and rear door weatherstrips.
7. Position the B-pillar trim panel aside.

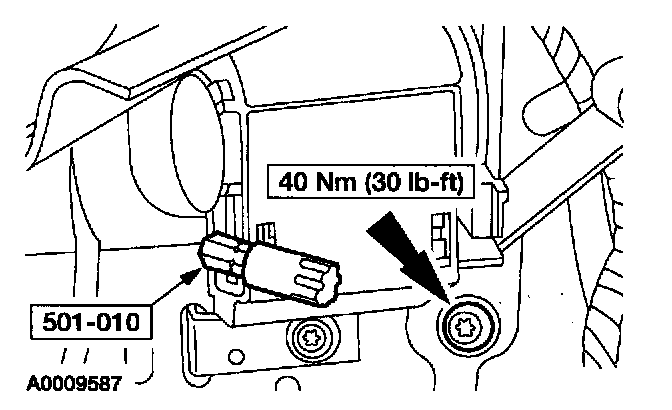

8. Using the special tool, remove the safety belt anchor bolt.
9. Remove the B-pillar trim panel.
10. To install, reverse the removal procedure.
