B-Pillar Trim Panel

Safety Belt Bolt Bit:

SPECIAL TOOL(S)

REMOVAL
1. Position the front seat to the fully forward position.

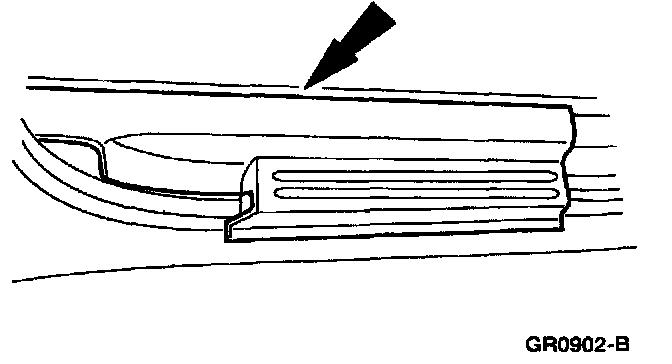

2. Remove the front door scuff plate.







3. Remove the rear door scuff plate.

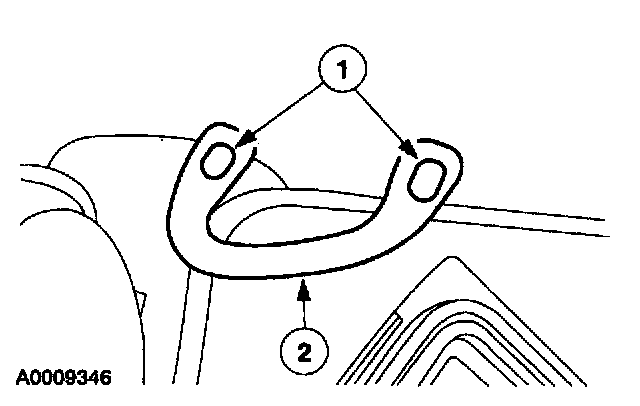

4. Remove the B-pillar passenger assist handle.
1 Remove the screw-covers and screws.
2 Remove the B-pillar assist handle.

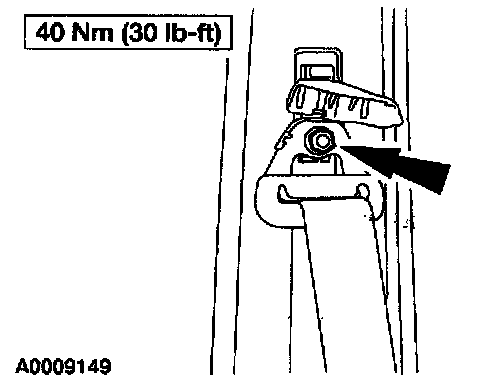

5. Position the D-ring cover aside and remove the D-ring nut.
6. Position aside the front and rear door weatherstrips.
7. Position the B-pillar trim panel aside.

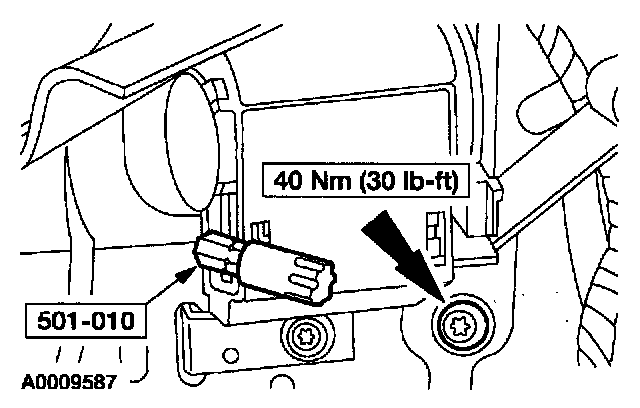

8. Using the special tool, remove the safety belt anchor bolt.
9. Remove the B-pillar trim panel.

INSTALLATION
1. To install, reverse the removal procedure.
