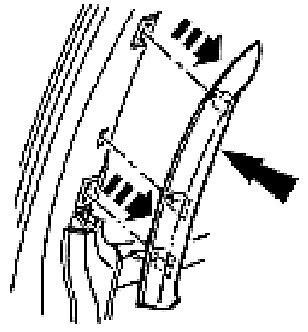

A-Pillar Trim Panel

Front Door Trim Panel
Removal and Installation All vehicles
1. Disconnect the battery ground cable. For additional information

Regular Cab and Super Cab only






2. Remove the front door trim moulding.

All vehicles






3. NOTE: Use the notch to remove the component.
Remove the interior door handle finish panel.






4. If equipped remove the window regulator switch plate (14524).
1. Lift the front of the window regulator switch bezel.
2. Disconnect the electrical connectors.

Regular Cab and Supert Cab only

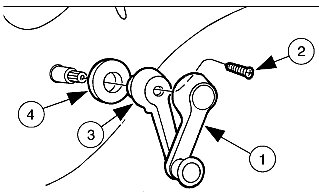

5. If equipped remove the window regulator handle (23342).
1. Separate the handle cover from the handle.
2. Remove the screw.
3. Remove the window regulator handle.
4. Remove the spacer.

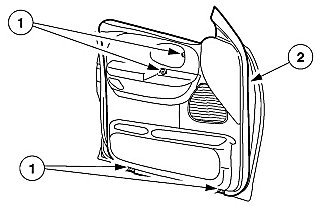

6. CAUTION: Do not pull directly outward on the front door trim panel, as damage may occur.






Remove the front door trim panel.
1. Remove the screws.
2. Lift and remove the front door trim panel.

Super Crew only






7. CAUTION: Do not pull directly outward on the door trim panel, as damage may occur.

All vehicles






8. If equipped twist the courtesy lamp bulb socket one quarter turn and remove the socket from the front door trim panel.
9. To install reverse the removal procedure.
