Floor Console - Rear

REMOVAL

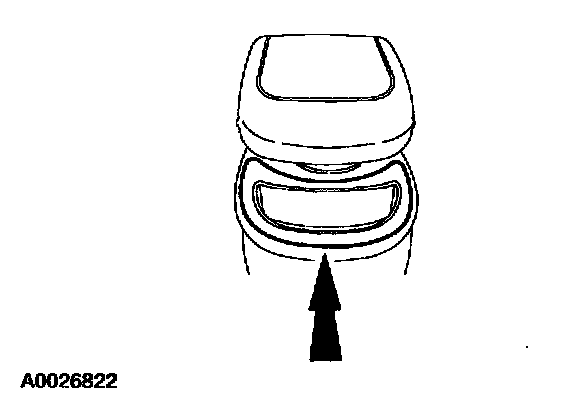

1. Remove the storage tray.

NOTE: Pull upward on the center of the storage tray to release the clips.

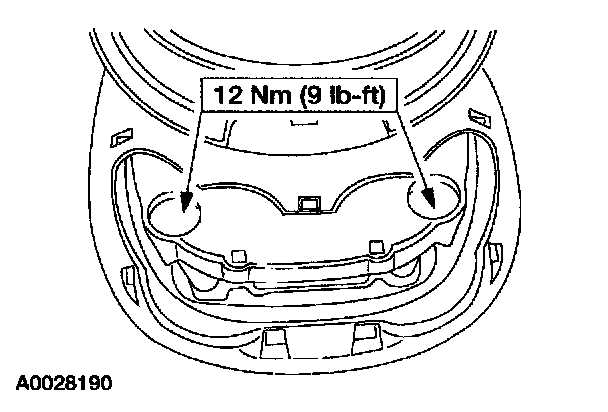

2. Remove the rear floor console front bolts.
3. Tilt the rear seats forward.

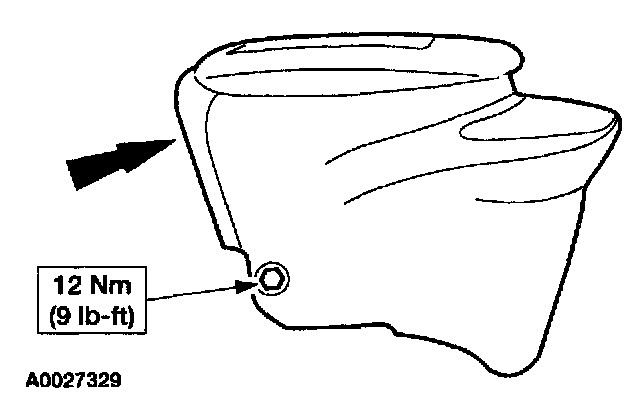

4. Remove the two bolts (one each side) and the rear floor console.

INSTALLATION
1. To install, reverse the removal procedure.
