Console - Floor

REMOVAL
1. Open the floor console cover.
2. If equipped, remove the CD changer.
3. If equipped, remove the video cassette player (VCP).
4. If equipped, remove the floor console tray mat.

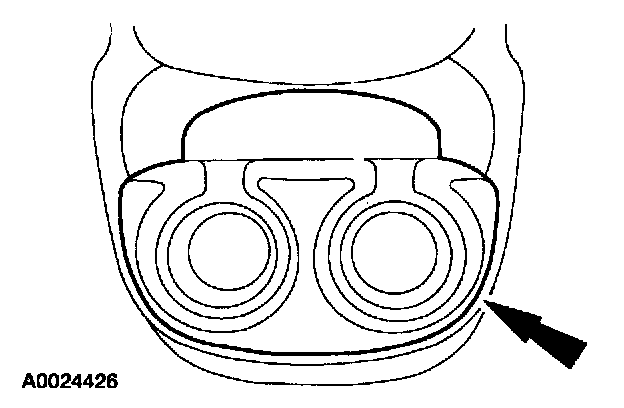

5. Remove the floor console cupholder assembly.

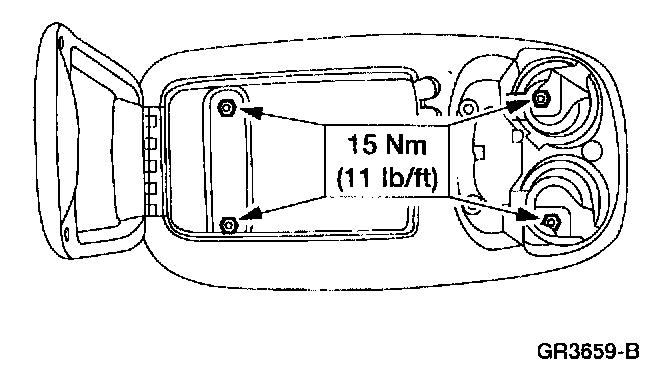

6. Remove the nuts and the floor console.
^ Feed the wiring harness through the floor console.

INSTALLATION
1. To install, reverse the removal procedure.
