EGR Tube: Service and Repair

REMOVAL
1. Remove the differential pressure feedback EGR sensor.

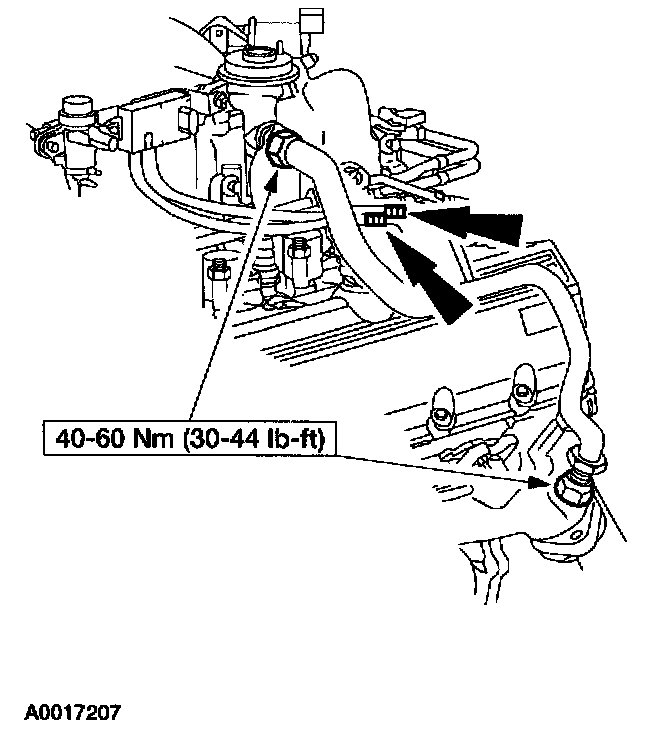

2. Remove the EGR valve tube.
^ Disconnect the upper and lower EGR valve tube fittings.
^ Disconnect the two differential pressure feedback EGR hoses.

INSTALLATION
1. To install, reverse the removal procedure.
