Home >> Ford Truck >> 2002 >> F 150 4WD Pickup V6-4.2L VIN 2 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Refrigerant Pressure Sensor / Switch, HVAC >> A/C High Pressure Switch

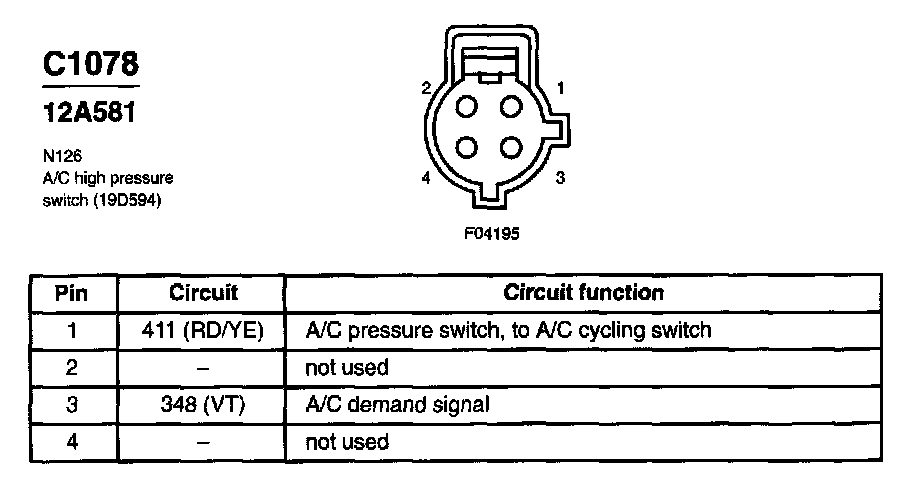

A/C High Pressure Switch
