Test O: Keyless Entry Keypad Illumination Inop - Using 6 Wire Keypad
Test O: Keyless Entry Keypad Illumination Inop - Using 6 Wire Keypad

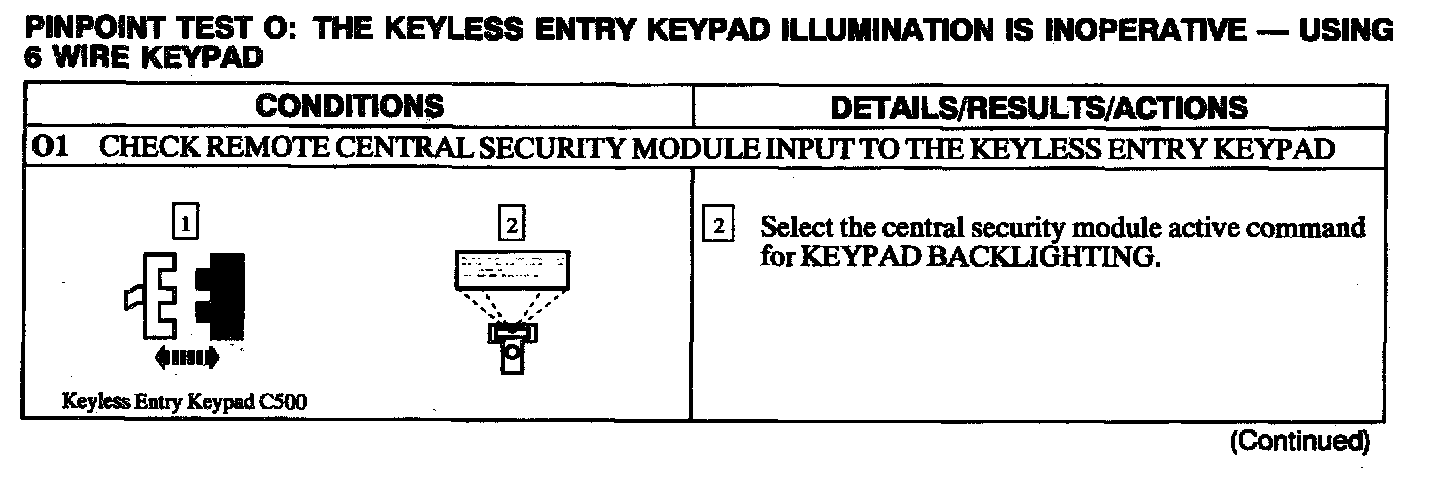

O1:

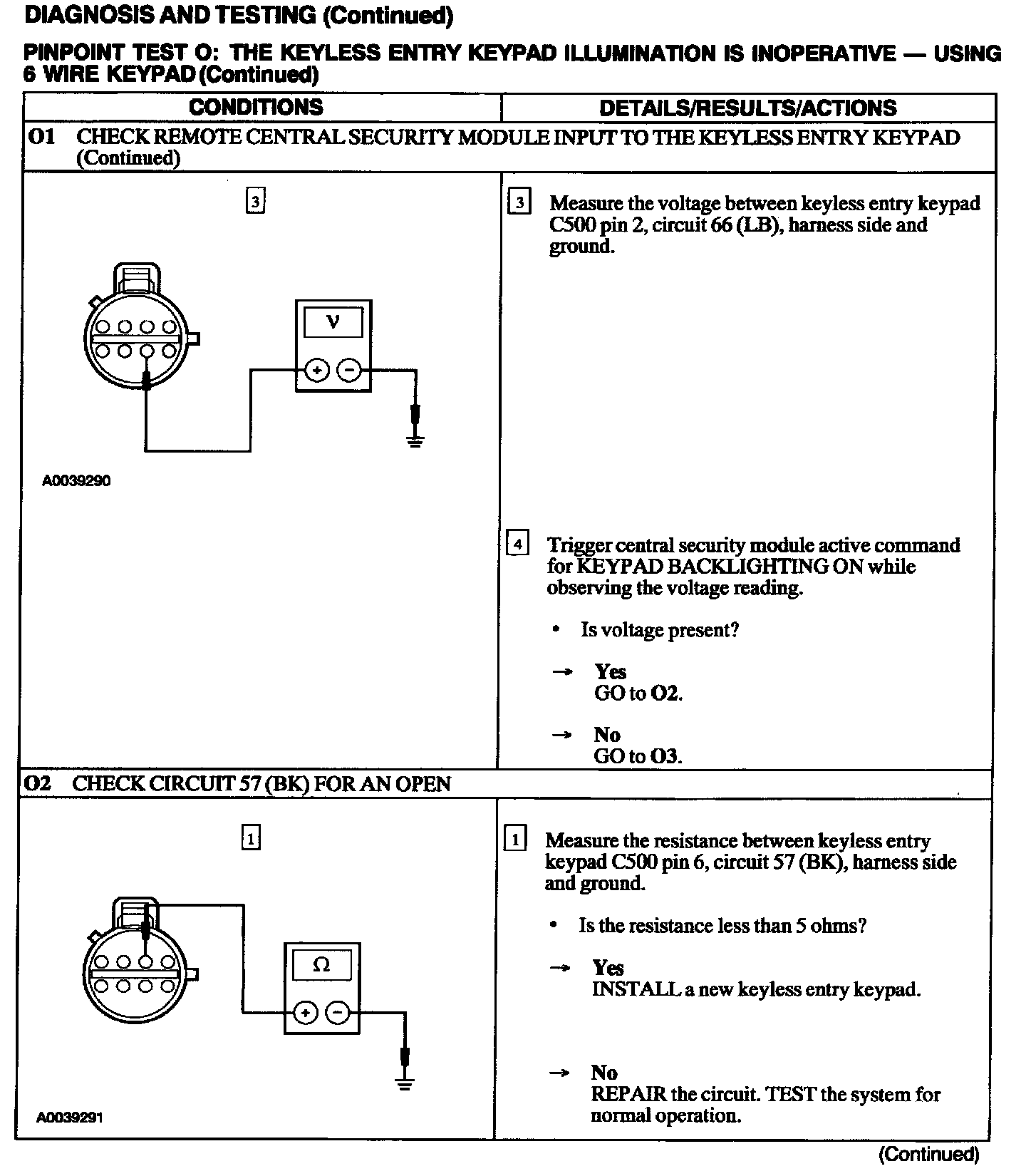

O1 - O2:

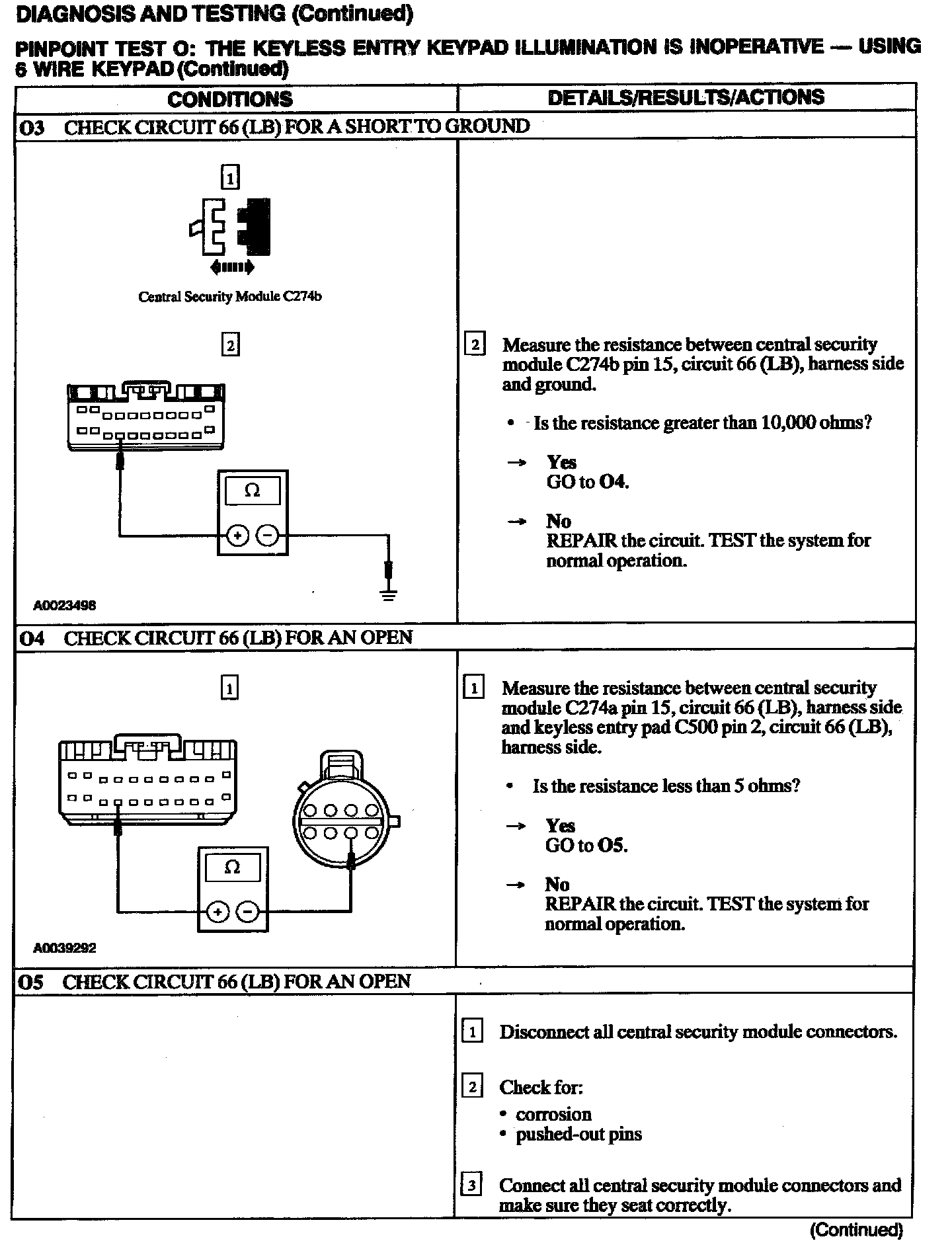

O3 - O5:

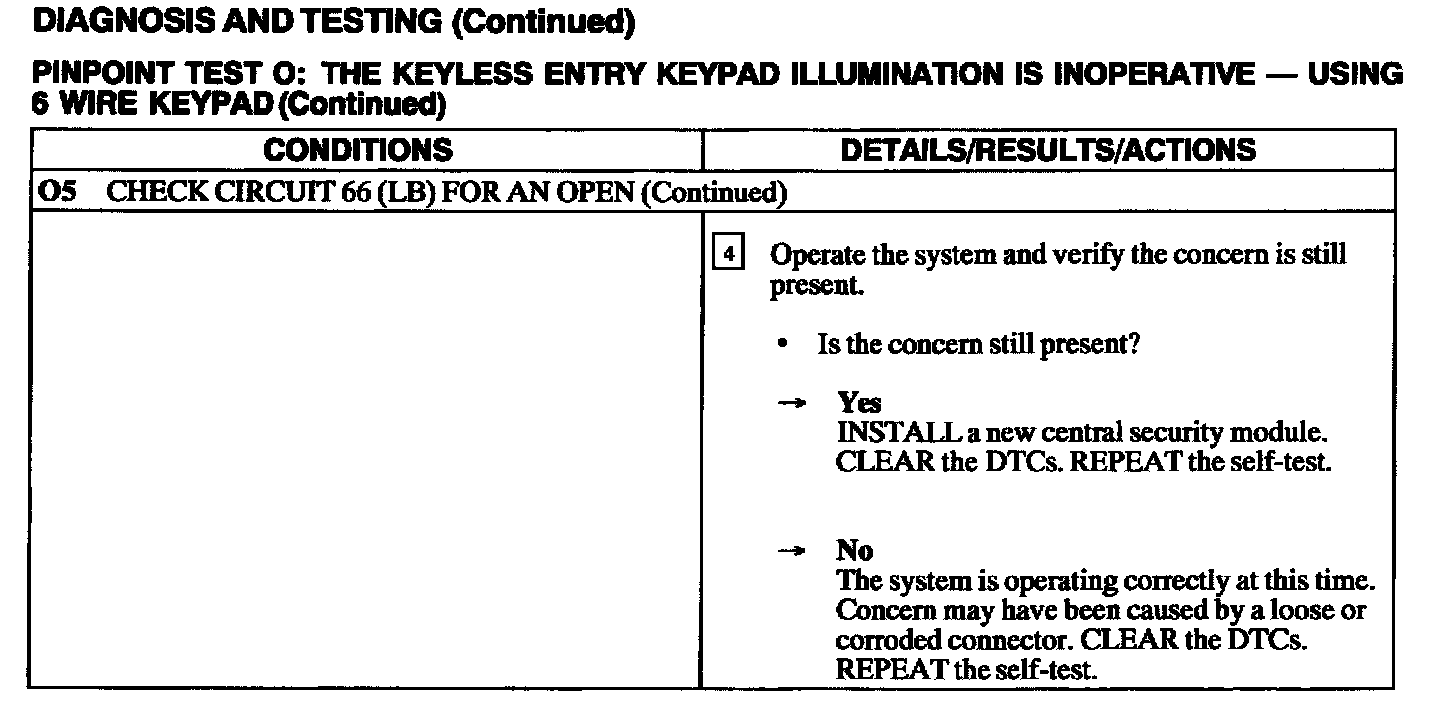

O5:
