Bi-Fuel Models

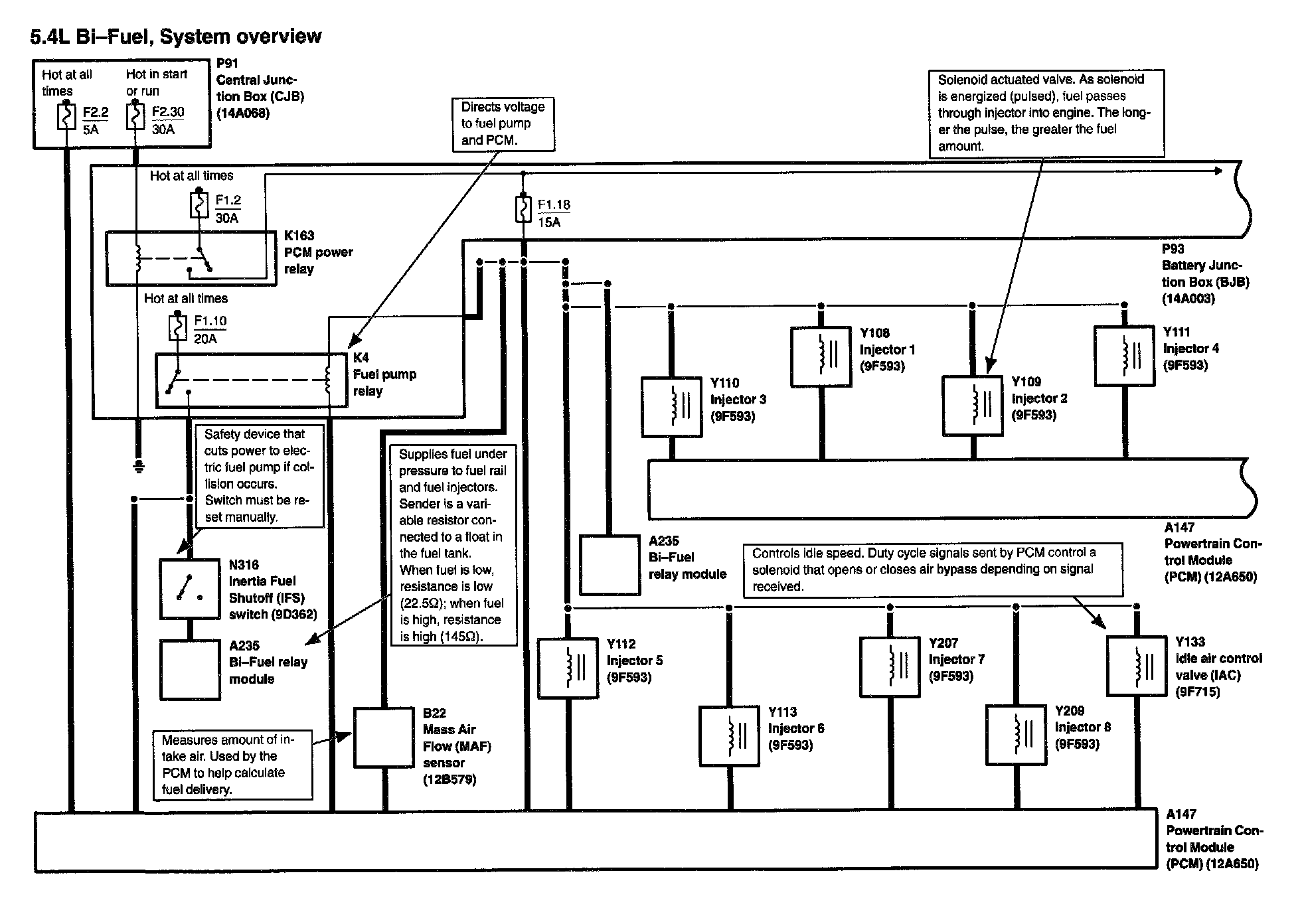

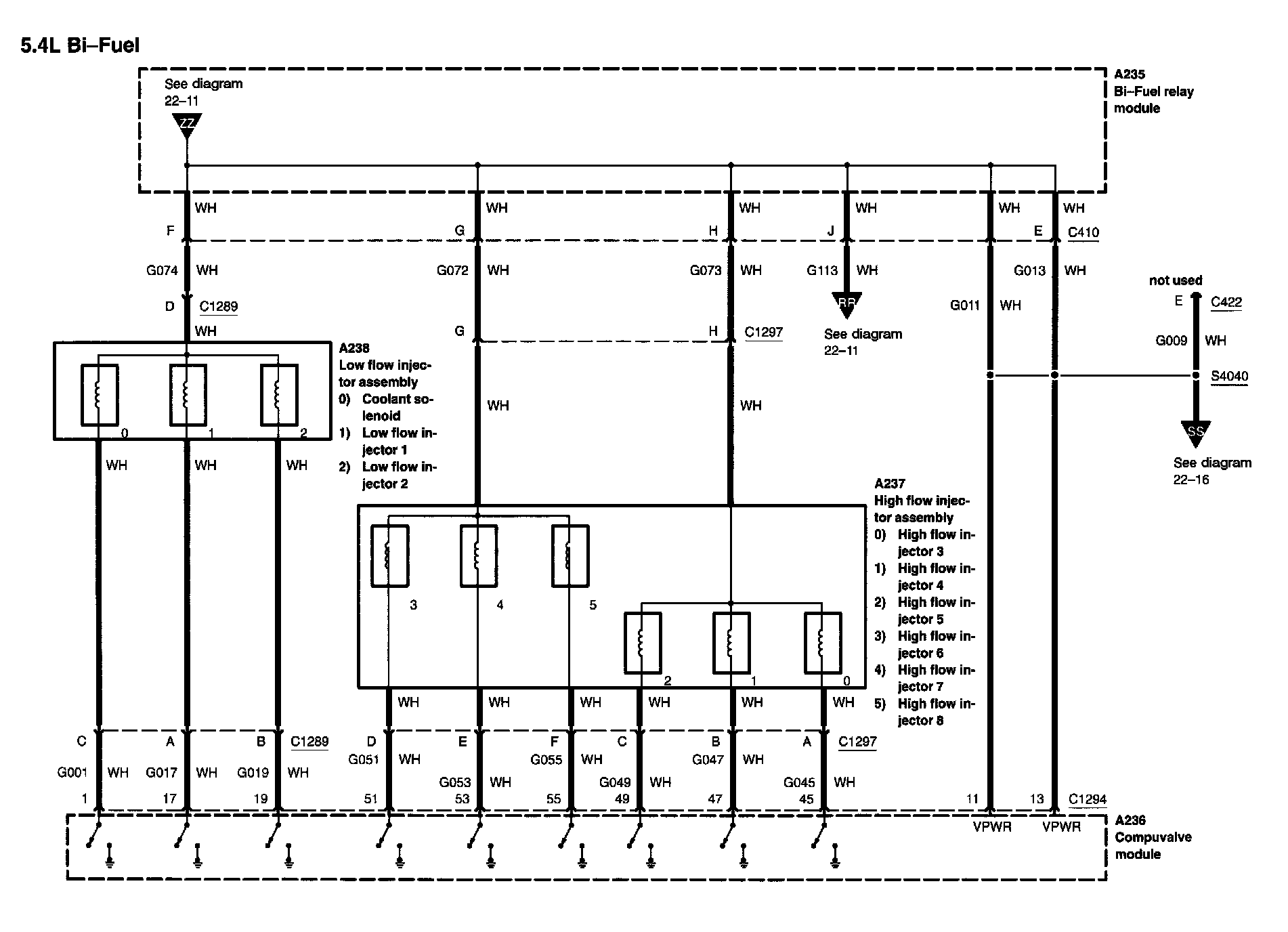

Diagram 22-1:

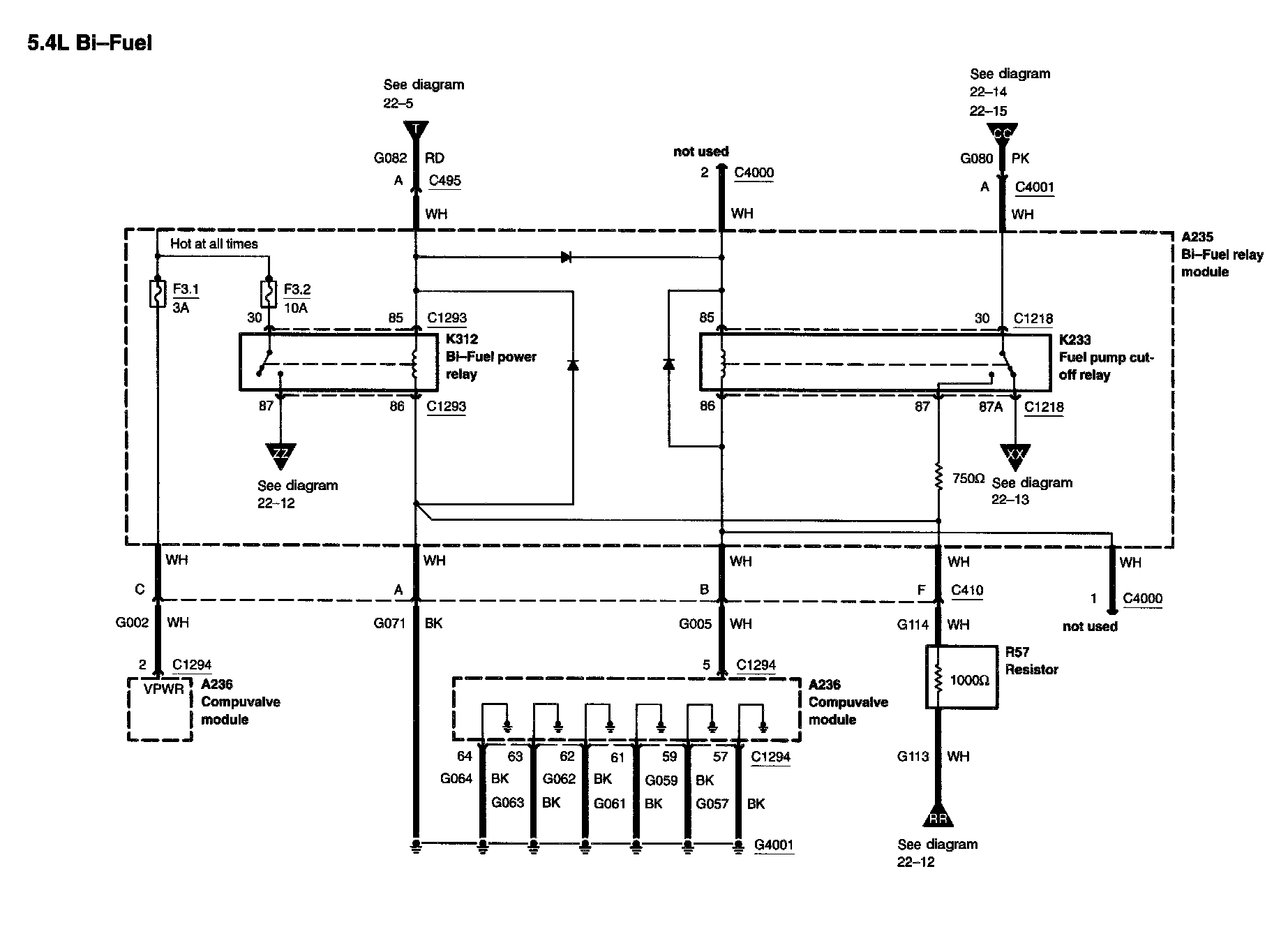

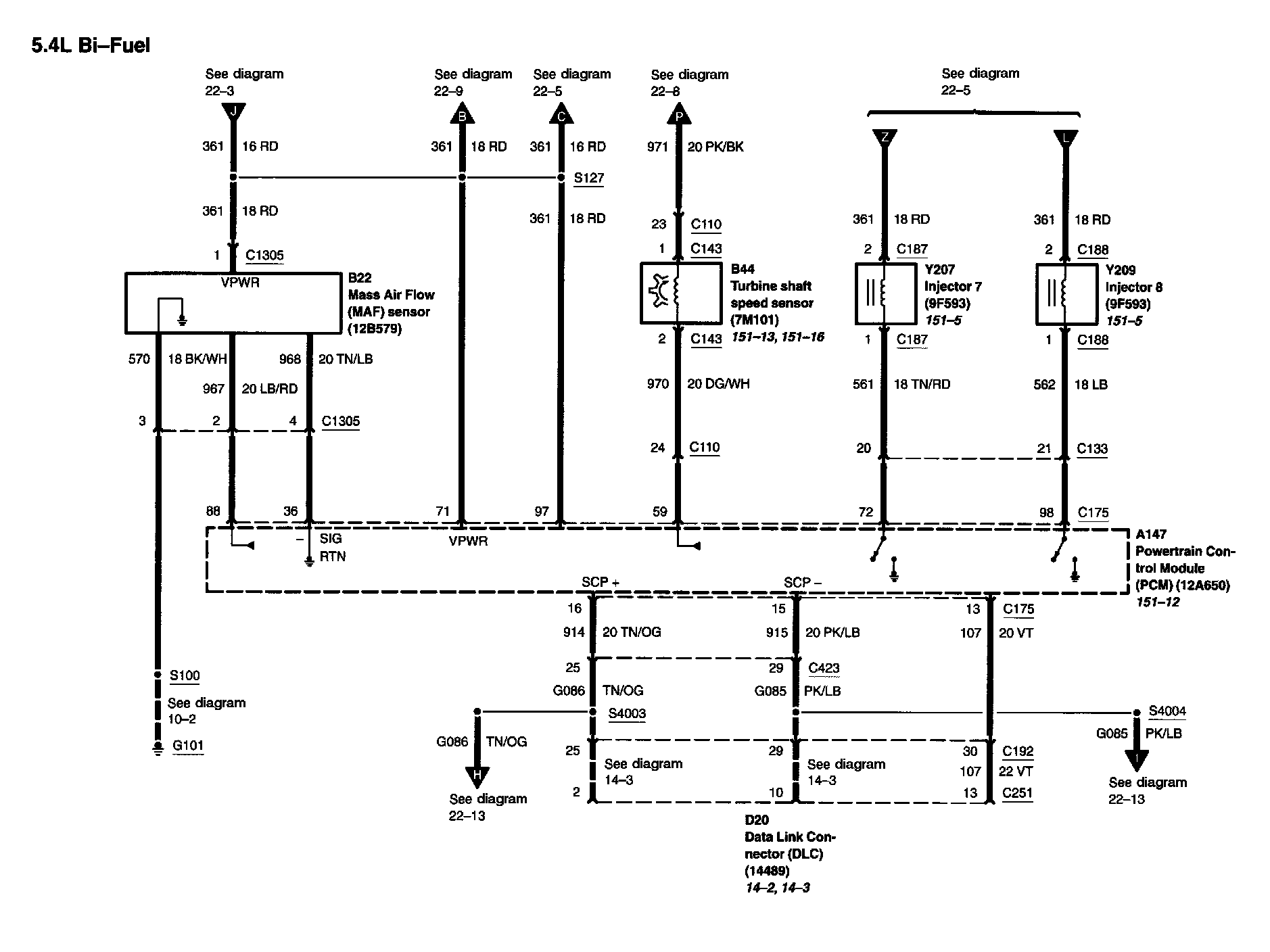

Diagram 22-2:

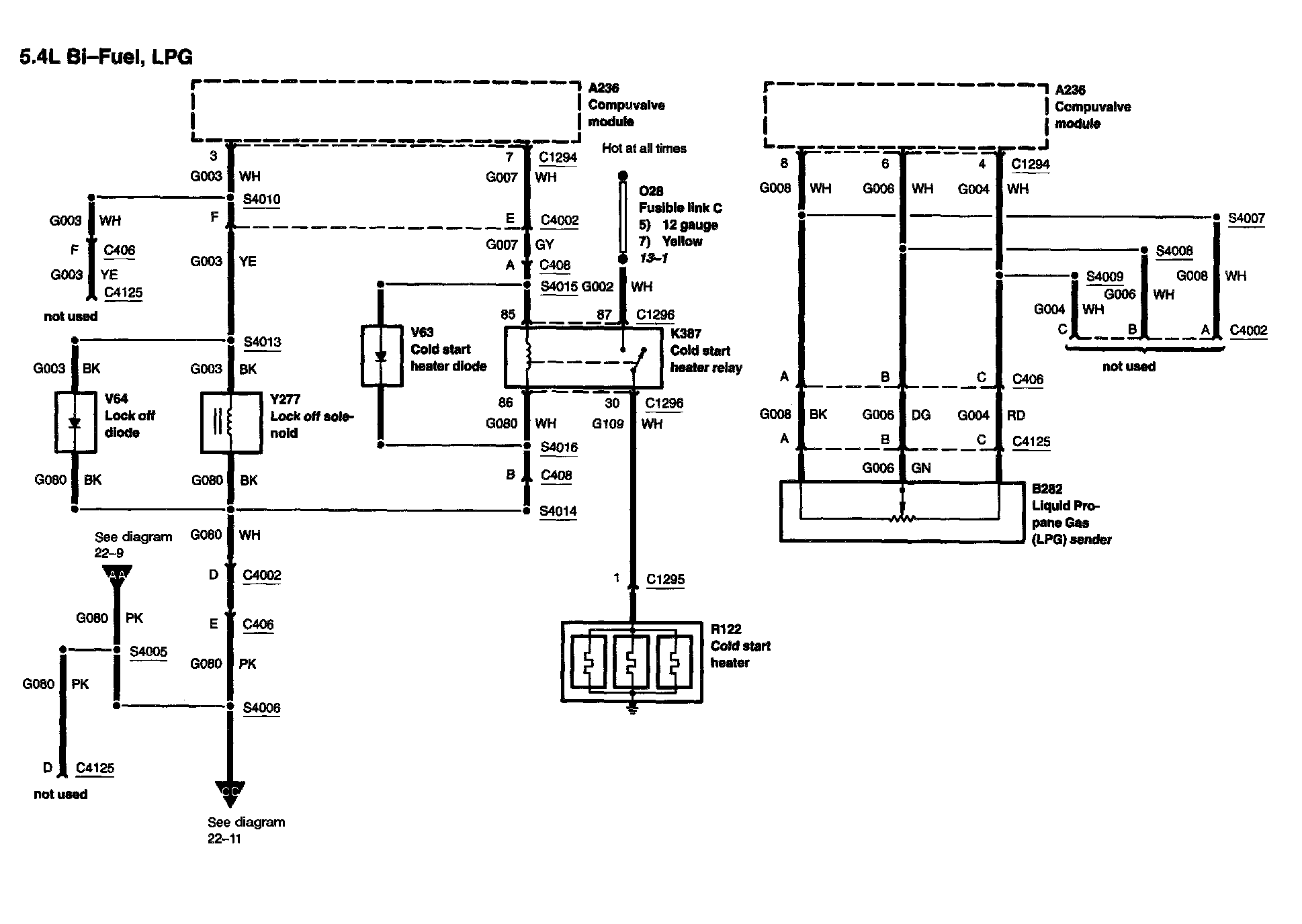

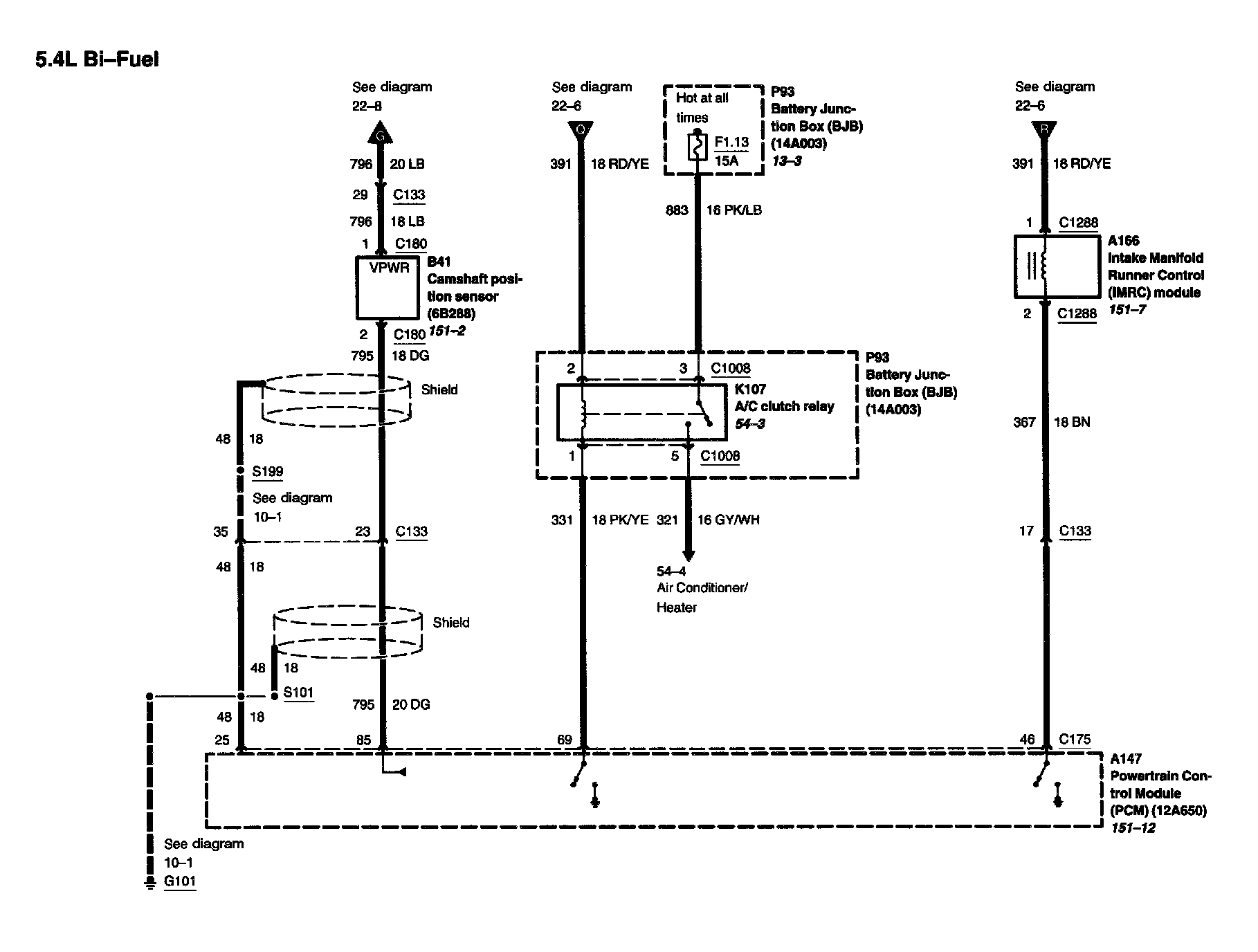

Diagram 22-3:

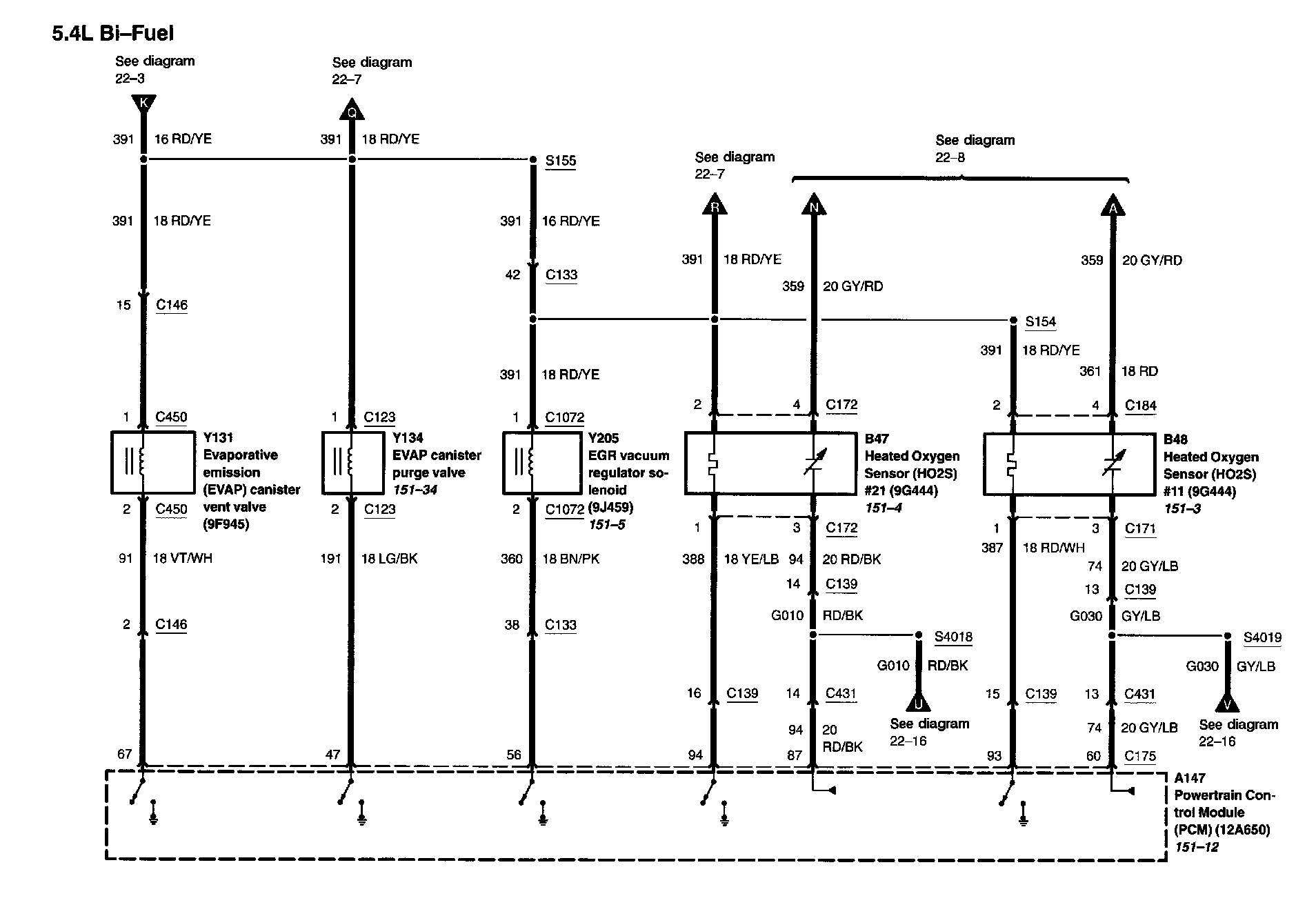

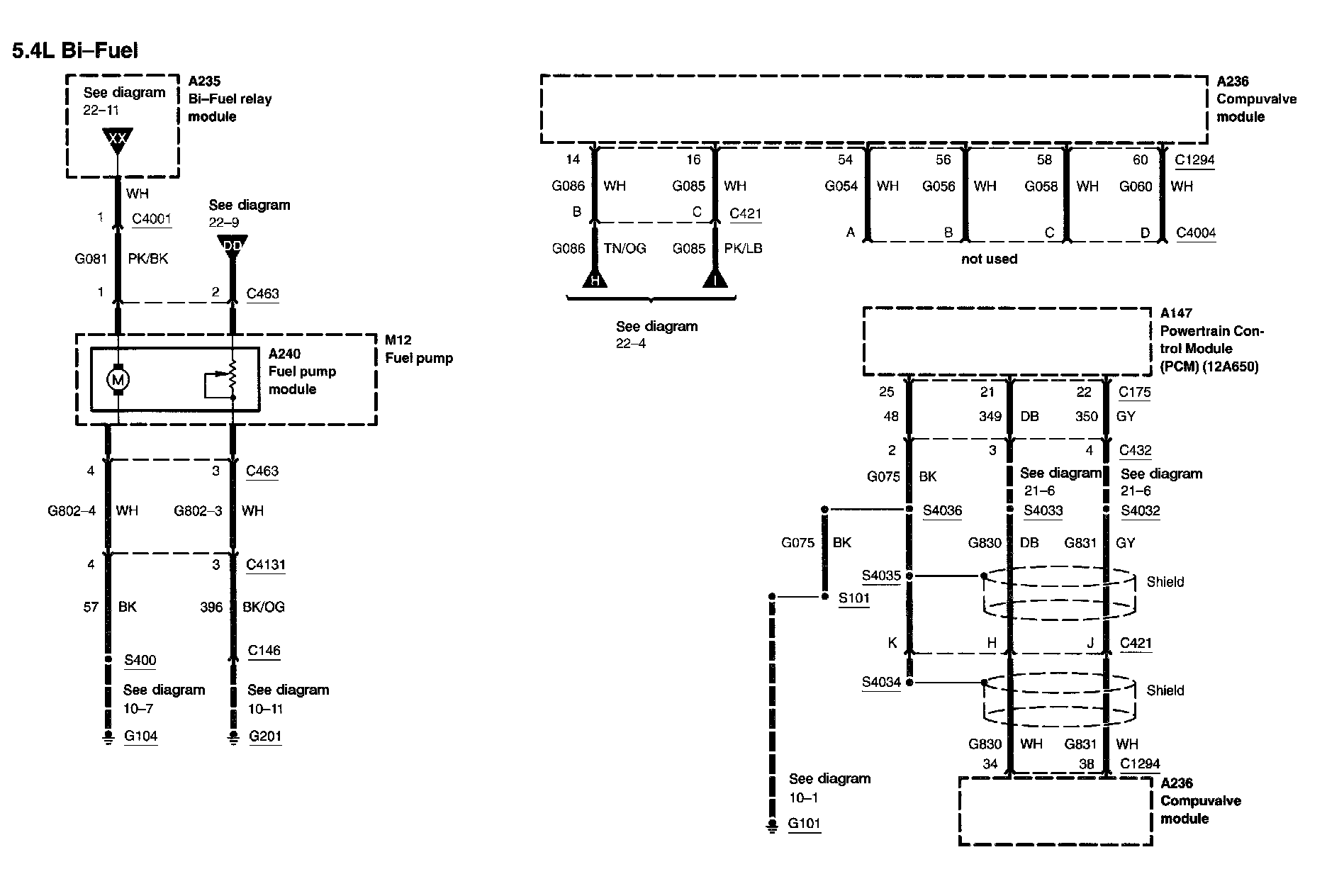

Diagram 22-4:

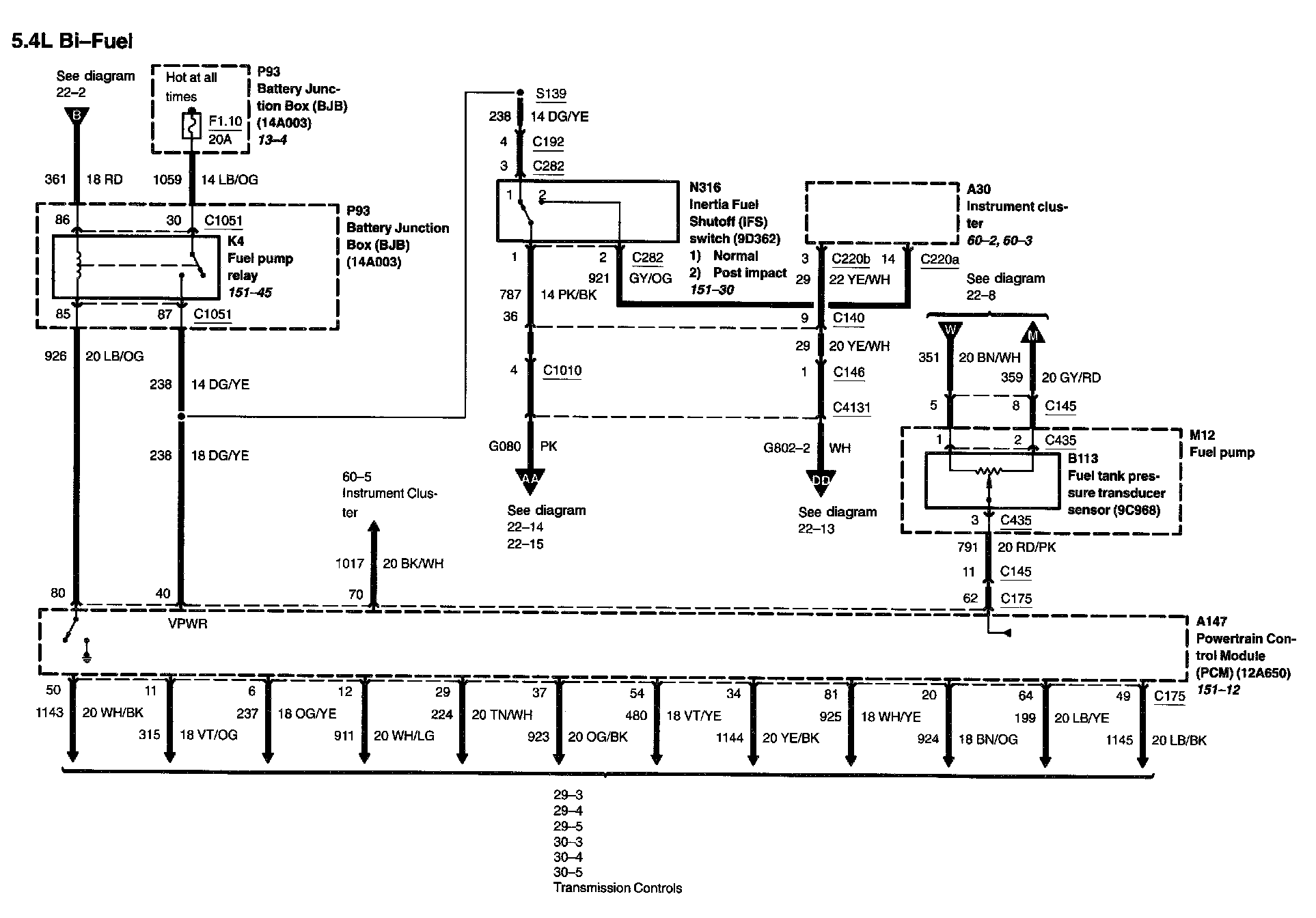

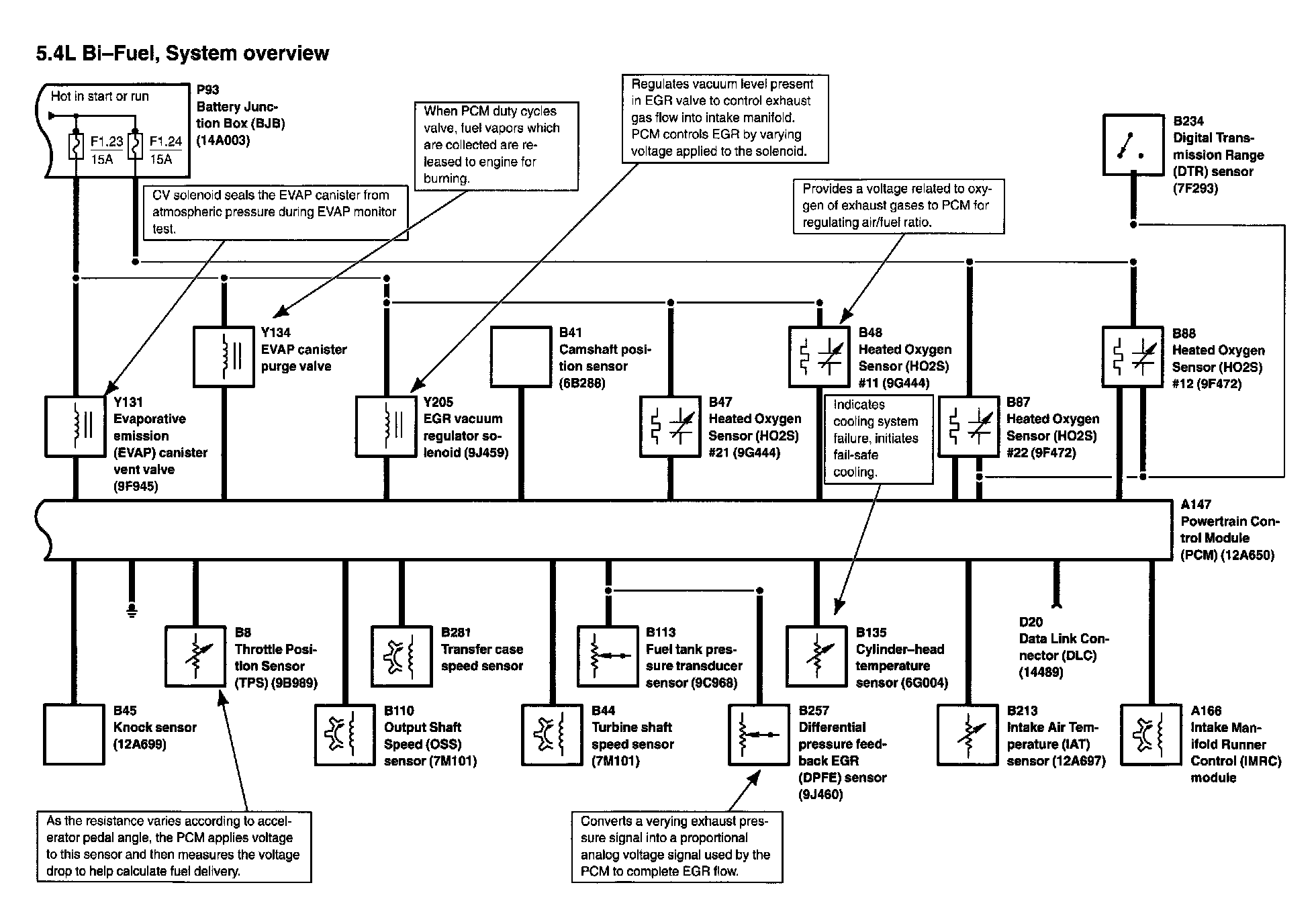

Diagram 22-5:

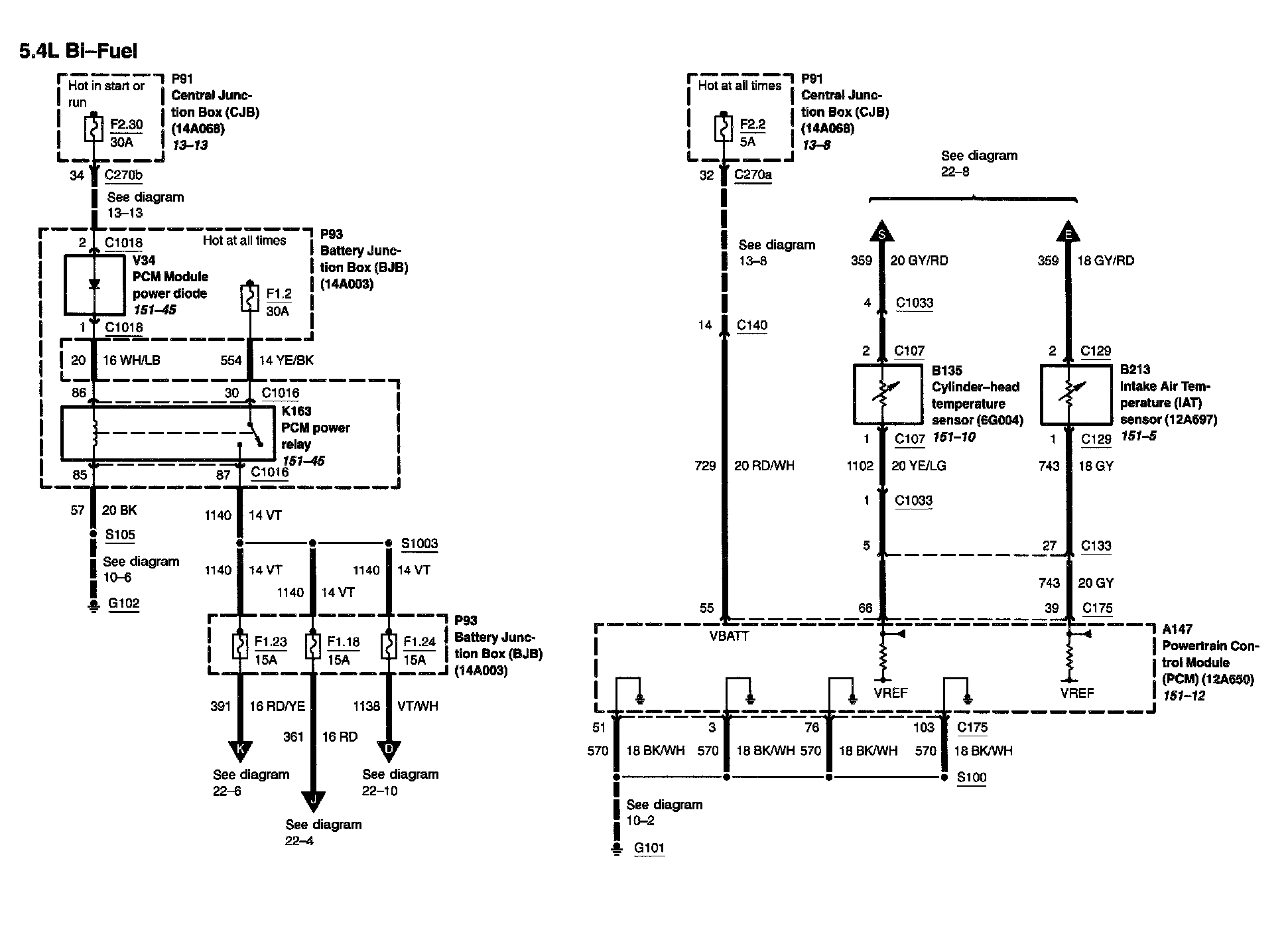

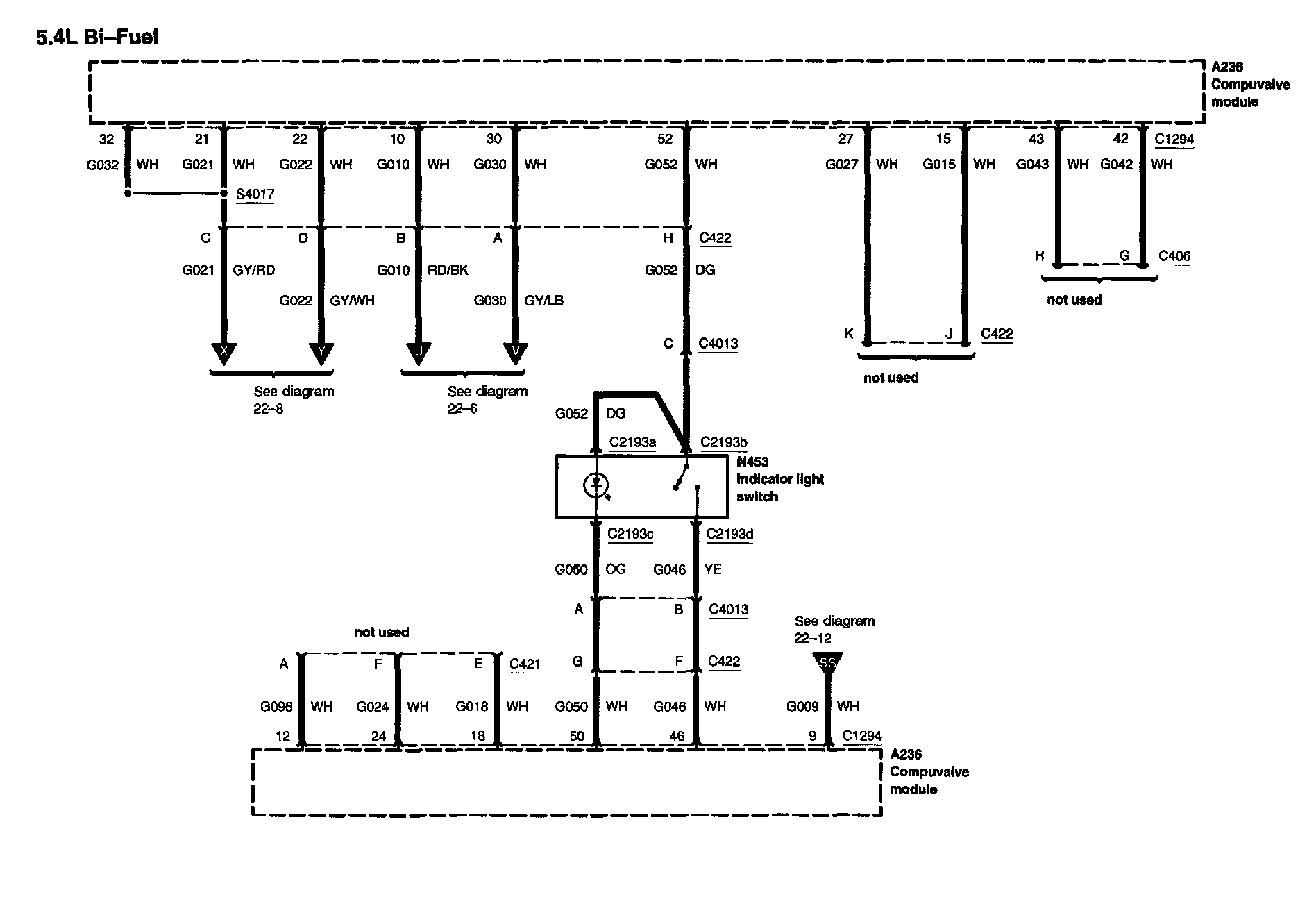

Diagram 22-6:

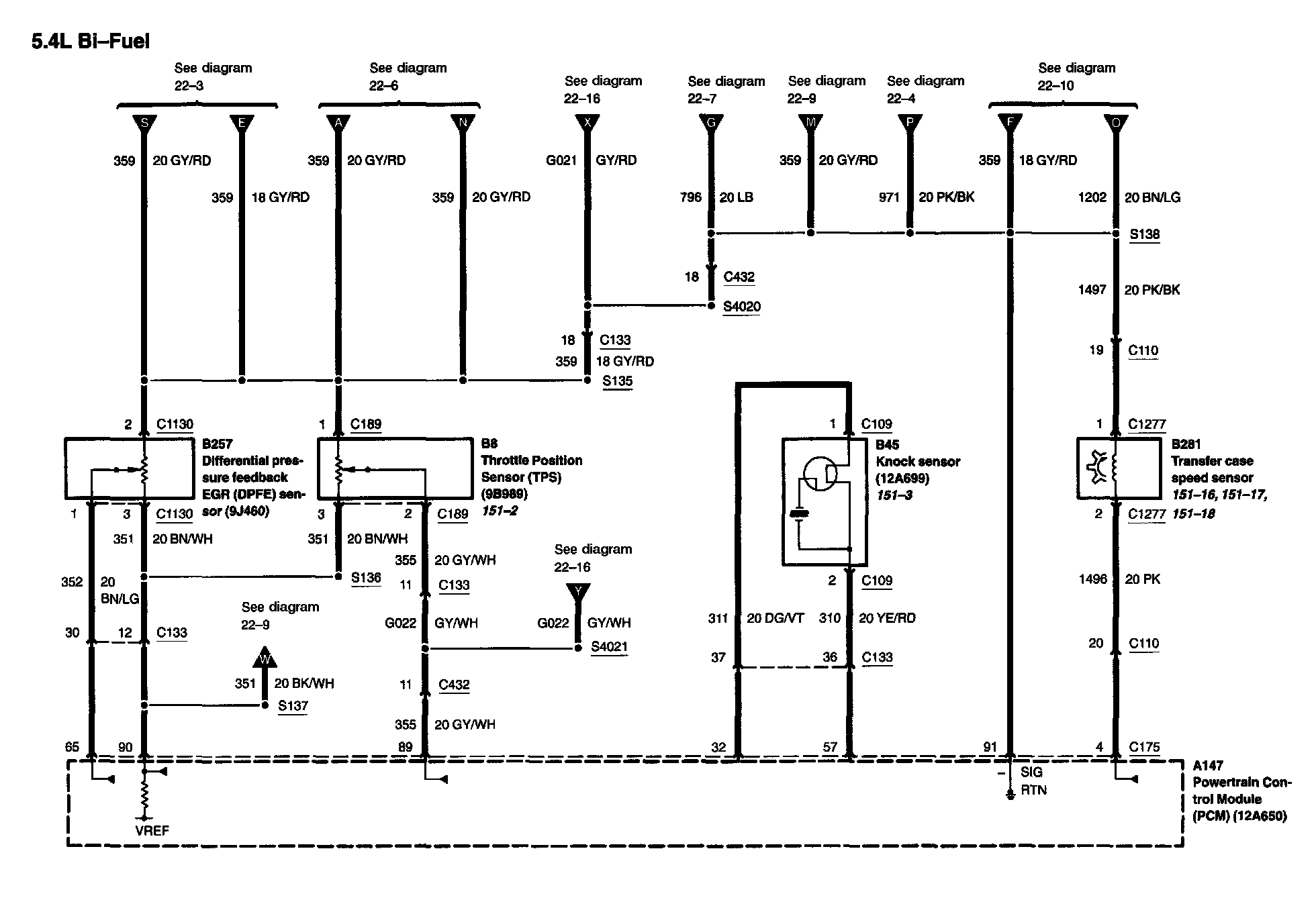

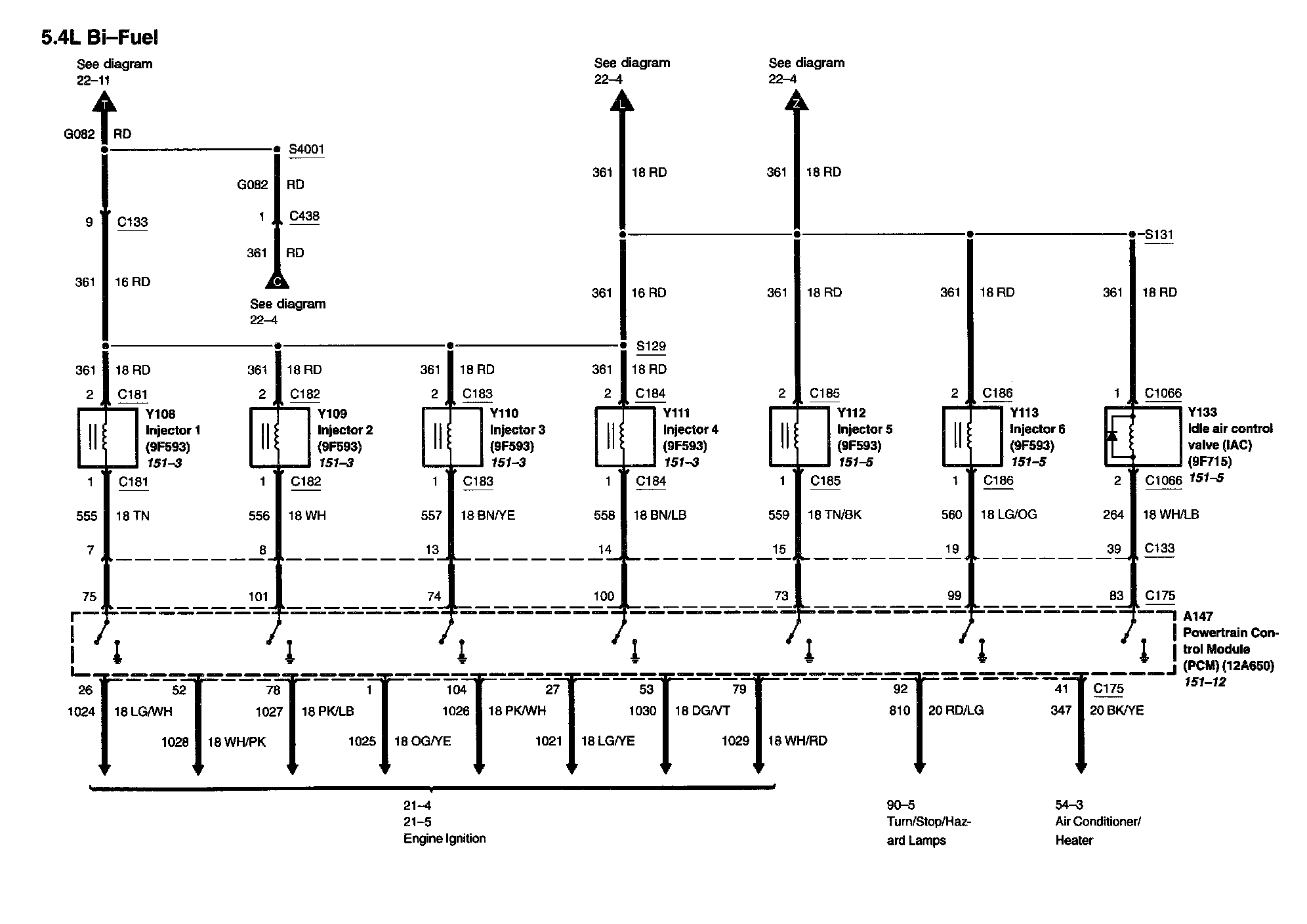

Diagram 22-7:

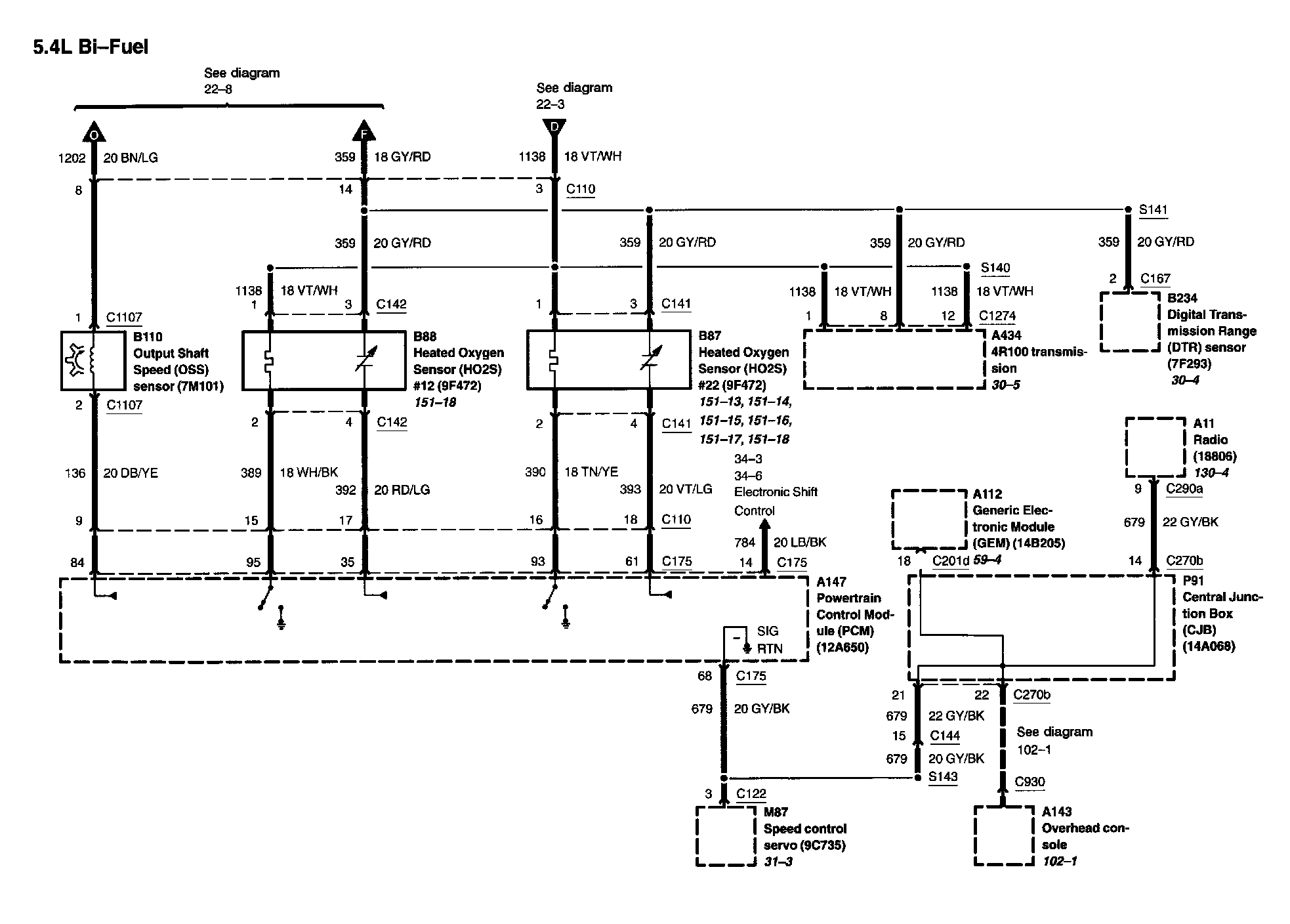

Diagram 22-8:






Diagram 22-9:






Diagram 22-10:






Diagram 22-11:






Diagram 22-12:






Diagram 22-13:






Diagram 22-15:






Diagram 22-16:
