Transmission Mount: Service and Repair

Transmission Insulator and Retainer

Removal

NOTE: 4x2 procedure shown. 4x4 similar, front drive shaft will need to be removed.

1. Raise and support the vehicle.





2. NOTE: To maintain initial driveshaft balance, mark the rear driveshaft yoke and axle flange so they may be installed in their original alignment.

Mark the rear driveshaft.





3. Remove the rear driveshaft.

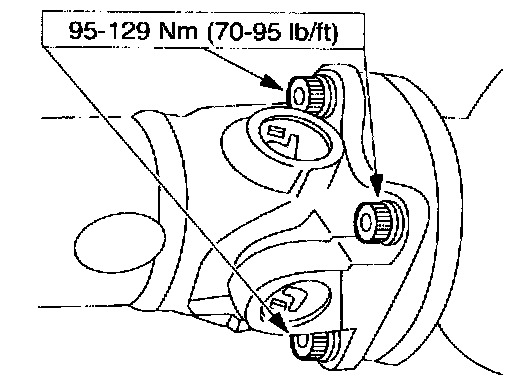

1 Remove the bolts.
2 Remove the rear driveshaft.





4. Remove the transmission mount nuts.





5. Raise and support the transmission.





6. Remove the transmission mount.
1 Remove the screws.
2 Remove the transmission mount.

Installation





1. Install the transmission mount.
1 Position the transmission mount on the extension housing.
2 Install the transmission mount-to-extension housing screws.





2. Install the transmission mount into the crossmember and tighten the nuts.





3. NOTE: Align the driveshaft with the marks made during removal to ensure correct balance.

Align and install the rear driveshaft.





4. Install the bolts.
5. Lower the vehicle.
