Child Seat Tether Attachment: Service and Repair

REMOVAL

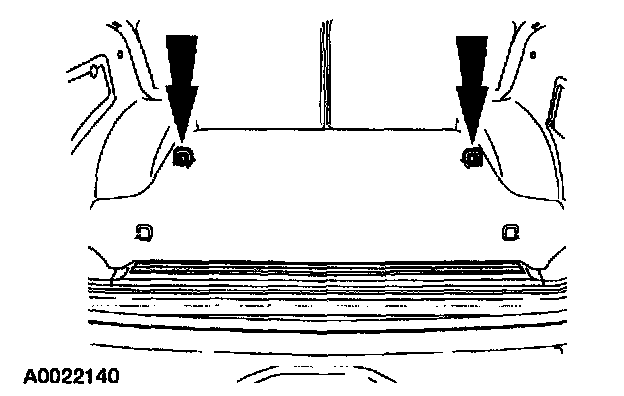

1. Position the carpet back, in the rear storage area, to access the child safety seat tether anchors (cargo tie-downs).

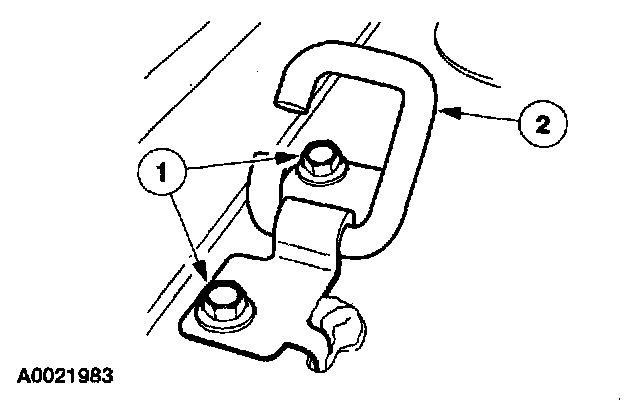

2. Remove the child safety seat tether anchor (cargo tie-down).
1 Remove the bolts.
2 Remove the child safety seat tether anchor (cargo tie-down).

INSTALLATION

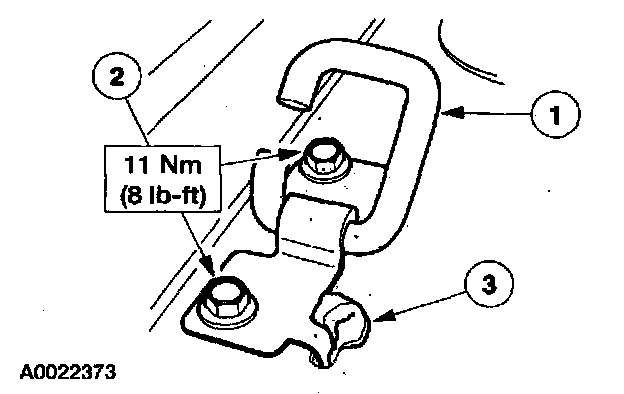

1. Install the child safety seat tether anchor (cargo tie-down).
1 Position the child safety seat tether anchor (cargo tie-down).
2 Install the bolts.
3 Apply Ultra Silicone Sealant F7TZ-19554-AA or equivalent.

NOTE: Rework the sheet metal to its original condition and structural integrity.







2. Position the carpet back in the rear storage area.
^ The child safety seat tether anchors (cargo tie-downs) must be positioned through the openings in the carpet, allowing accessibility.
