Passenger Air Bag Module






SPECIAL TOOL(S)

REMOVAL

WARNING:
^ ALWAYS WEAR SAFETY GLASSES WHEN REPAIRING AN AIR BAG SUPPLEMENTAL RESTRAINT SYSTEM (SRS) VEHICLE AND WHEN HANDLING AN AIR BAG MODULE. THIS WILL REDUCE THE RISK OF INJURY IN THE EVENT OF AN ACCIDENTAL DEPLOYMENT.
^ CARRY A LIVE AIR BAG MODULE WITH THE AIR BAG AND TEAR SEAM POINTED AWAY FROM YOUR BODY. THIS WILL REDUCE THE RISK OF INJURY IN THE EVENT OF AN ACCIDENTAL DEPLOYMENT.
^ DO NOT SET A LIVE AIR BAG MODULE DOWN WITH THE DEPLOYMENT DOOR FACE DOWN. THIS WILL REDUCE THE RISK OF INJURY IN THE EVENT OF AN ACCIDENTAL DEPLOYMENT.
^ AFTER DEPLOYMENT, THE AIR BAG SURFACE CAN CONTAIN DEPOSITS OF SODIUM HYDROXIDE, A PRODUCT OF THE GAS GENERANT COMBUSTION THAT IS IRRITATING TO THE SKIN. WASH YOUR HANDS WITH SOAP AND WATER AFTERWARDS.
^ NEVER PROBE THE CONNECTORS ON THE AIR BAG MODULE. DOING SO CAN RESULT IN AIR BAG DEPLOYMENT, WHICH CAN RESULT IN PERSONAL INJURY.
^ AIR BAG MODULES WITH DISCOLORED OR DAMAGED DEPLOYMENT DOORS MUST BE INSTALLED NEW, NOT REPAINTED.
^ THE RESTRAINT SYSTEM DIAGNOSTIC TOOL IS FOR RESTRAINT SYSTEM SERVICE ONLY. REMOVE FROM VEHICLE PRIOR TO ROAD USE. FAILURE TO REMOVE COULD RESULT IN INJURY AND POSSIBLE VIOLATION OF VEHICLE SAFETY STANDARDS.

NOTE:
^ Restraint system diagnostic tools MUST be installed under the seats in the side airbag and safety belt pretensioner (if equipped) to floor connectors.
^ Repair is made by installing a new part only. If the new part does not correct the condition, install the original part and perform the diagnostic procedure again.

All vehicles
1. Disconnect the battery ground cable and wait at least one minute.

WARNING: TO AVOID ACCIDENTAL DEPLOYMENT AND POSSIBLE PERSONAL INJURY, THE BACKUP POWER SUPPLY MUST BE DEPLETED BEFORE REPAIRING OR REPLACING ANY FRONT OR SIDE AIR BAG SUPPLEMENTAL RESTRAINT SYSTEM (SRS) COMPONENTS AND BEFORE SERVICING, REPLACING, ADJUSTING OR STRIKING COMPONENTS NEAR THE FRONT OR SIDE AIR BAG SENSORS, SUCH AS DOORS, INSTRUMENT PANEL, CONSOLE, DOOR LATCHES, STRIKERS, SEATS AND HOOD LATCHES.

THE SIDE AIR BAG SENSORS ARE LOCATED AT OR NEAR THE BASE OF THE B-PILLAR.

TO DEPLETE THE BACKUP POWER SUPPLY ENERGY, DISCONNECT THE BATTERY GROUND CABLE AND WAIT AT LEAST ONE MINUTE. BE SURE TO DISCONNECT AUXILIARY BATTERIES AND POWER SUPPLIES (IF EQUIPPED).

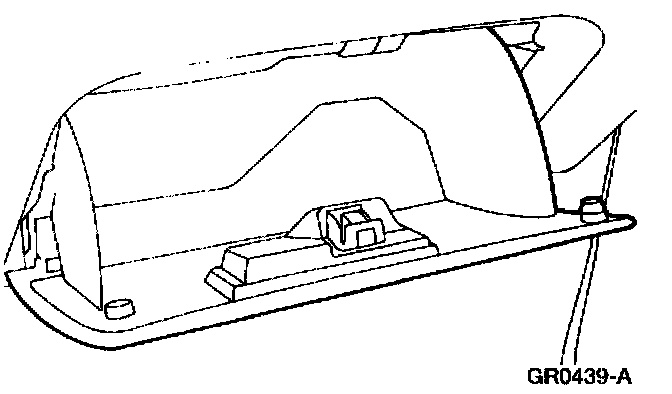

2. Open the glove compartment door past its stops to access the mounting screws.

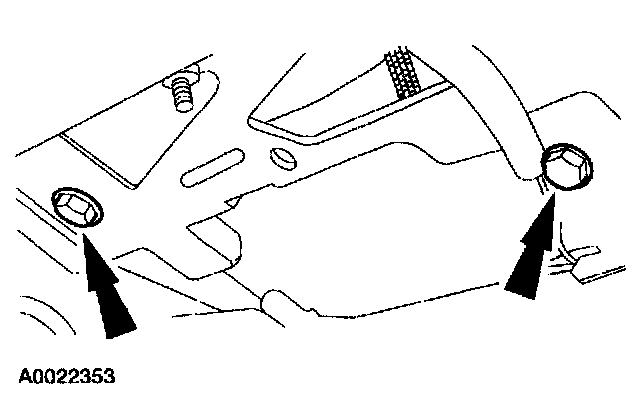

3. Remove the two screws.







4. Reaching one hand into the glove box opening, push out on the passenger air bag module and separate it from the instrument panel. Note the wire harness routing for installation.

CAUTION: Do not handle the passenger air bag module by grabbing the edges of the deployment door.







5. Disconnect the electrical connector and remove the passenger air bag module.

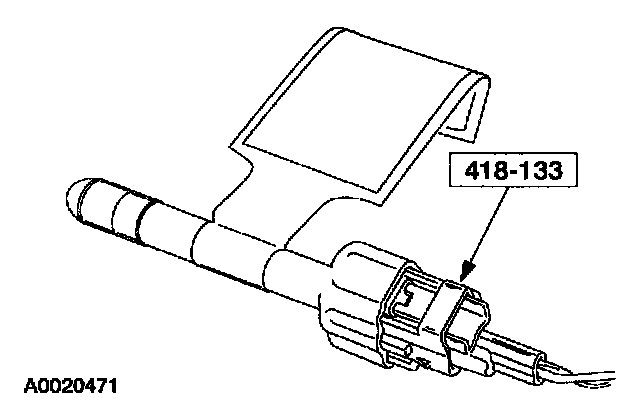

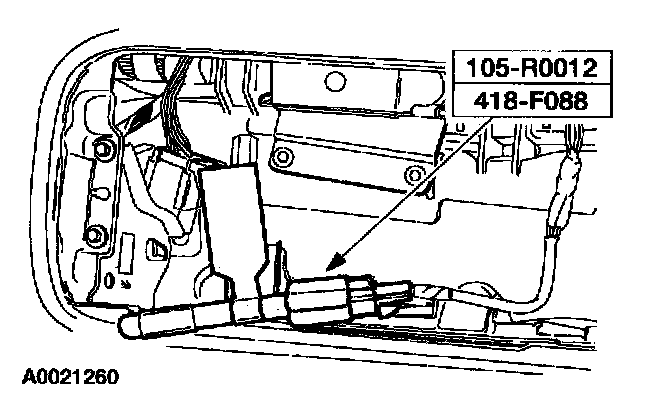

6. Attach the restraint system diagnostic tool to the vehicle harness side of the passenger air bag electrical connector.







7. Remove the retaining screws and position the hood release handle out of the way.







8. Remove the lower steering column opening finish panel.
1 Remove the two retaining screws from the lower steering column opening finish panel.

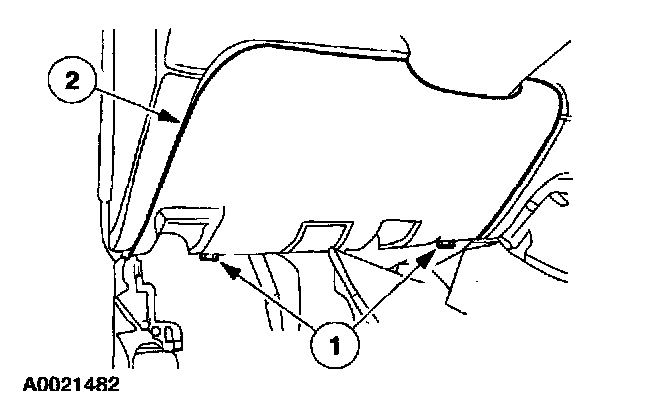

2 Pull Out to release the retaining clips and remove the lower steering column opening finish panel.

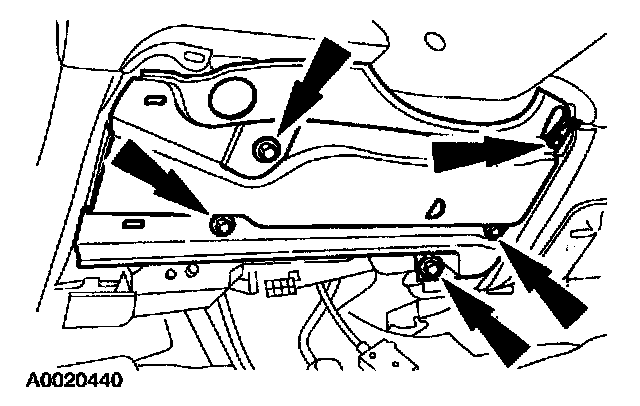

9. Remove the bolts and the lower steering column opening finish panel reinforcement.

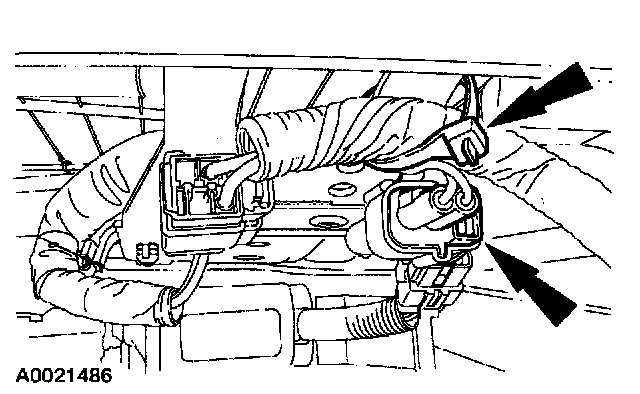

10. Disconnect the clockspring electrical connector at the base of the steering column.







11. Attach the restraint system diagnostic tool to the vehicle harness side of the clockspring electrical connector at the base of the steering column.

Vehicles with seat side air bags and power driver seat
12. Connect the battery ground cable.

Vehicles with seat side air bags
13. Move and tilt the front seats to their highest and most forward position.

Vehicles with seat side air bags and power driver seat
14. Disconnect the battery ground cable and wait at least one minute.

WARNING: TO AVOID ACCIDENTAL DEPLOYMENT AND POSSIBLE PERSONAL INJURY, THE BACKUP POWER SUPPLY MUST HE DEPLETED BEFORE REPAIRING OR REPLACING ANY FRONT OR SIDE AIR BAG SUPPLEMENTAL RESTRAINT SYSTEM (SRS) COMPONENTS AND BEFORE SERVICING, REPLACING, ADJUSTING OR STRIKING COMPONENTS NEAR THE FRONT OR SIDE AIR BAG SENSORS, SUCH AS DOORS, INSTRUMENT PANEL, CONSOLE, DOOR LATCHES, STRIKERS, SEATS AND HOOD LATCHES.

THE SIDE AIR BAG SENSORS ARE LOCATED AT OR NEAR THE BASE OF THE B-PILLAR.

TO DEPLETE THE BACKUP POWER SUPPLY ENERGY, DISCONNECT THE BATTERY GROUND CABLE AND WAIT AT LEAST ONE MINUTE. BE SURE TO DISCONNECT AUXILIARY BATTERIES AND POWER SUPPLIES (IF EQUIPPED).

Vehicles with seat side air bags

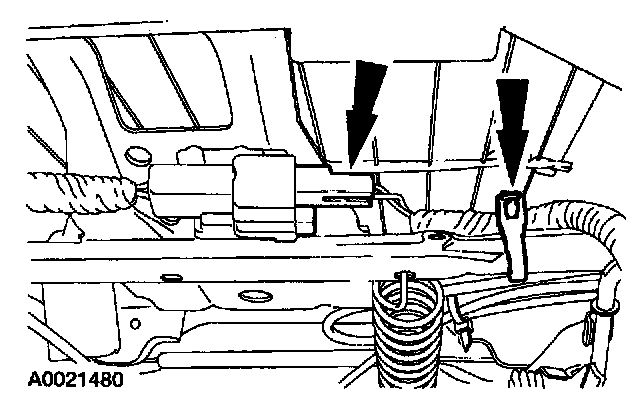

15. Remove the tie-strap and disconnect the driver seat side air bag electrical connector.







16. Attach the restraint system diagnostic tool to the driver seat side air bag floor electrical connector.







17. Remove the tie-strap and disconnect the passenger seat side air bag electrical connector.







18. Attach the restraint system diagnostic tool to the passenger seat side air bag floor electrical connector.

All vehicles
19. Connect the battery ground cable.

Vehicles with seat side air bags
20. Position the front seats rearward.

All vehicles
21. With the restraint system diagnostic tools installed at all deployable devices, prove out the supplemental restraint system (SRS). Prove Out Procedure
22. Disconnect the battery ground cable and wait at least one minute.

INSTALLATION

WARNING: TO REDUCE THE RISK OF SERIOUS PERSONAL INJURY, READ AND FOLLOW ALL WARNINGS, CAUTIONS AND NOTES AT THE BEGINNING OF THE REMOVAL PROCEDURE.

All vehicles







1. Remove the restraint system diagnostic tool from the vehicle harness side of the passenger air bag electrical connector.

WARNING: THE RESTRAINT SYSTEM DIAGNOSTIC TOOL IS FOR RESTRAINT SYSTEM SERVICE ONLY. REMOVE FROM VEHICLE PRIOR TO ROAD USE. FAILURE TO REMOVE COULD RESULT IN INJURY AND POSSIBLE VIOLATION OF VEHICLE SAFETY STANDARDS.

NOTE: Make sure the battery ground cable is still disconnected before proceeding with the installation portion of this procedure.







2. Position the passenger air bag module to the Instrument Panel (I/P) and connect the electrical connector.







3. Position the passenger air bag module into the instrument panel. Route the wire harness as noted in removal.

CAUTION: Do not handle the passenger air bag module by grabbing the edges of the deployment door.

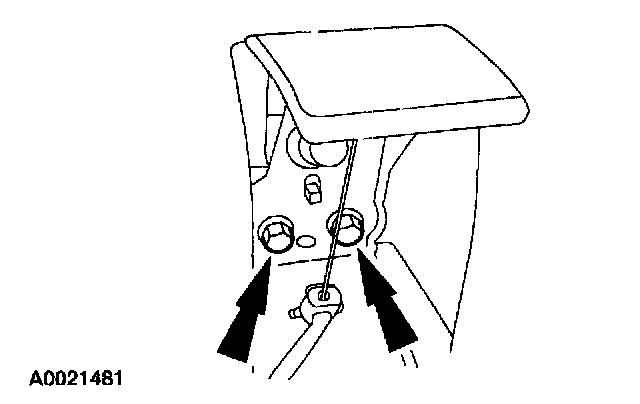

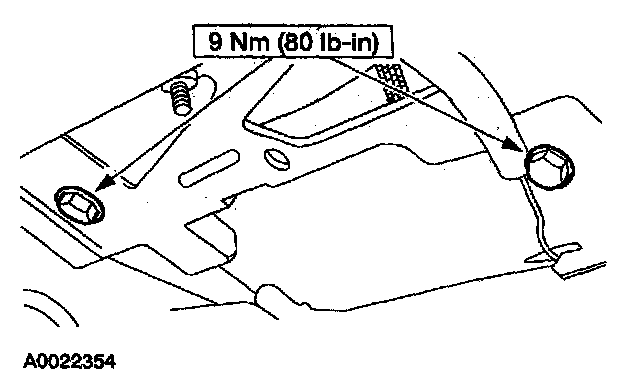

4. Install the two screws.







5. Close the glove compartment door.
6. Connect the battery ground cable.
7. With the restraint system diagnostic tools still installed at the remaining deployable devices, prove out the air bag system. Prove Out Procedure

8. Disconnect the battery ground cable and wait at least one minute.

WARNING: TO AVOID ACCIDENTAL DEPLOYMENT AND POSSIBLE PERSONAL INJURY, THE BACKUP POWER SUPPLY MUST BE DEPLETED BEFORE REPAIRING OR REPLACING ANY FRONT OR SIDE AIR BAG SUPPLEMENTAL RESTRAINT SYSTEM (SRS) COMPONENTS AND BEFORE SERVICING, REPLACING, ADJUSTING OR STRIKING COMPONENTS NEAR THE FRONT OR SIDE AIR BAG SENSORS, SUCH AS DOORS, INSTRUMENT PANEL, CONSOLE, DOOR LATCHES, STRIKERS, SEATS AND HOOD LATCHES.

THE SIDE AIR BAG SENSORS ARE LOCATED AT OR NEAR THE BASE OF THE B-PILLAR.

TO DEPLETE THE BACKUP POWER SUPPLY ENERGY, DISCONNECT THE BATTERY GROUND CABLE AND WAIT AT LEAST ONE MINUTE. BE SURE TO DISCONNECT AUXILIARY BATTERIES AND POWER SUPPLIES (IF EQUIPPED).







9. Remove the restraint system diagnostic tool from the vehicle harness side of the clockspring electrical connector at the base of the steering column.

WARNING: THE RESTRAINT SYSTEM DIAGNOSTIC TOOL IS FOR RESTRAINT SYSTEM SERVICE ONLY. REMOVE FROM VEHICLE PRIOR TO ROAD USE. FAILURE TO REMOVE COULD RESULT IN INJURY AND POSSIBLE VIOLATION OF VEHICLE SAFETY STANDARDS.







10. Connect the clockspring electrical connector at the base of the steering column.

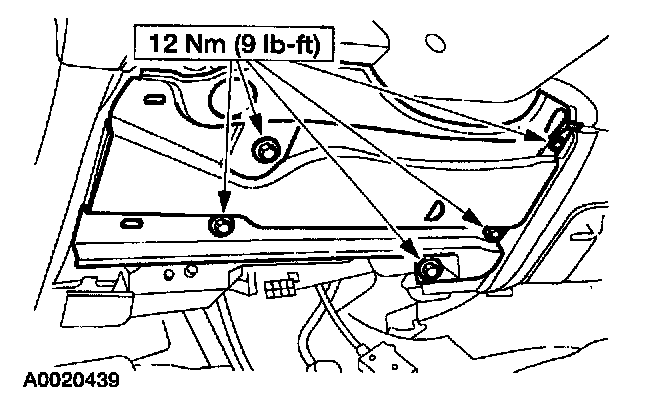

11. Position the lower steering column opening finish panel reinforcement and install the bolts.







12. Install the lower steering column opening finish panel.

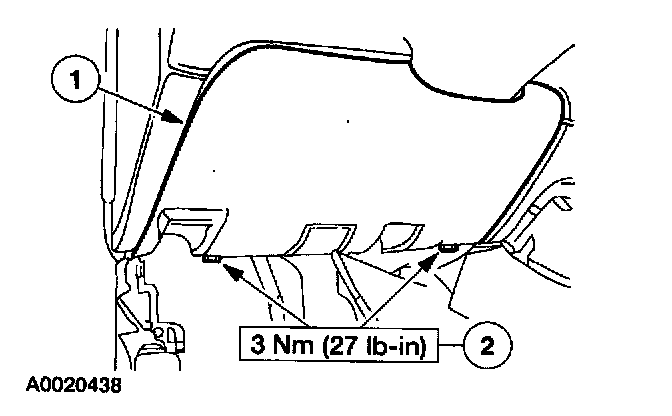

1 Position the lower steering column opening finish panel to the I/P and push in at the top seating the retaining clips.
2 Install the screws.







13. Position the hood release handle and install the screws.

Vehicles with seat side air bags and power driver seat
14. Connect the battery ground cable.

Vehicles with seat side air bags
15. Move and tilt the front seats to their highest and most forward position.

Vehicles with seat side air bags and power driver seat
16. Disconnect the battery ground cable and wait at least one minute.

WARNING: TO AVOID ACCIDENTAL DEPLOYMENT AND POSSIBLE PERSONAL INJURY, THE BACKUP POWER SUPPLY MUST BE DEPLETED BEFORE REPAIRING OR REPLACING ANY FRONT OR SIDE AIR BAG SUPPLEMENTAL RESTRAINT SYSTEM (SRS) COMPONENTS AND BEFORE SERVICING, REPLACING, ADJUSTING OR STRIKING COMPONENTS NEAR THE FRONT OR SIDE AIR BAG SENSORS, SUCH AS DOORS, INSTRUMENT PANEL, CONSOLE, DOOR LATCHES, STRIKERS, SEATS AND HOOD LATCHES.

THE SIDE AIR BAG SENSORS ARE LOCATED AT OR NEAR THE BASE OF THE B-PILLAR.

TO DEPLETE THE BACKUP POWER SUPPLY ENERGY, DISCONNECT THE BATTERY GROUND CABLE AND WAIT AT LEAST ONE MINUTE. BE SURE TO DISCONNECT AUXILIARY BATTERIES AND POWER SUPPLIES (IF EQUIPPED).

Vehicles with seat side air bags







17. Remove the restraint system diagnostic tool from the driver seat side air bag floor electrical connector.







18. Connect the driver seat side air bag electrical connector and tie-strap the wire harness.







19. Remove the restraint system diagnostic tool from the passenger seat side air bag floor electrical connector.







20. Connect the passenger seat side air bag electrical connector and tie-strap the wire harness.

All vehicles
21. Connect the battery ground cable.

Vehicles with seat side air bags
22. Position the front seats rearward.

All vehicles
23. With all the restraint system diagnostic tools removed, prove out the supplemental restraint system (SRS). Prove Out Procedure
