Explorer Sport Trac 4WD V6-4.0L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Switch
>>
Master Window Adjust Switch
Master Window Adjust Switch

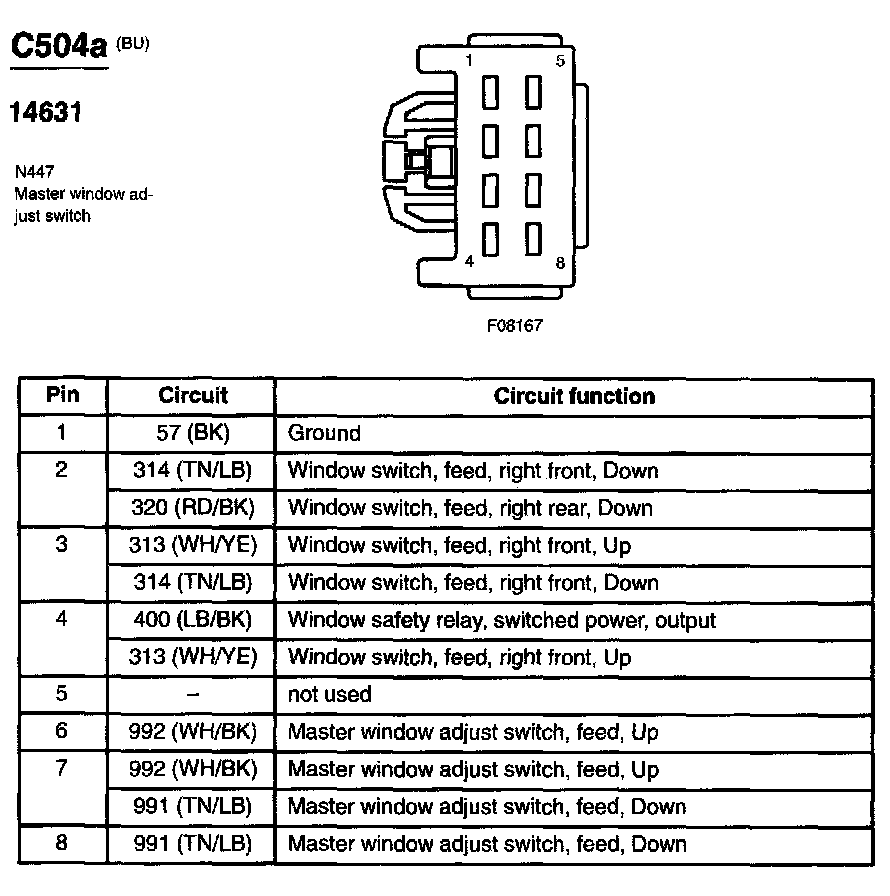

Connector View C504a:

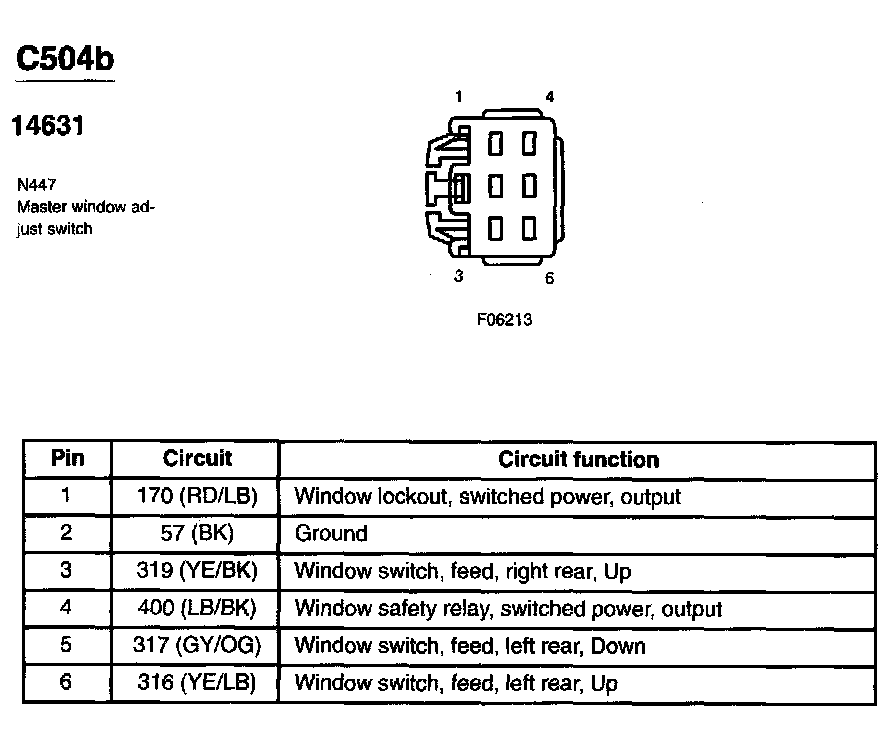

Connector View C504b:
