Home
>>
Ford Truck
>>
2002
>>
Explorer Sport Trac 4WD V6-4.0L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Impact Sensor
>>
Left
Left

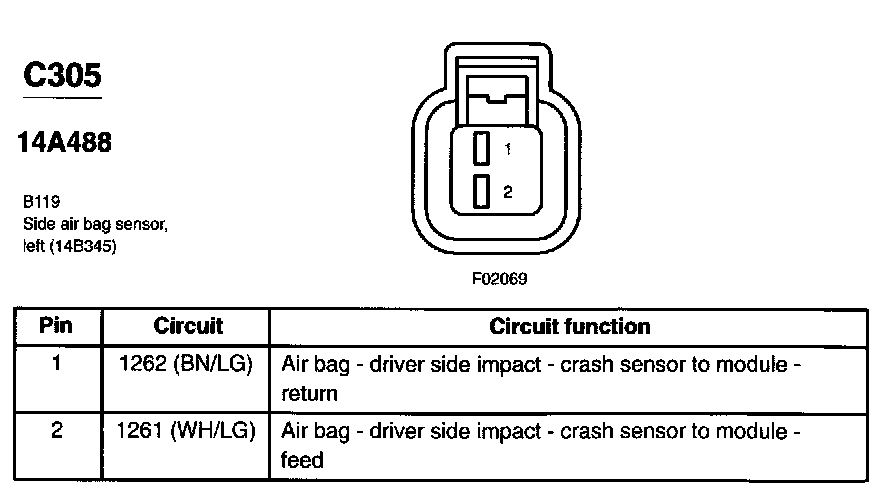

Connector View C305:
