Ford Truck
>>
2002
>>
Explorer Sport Trac 4WD V6-4.0L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C2000-C4171
>>
C2059
C2059

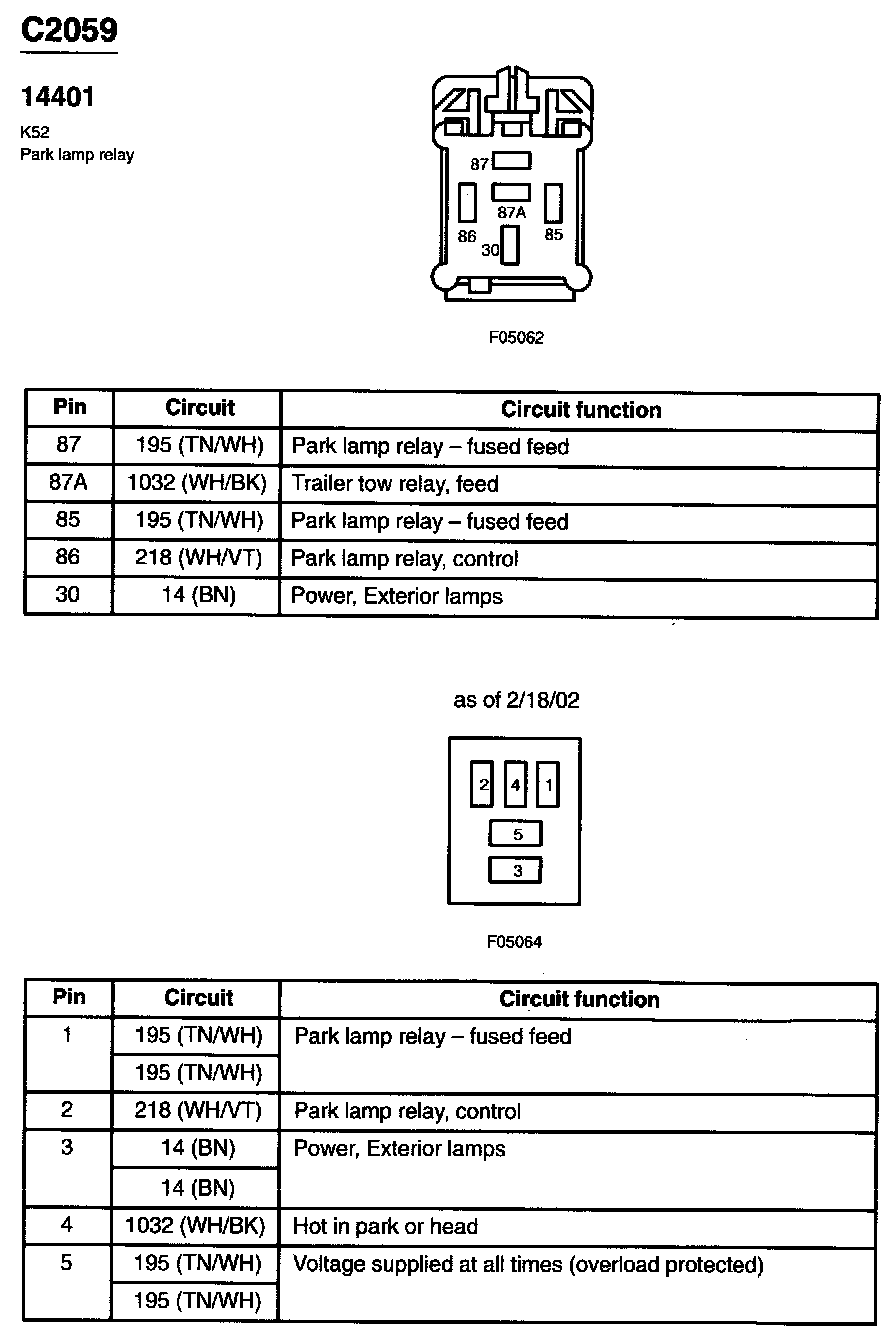

Connector View C2059:
