Home
>>
Ford Truck
>>
2002
>>
Explorer Sport Trac 4WD V6-4.0L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Amplifier, Sound System
>>
Subwoofer
Subwoofer

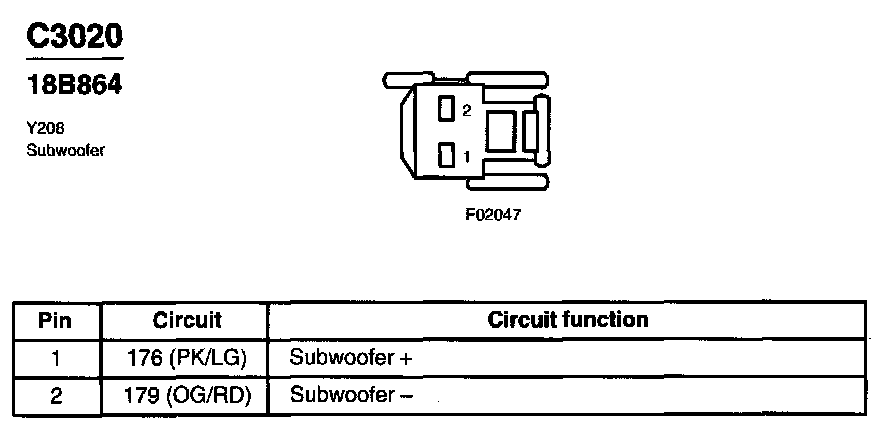

Connector View C3020:
