Brake Pedal Assy: Service and Repair
Brake Pedal And BracketRemoval and Installation
All vehicles
1. NOTE: When removing the stoplight switch, retain the bushing and hairpin clip. They will be required for installation.
Disconnect the brake booster push rod.

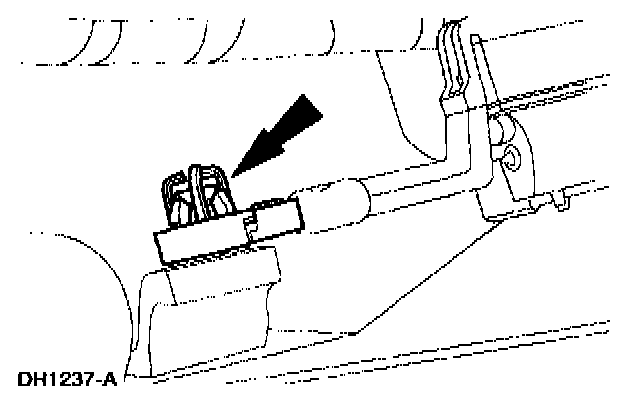

1 Remove the hairpin clip.
2 Separate the stoplight switch and the brake booster push rod from the brake pedal pin.
3 Remove the brake booster push rod bushing.
Vehicles with manual transmission
2. Disconnect the clutch master cylinder push rod.
3. Disconnect the Clutch Pedal Position Switch (CPP).

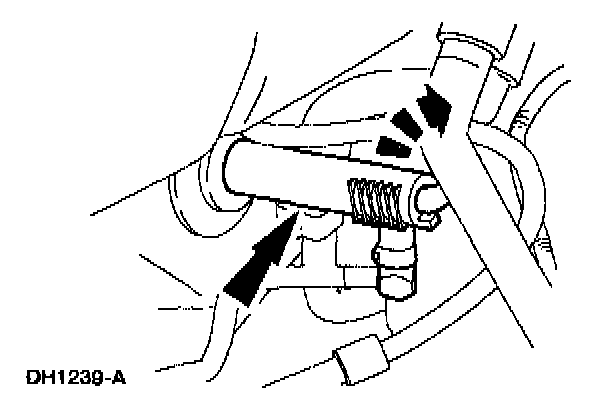

4. Remove the clutch master cylinder by rotating the clutch master cylinder 45 degrees clockwise.
5. Remove the bulkhead sound insulator.
All vehicles

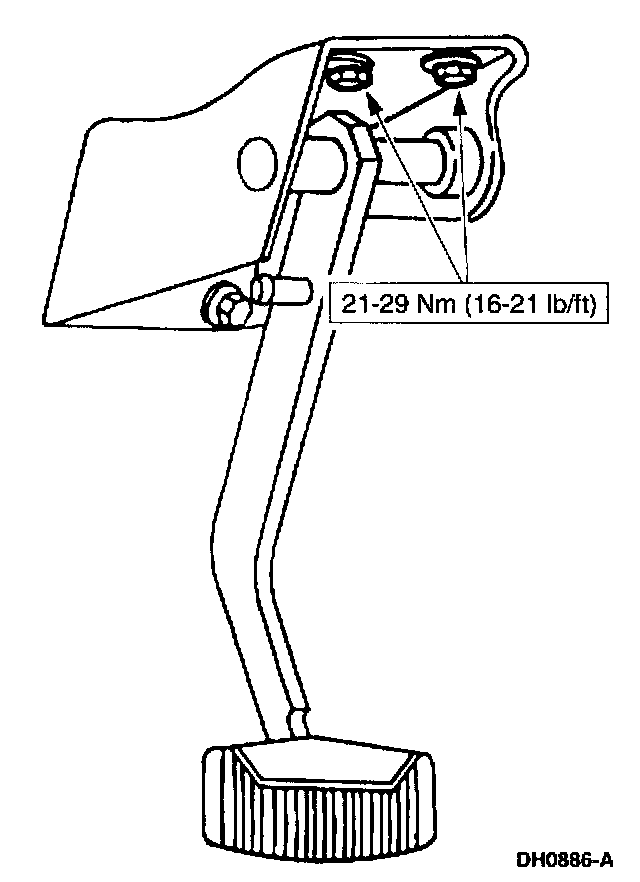

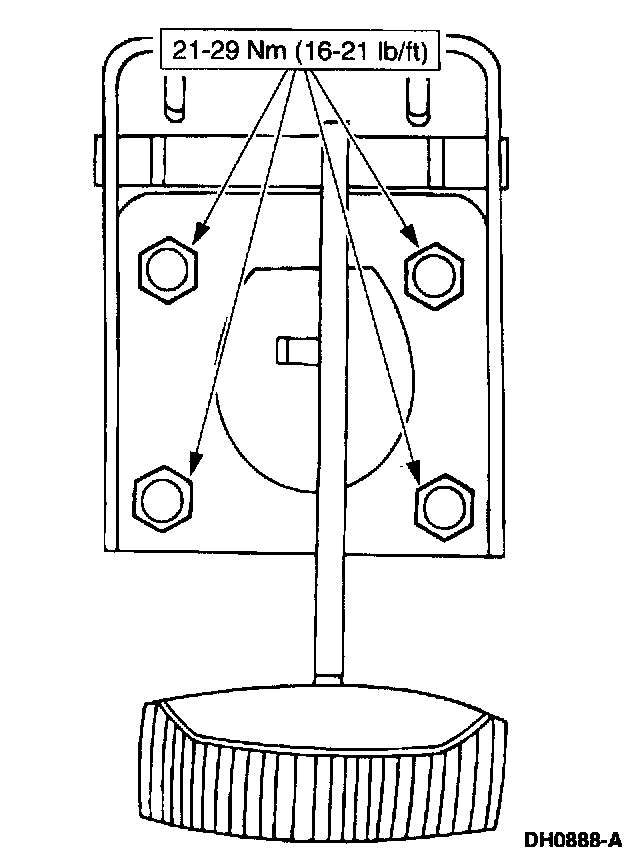

6. Remove the bolts.
7. CAUTION: Support the brake master cylinder and power brake booster in the engine compartment.
Remove the nuts and the brake pedal assembly.
8. To install reverse the removal procedure.
