Sensor, Front

Sensor-Front

Removal and Installation

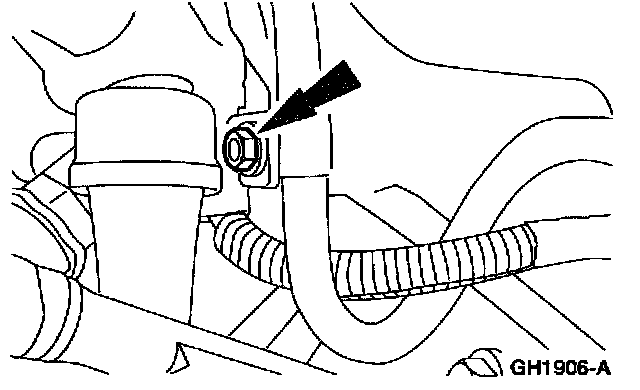

1. Remove the brake disc shield.

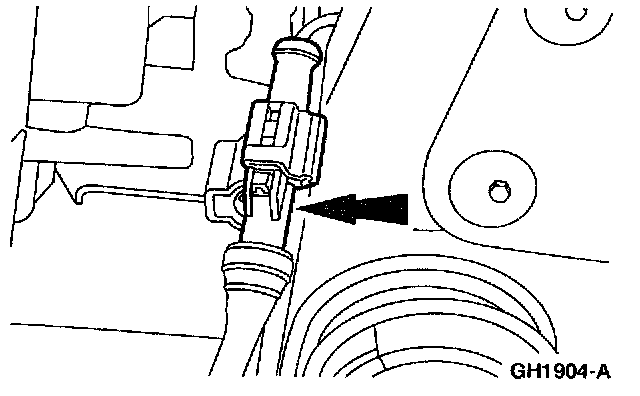

2. Disconnect the front anti-lock brake sensor electrical connector.

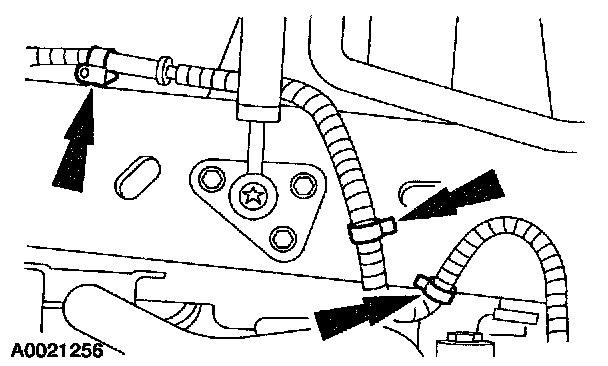

3. Unclip the front anti-lock brake sensor wire from the vehicle frame.





4. Remove the bolt.





5. Remove the front anti-lock brake sensor.

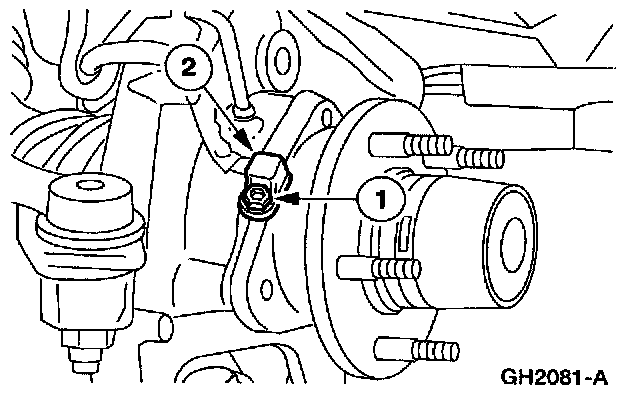

1 Remove the bolt.
2 Remove the front anti-lock brake sensor.








6. NOTE: Plug the sensor mount opening and thoroughly clean the mounting surface. Apply High-Temperature 4x4 Front Axle and Wheel Bearing Grease E8TZ-19590-A meeting Ford specification ESA-MlC198-A.

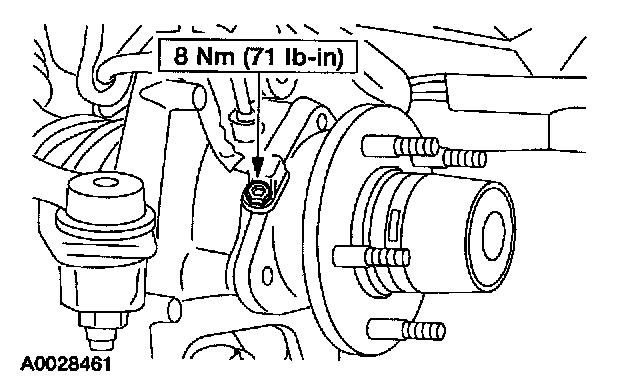

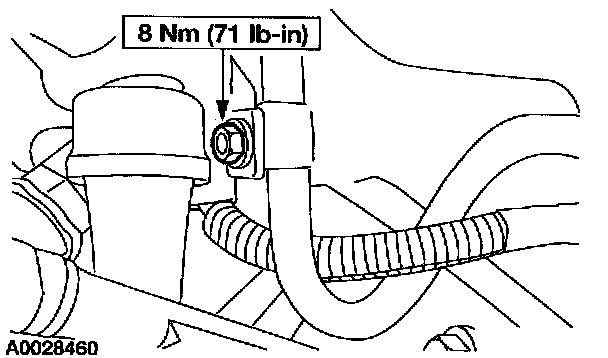

To install, reverse the removal procedure
