Tailgate Latch

REMOVAL







1. Remove the tailgate trim panel.
1 Remove the screws.
2 Remove the pin-type retainers.

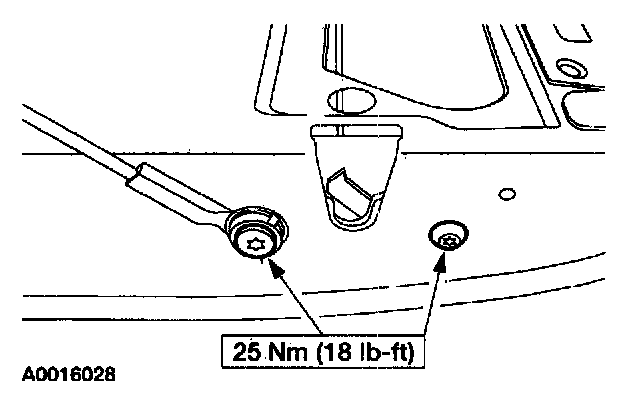

2. Remove the tailgate latch bolts.

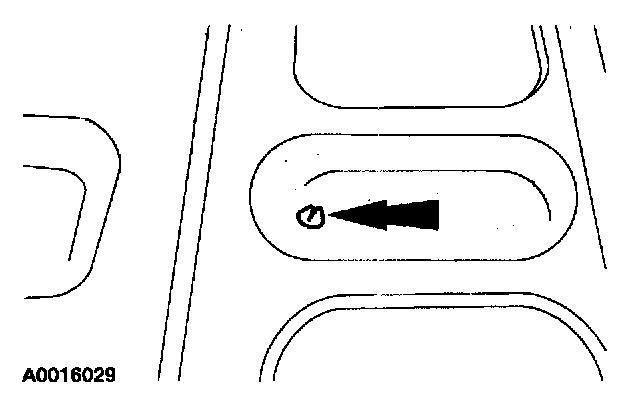

3. Remove the tailgate latch actuating rod guide.

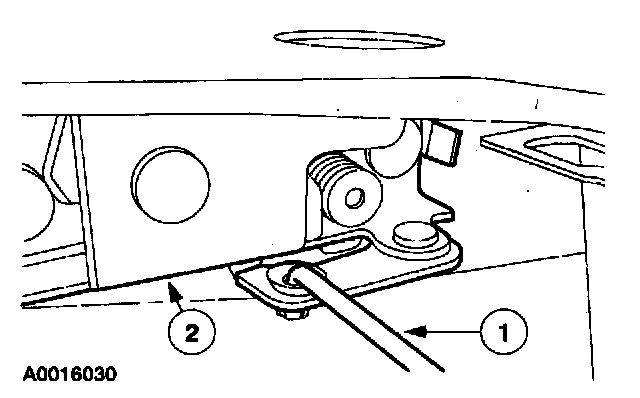

4. Remove the tailgate latch.
1 Release the actuating rod.
2 Remove the tailgate latch.

INSTALLATION
1. To install, reverse the removal procedure.
- If necessary, use Multi-Purpose Grease Spray F5AZ-19G209-AA or equivalent meeting Ford specification ESR-M1C159-A to lubricate the latches.
