Rear Pivot Arm

REMOVAL

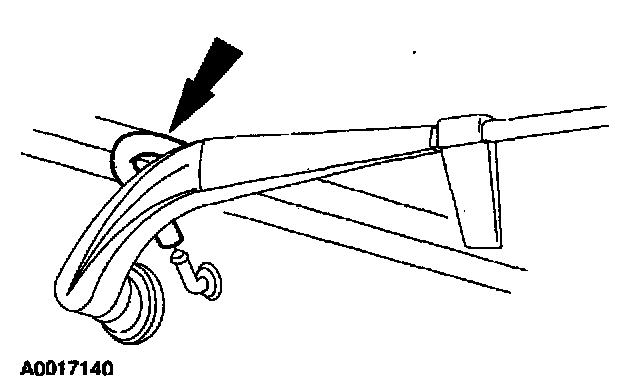

1. Disconnect the rear washer hose.

NOTE: Early build shown, late build similar.

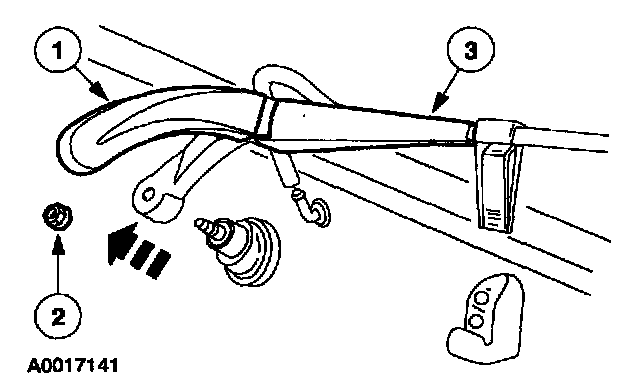

2. Remove rear wiper pivot arm.
1 Lift the wiper pivot arm nut cover at the point shown.
2 Remove the nut.
3 Remove the wiper pivot arm.

NOTE: The wiper pivot arm must be lifted straight up from the shaft to avoid damage to the wiper pivot arm or shaft.

NOTE: Early build shown, late build similar.

INSTALLATION

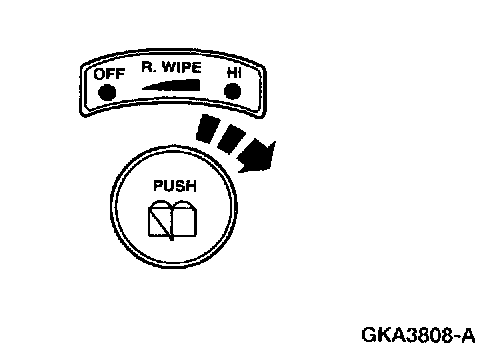

1. Turn the rear wiper switch on and allow the motor to operate for at least one cycle.

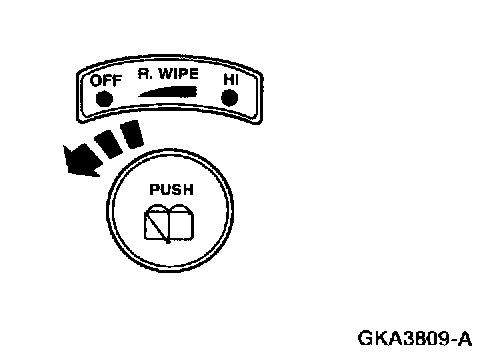

2. Turn the rear wiper switch OFF.

NOTE: This step makes sure that the wiper motor is in the park position.

3. On early build vehicles, position the rear wiper blade outside the wiper arm stop.

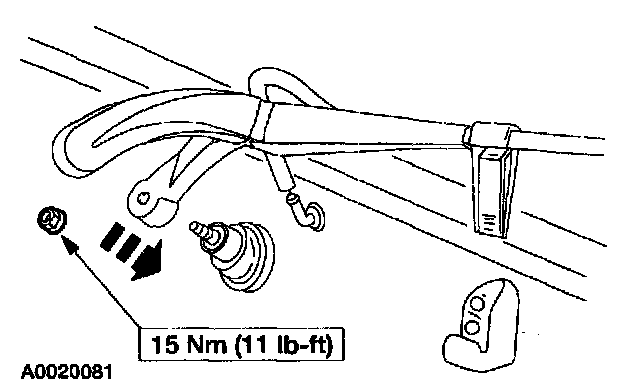

4. Install the wiper pivot arm onto the wiper motor.
^ Tighten retaining nut.

NOTE: Early build shown, late build similar.







5. Connect the washer hose to the elbow with elbow positioned between the 9:00 and 12:00 o'clock positions.

NOTE: Early build shown, late build similar.
