Home >> Ford Truck >> 2002 >> Explorer Sport Trac 2WD V6-4.0L VIN E >> Repair and Diagnosis >> Windows and Glass >> Windows >> Power Window Motor >> Diagrams

Power Window Motor: Diagrams

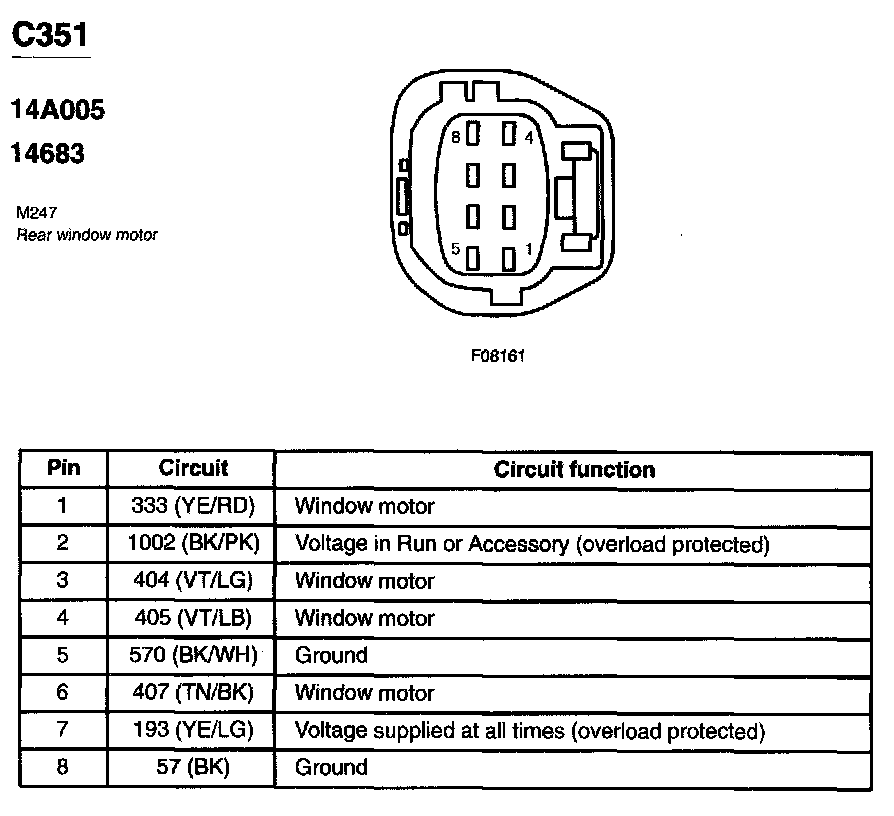

Connector View C351:
