Explorer Sport Trac 2WD V6-4.0L VIN E
>>
Repair and Diagnosis
>>
Locations
>>
Harness Locations
Harness Locations

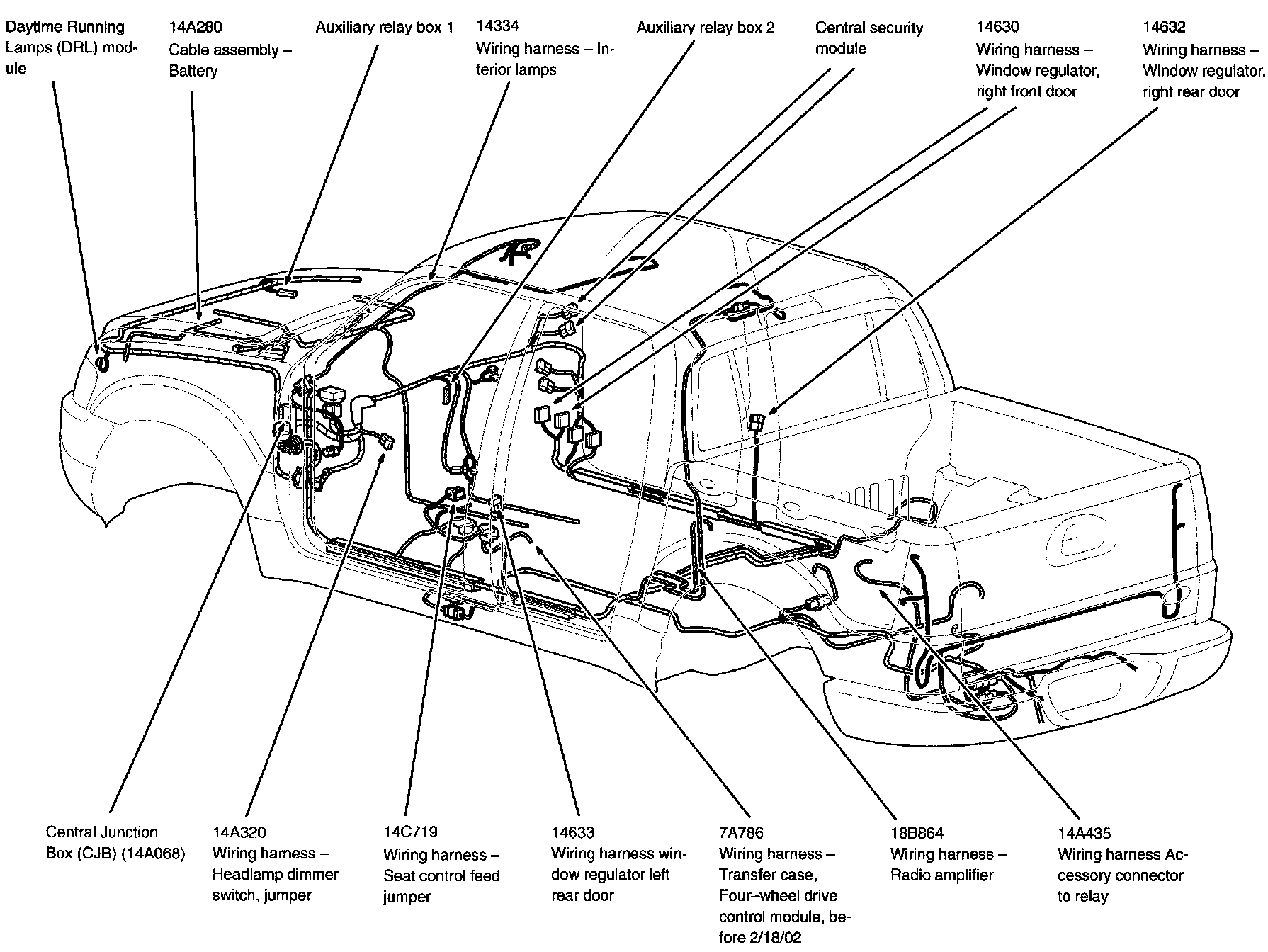

Wiring Harness Overview:

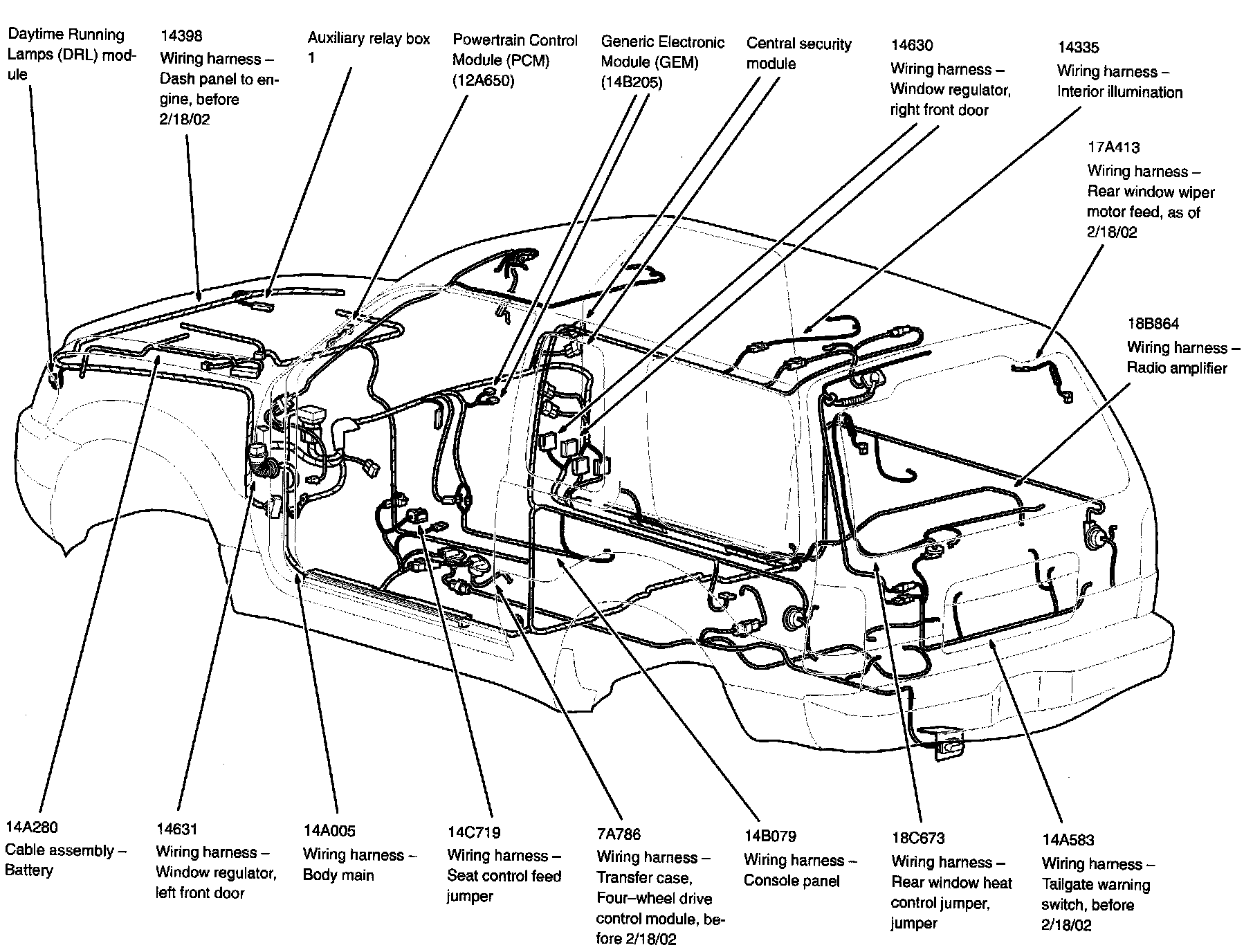

Wiring Harness Overview:

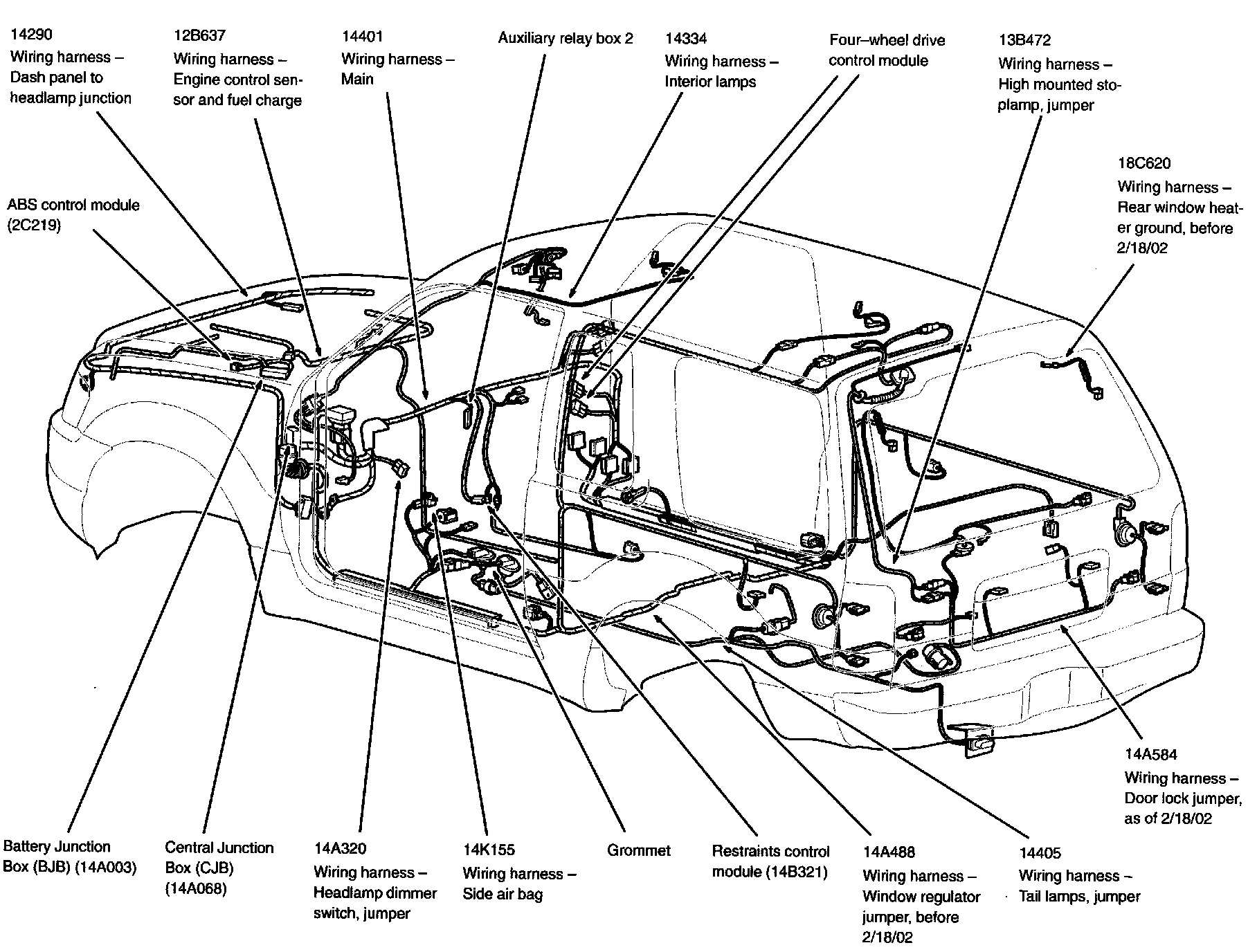

Wiring Harness Overview:

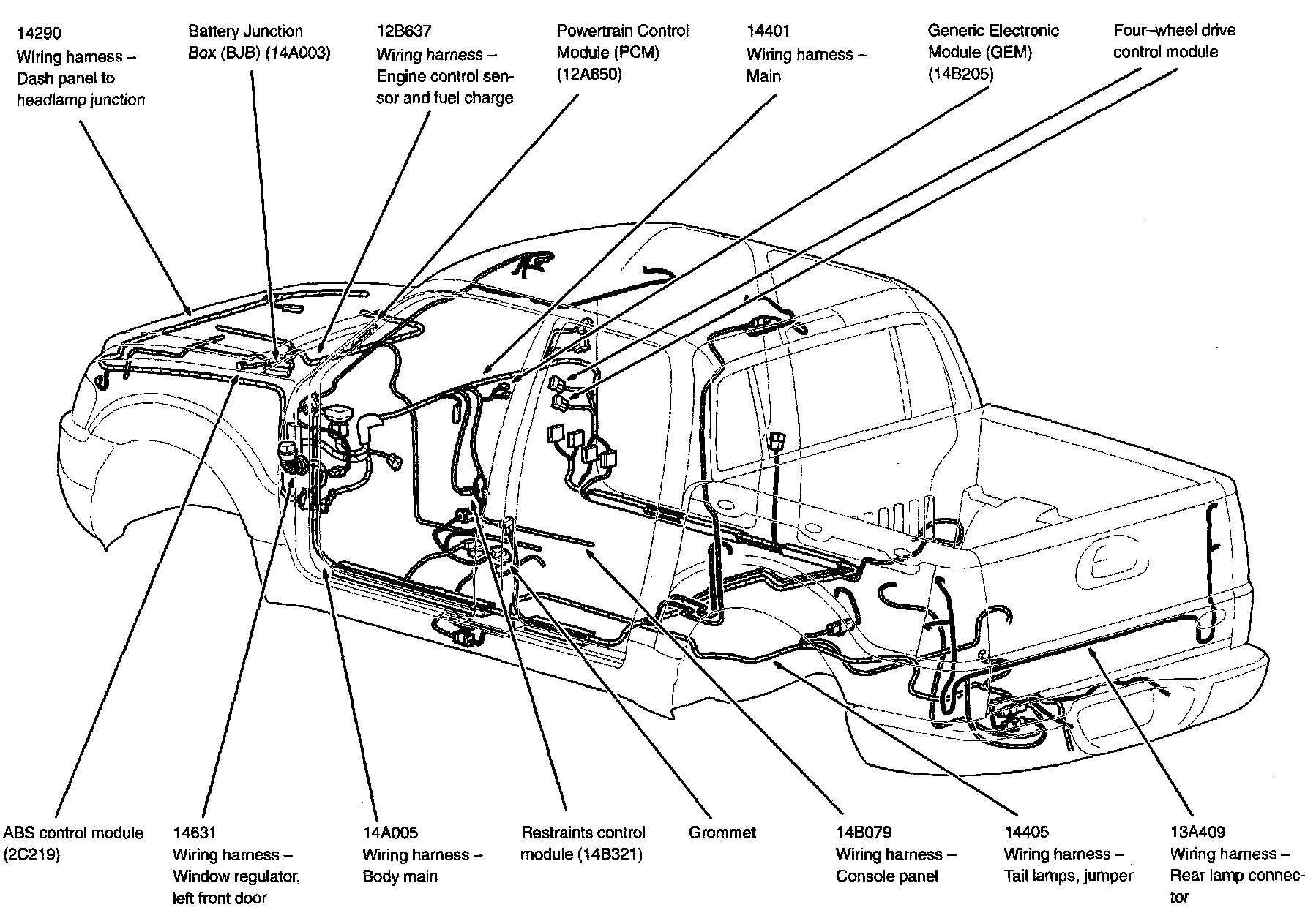

Wiring Harness Overview:
