Center Registers

REMOVAL
1. Remove the audio unit.

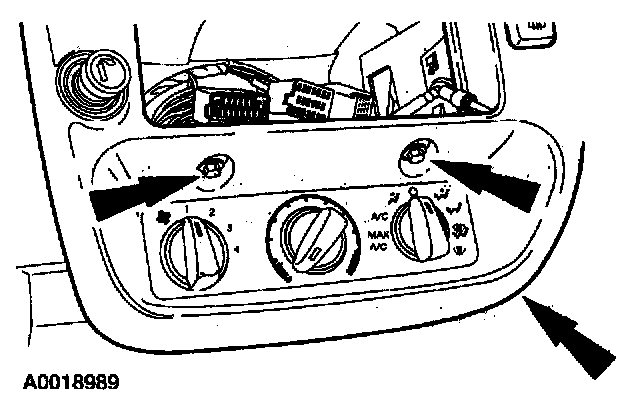

2. Remove the screws. Disengage the spring clips. Detach the instrument panel finish panel.

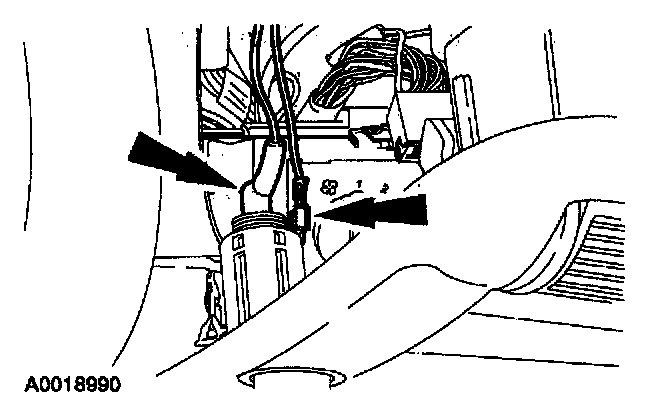

3. Disconnect the cigar lighter electrical connectors.







4. Disconnect the electrical connectors. Remove the instrument panel finish panel.

NOTE: The number and location of the electrical connectors will vary dependent on vehicle equipment.







5. Release the eight clips. Remove the center instrument panel register from the instrument panel finish panel.

INSTALLATION
1. To install, reverse the removal procedure.
