Home
>>
Ford Truck
>>
2002
>>
Explorer Sport Trac 2WD V6-4.0L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Door Lock Switch
>>
Passenger Side
Passenger Side

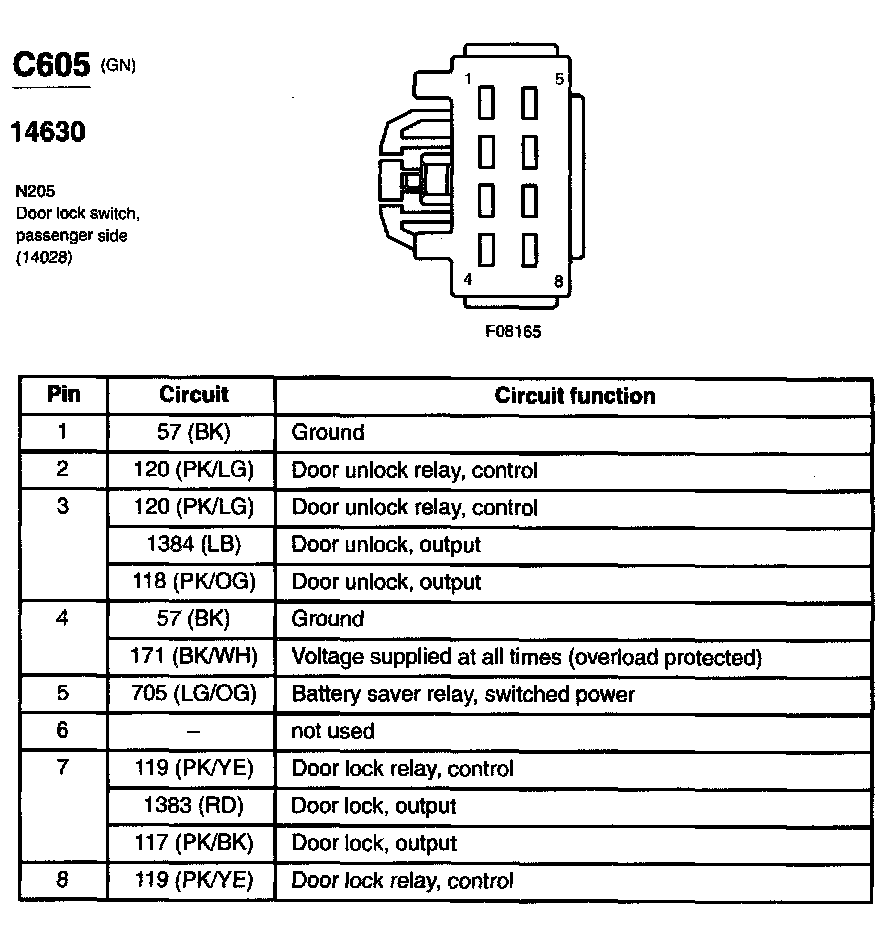

Connector View C605:
