Home
>>
Ford Truck
>>
2002
>>
Explorer Sport Trac 2WD V6-4.0L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuel Pump Relay
Fuel Pump Relay

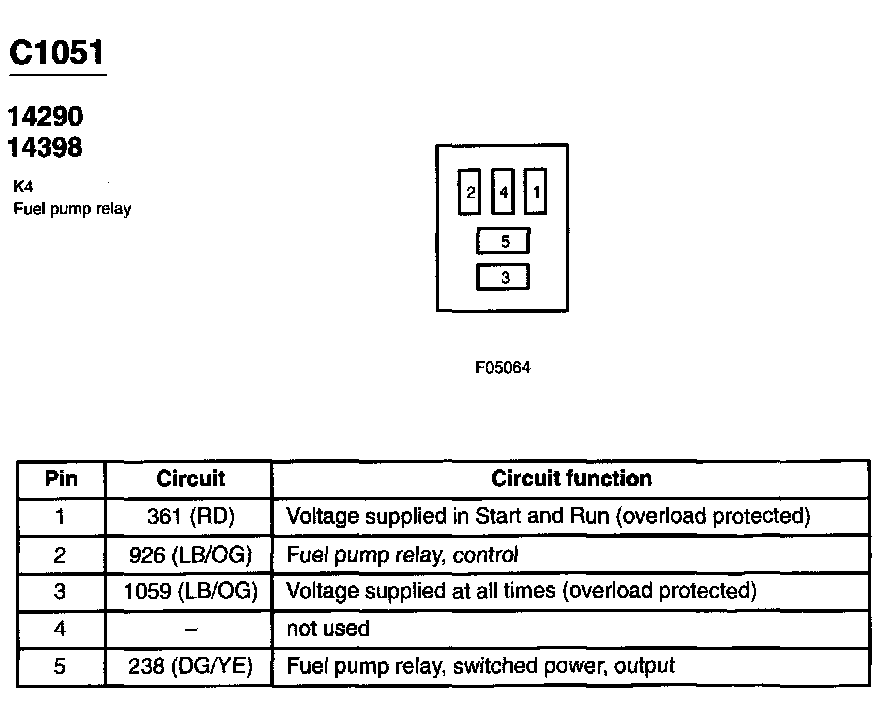

Connector View C1051:
