Ford Truck
>>
2002
>>
Explorer Sport Trac 2WD V6-4.0L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuel Injector
>>
Injector 6
Injector 6

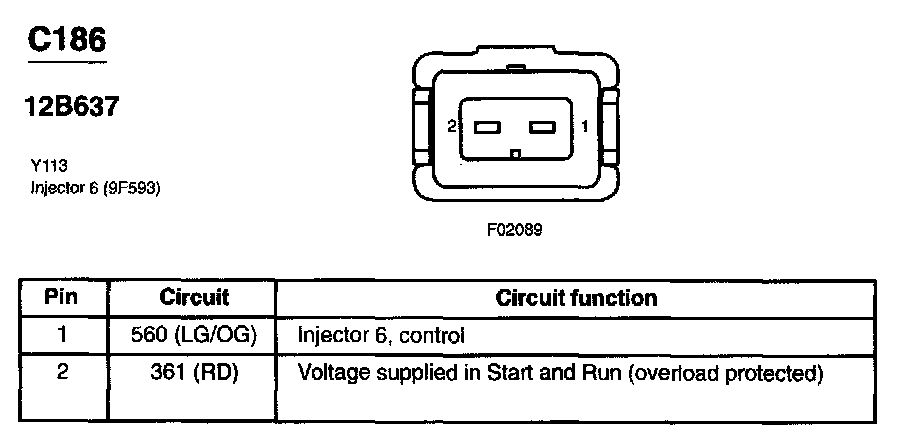

Connector View C186:
