Explorer Sport Trac 2WD V6-4.0L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fog/Driving Lamp
>>
Fog/Driving Lamp Switch
Fog/Driving Lamp Switch

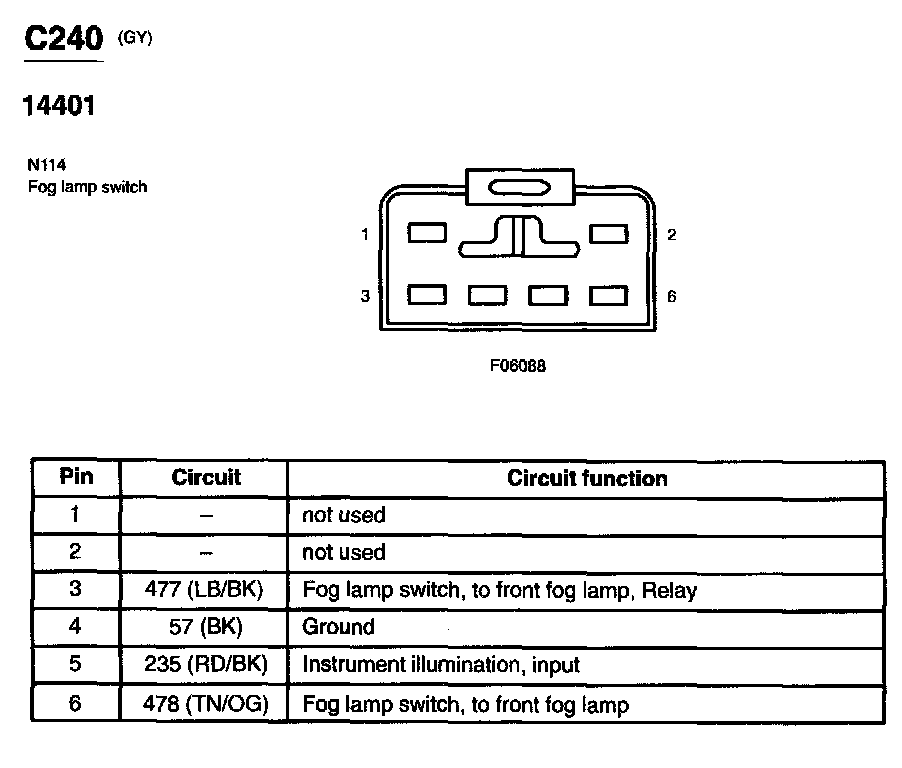

Connector View C240:
