Ford Truck
>>
2002
>>
Explorer Sport Trac 2WD V6-4.0L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C2000-C4171
>>
C2000
C2000

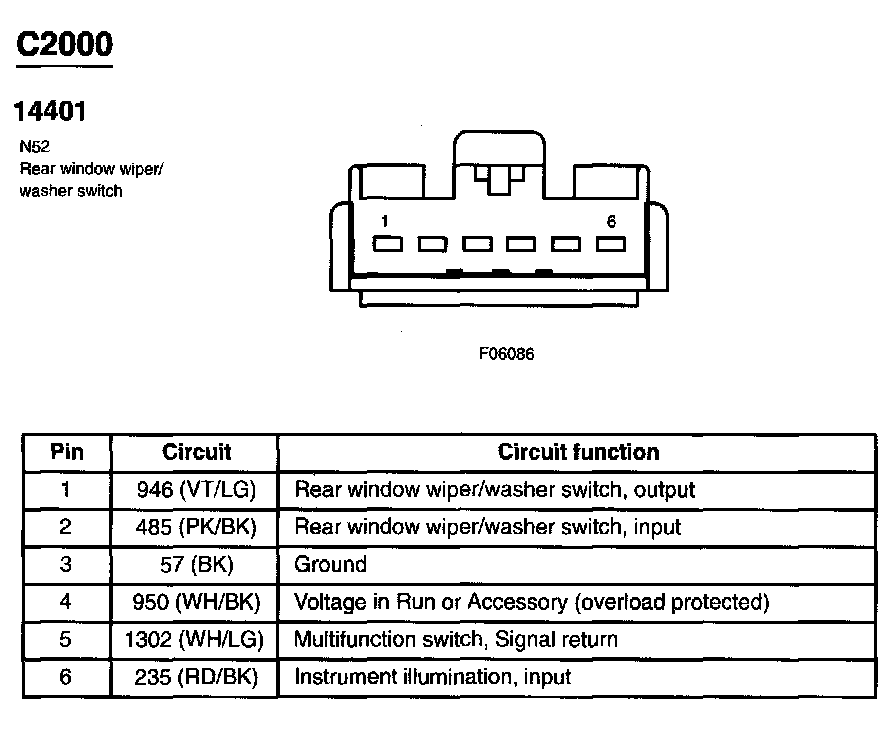

Connector View C2000:
