Ford Truck
>>
2002
>>
Explorer Sport Trac 2WD V6-4.0L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Blower Motor
>>
Auxiliary Climate Control
Auxiliary Climate Control

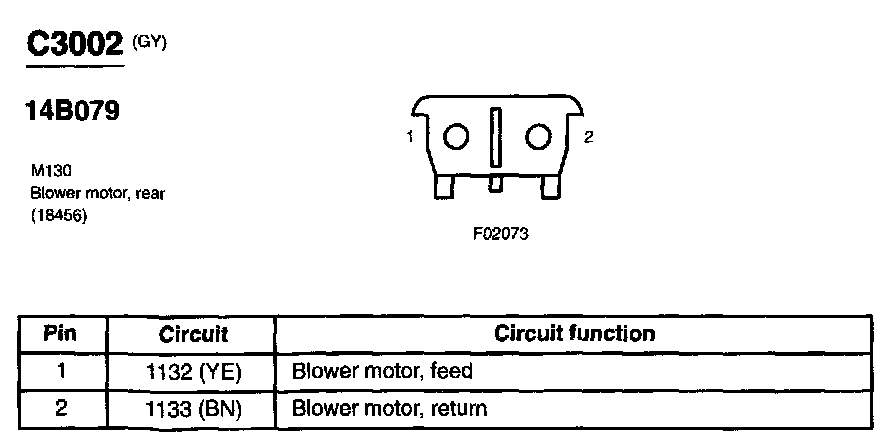

Connector View C3002:
