Home >> Ford Truck >> 2002 >> Explorer AWD V6-4.0L VIN K Flex Fuel >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Upper End

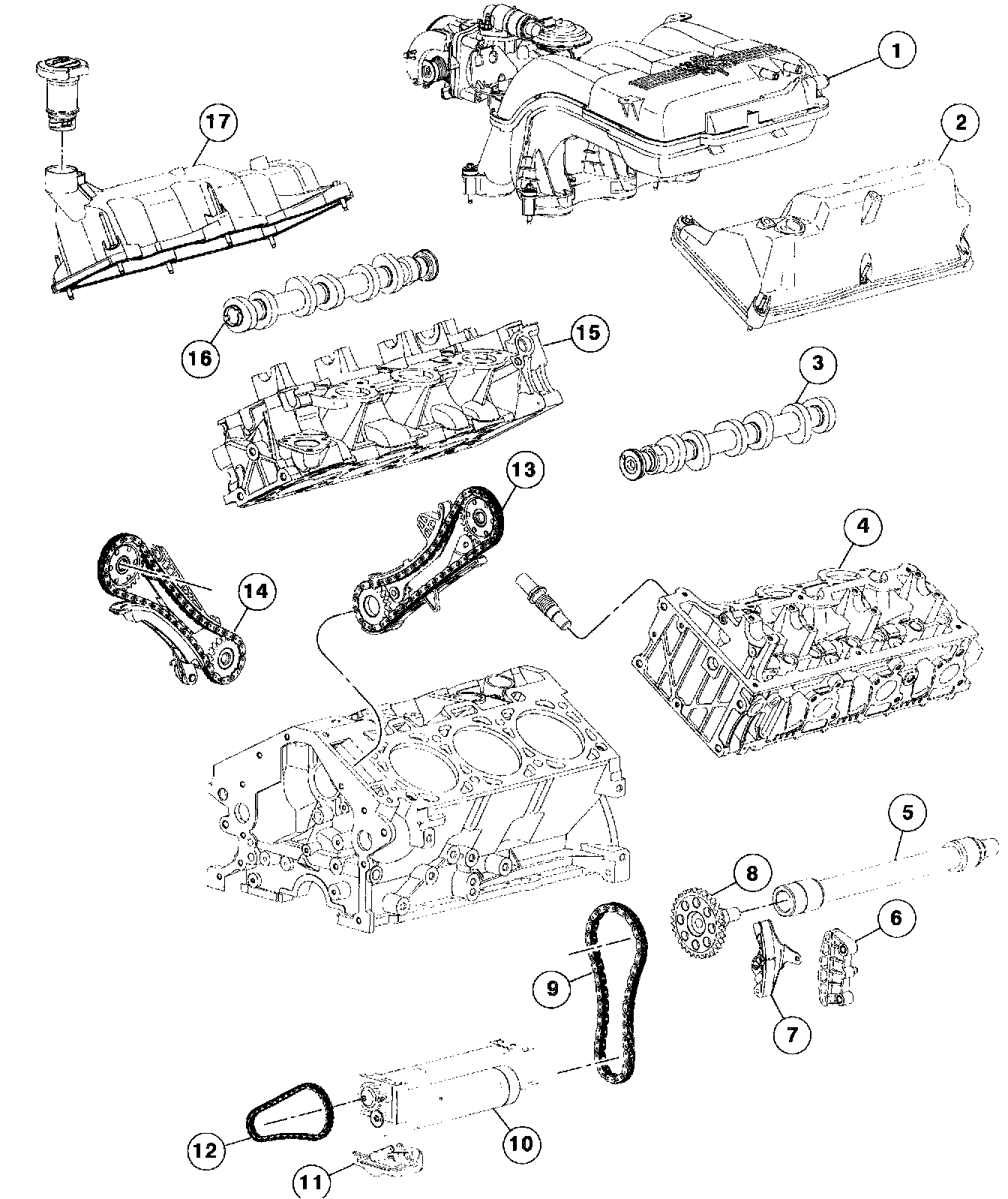

Upper End

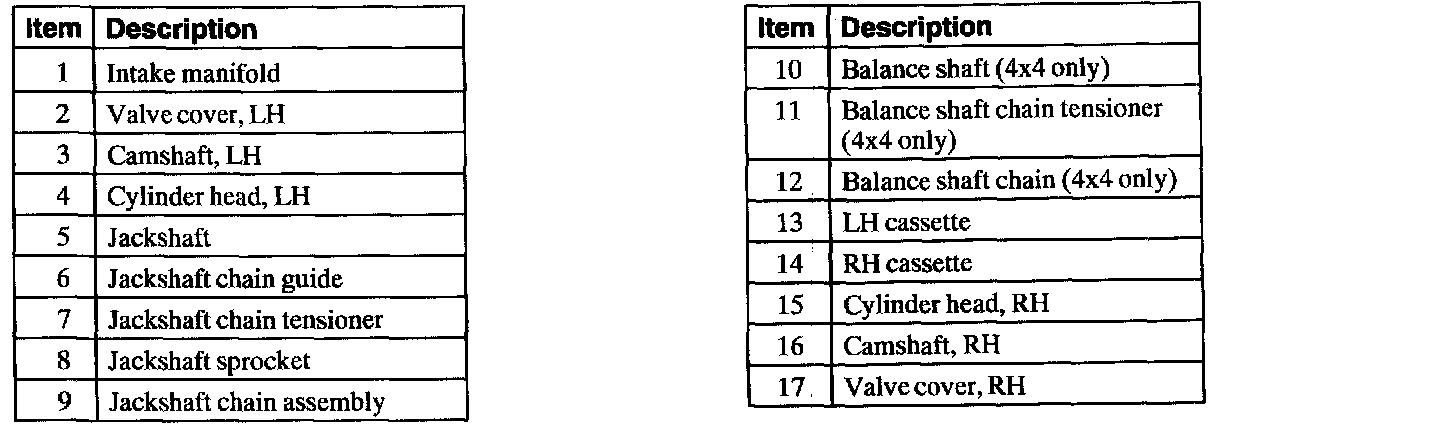

1 of 2

2 of 2
