Intake Air Duct: Service and Repair

REMOVAL

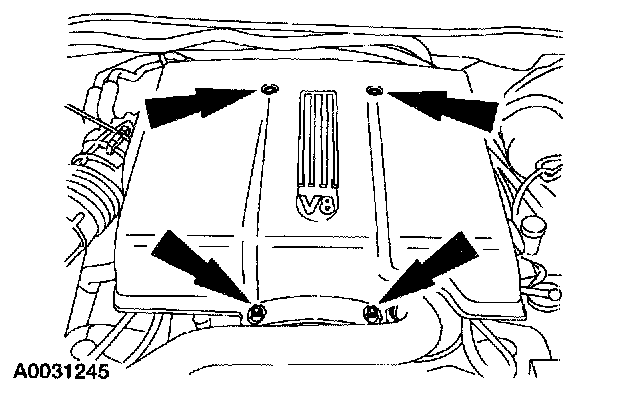

1. Remove the engine appearance cover.

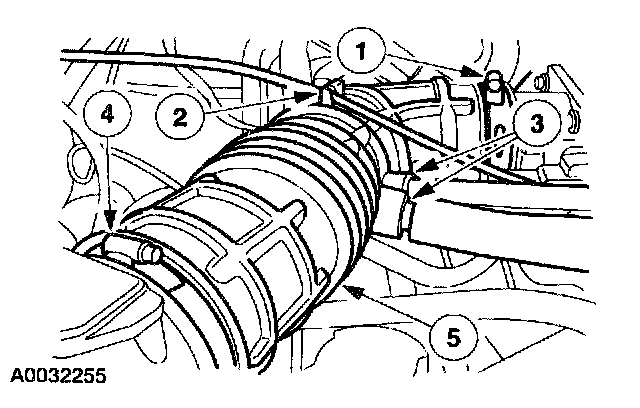

2. Remove the air cleaner outlet tube.
1 Loosen the air cleaner outlet tube clamp.
2 Disconnect the speed control cable from the cable retainer.
3 Disconnect the crankcase ventilation hoses.
4 Loosen the air cleaner outlet tube clamp.
5 Remove the air cleaner outlet tube.

INSTALLATION
1. To install, reverse the removal procedure.

NOTE: Make sure the screw clamps do not interfere with the throttle body cam.
