Transmission Position Sensor/Switch
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

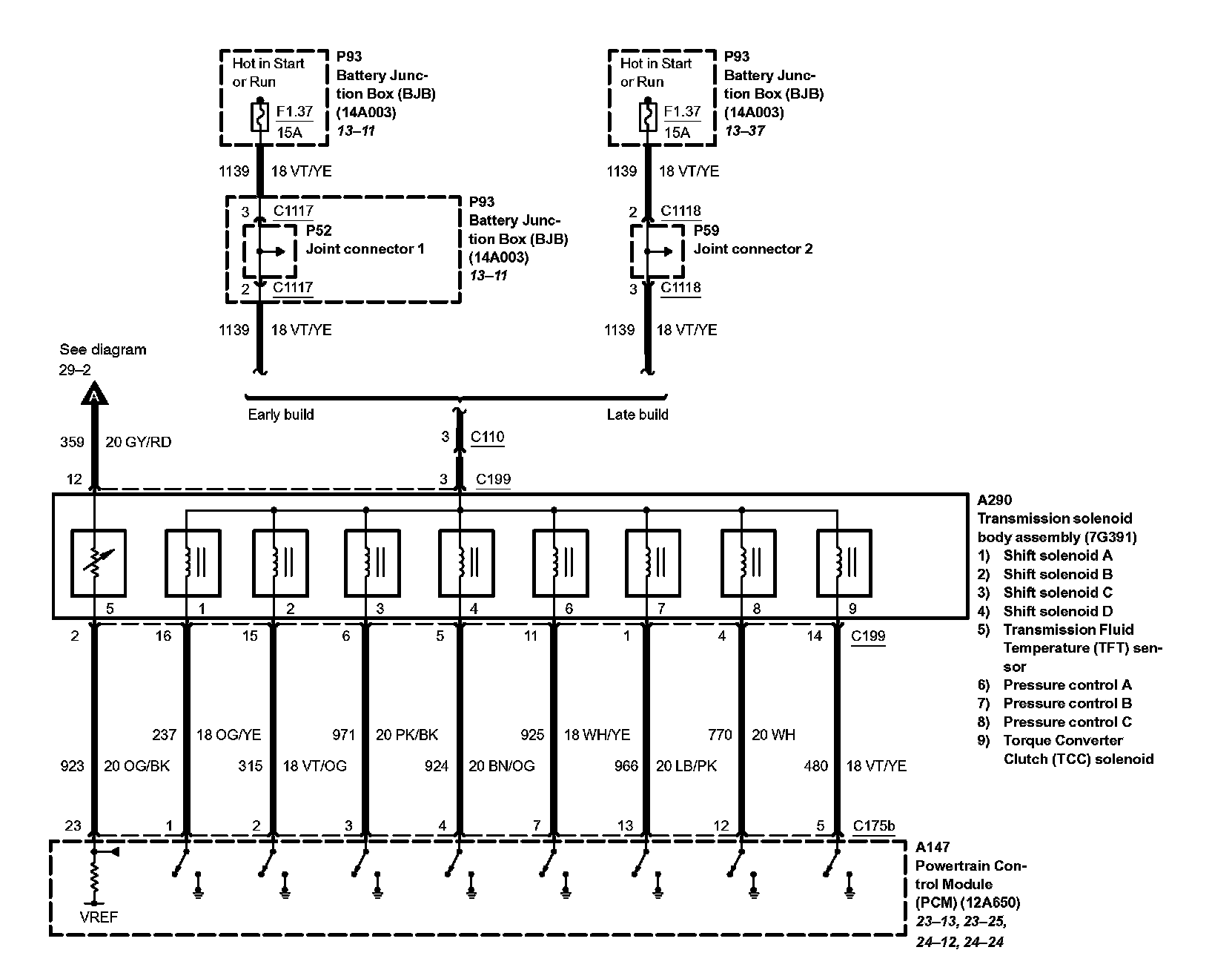

29-1:

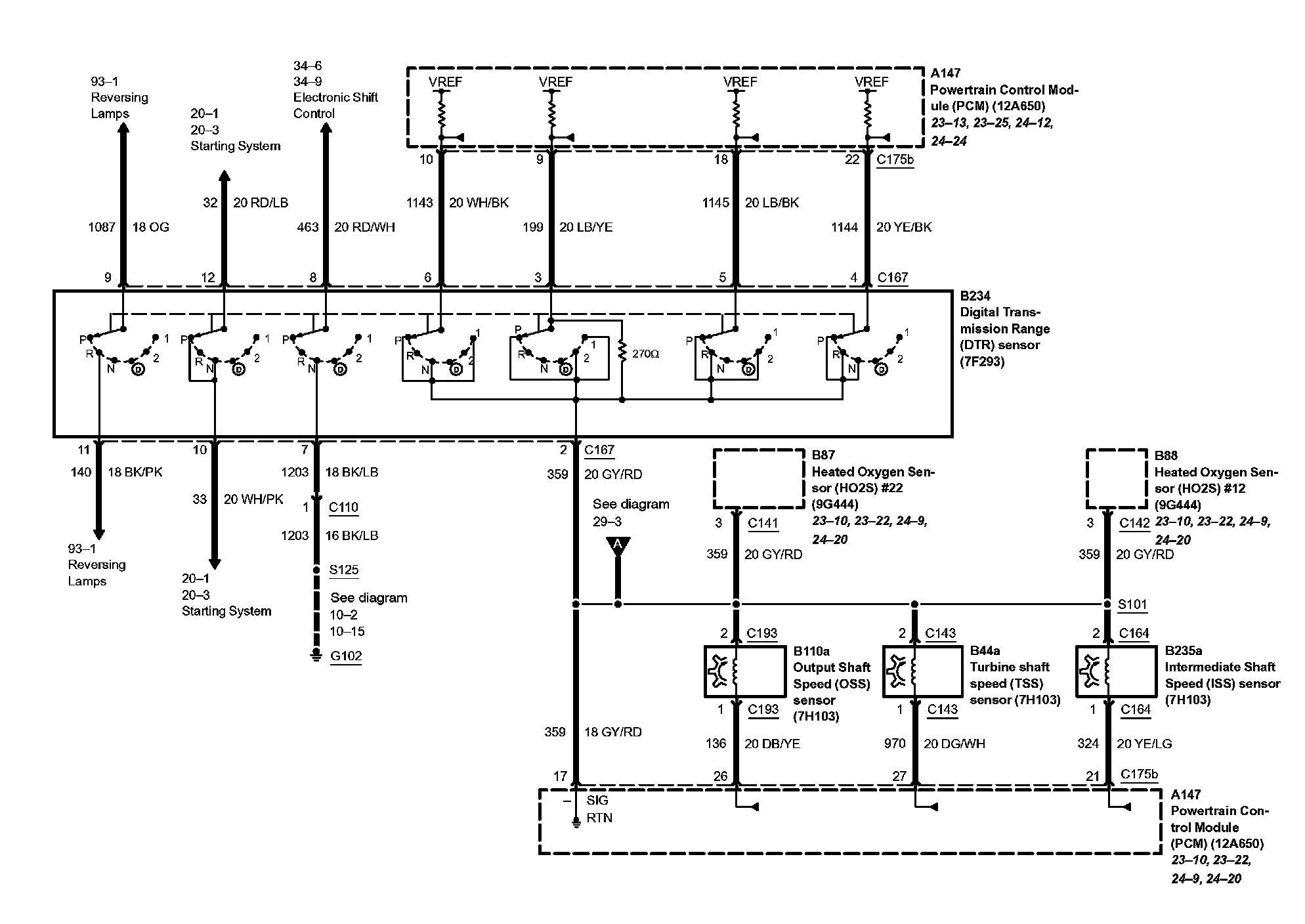

29-2:

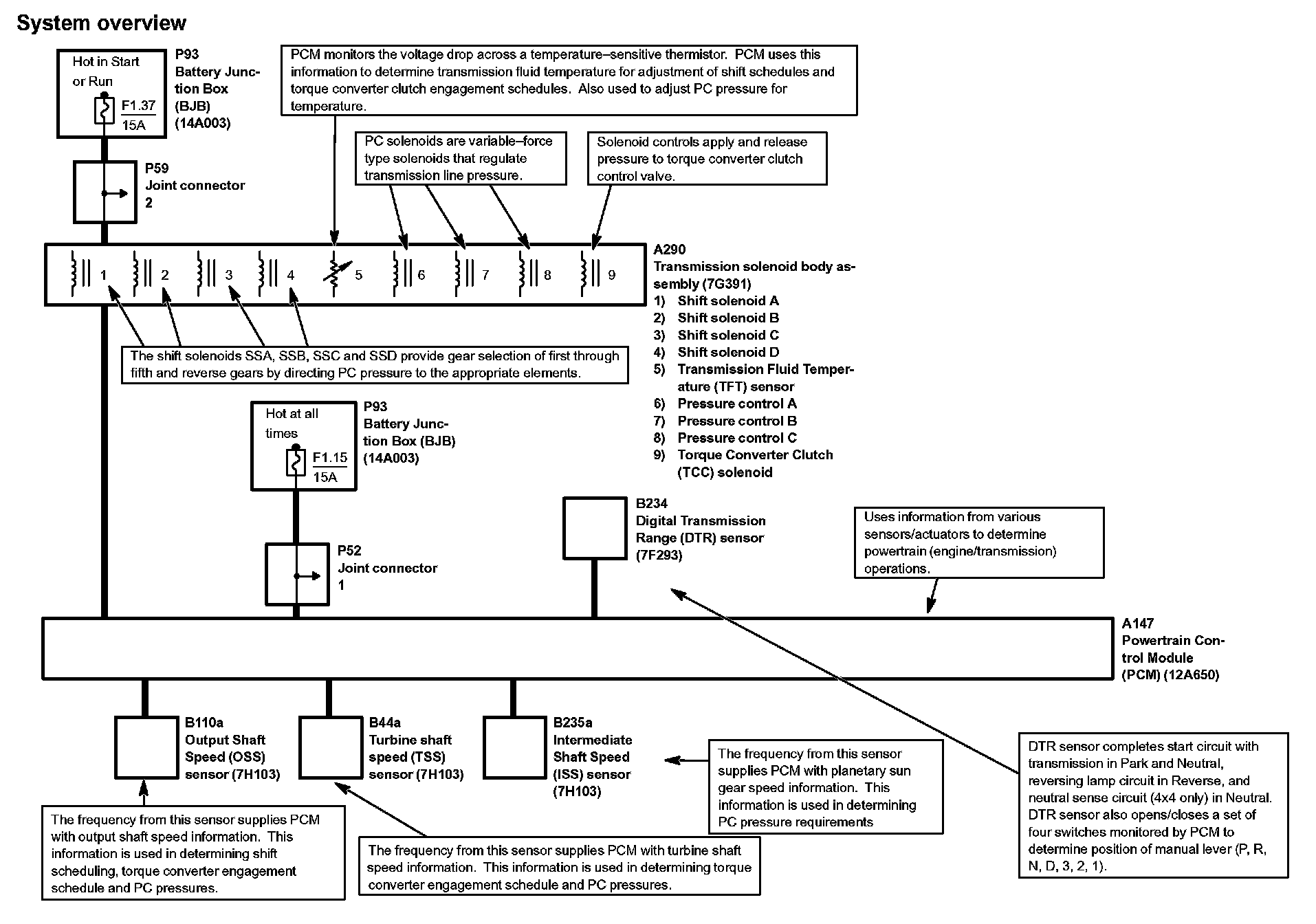

29-3:
