Ford Truck
>>
2002
>>
Explorer 4WD V8-4.6L VIN W
>>
Repair and Diagnosis
>>
Locations
>>
Harness Locations
>>
Late Build - Vehicles Built After 03/2002
Late Build - Vehicles Built After 03/2002

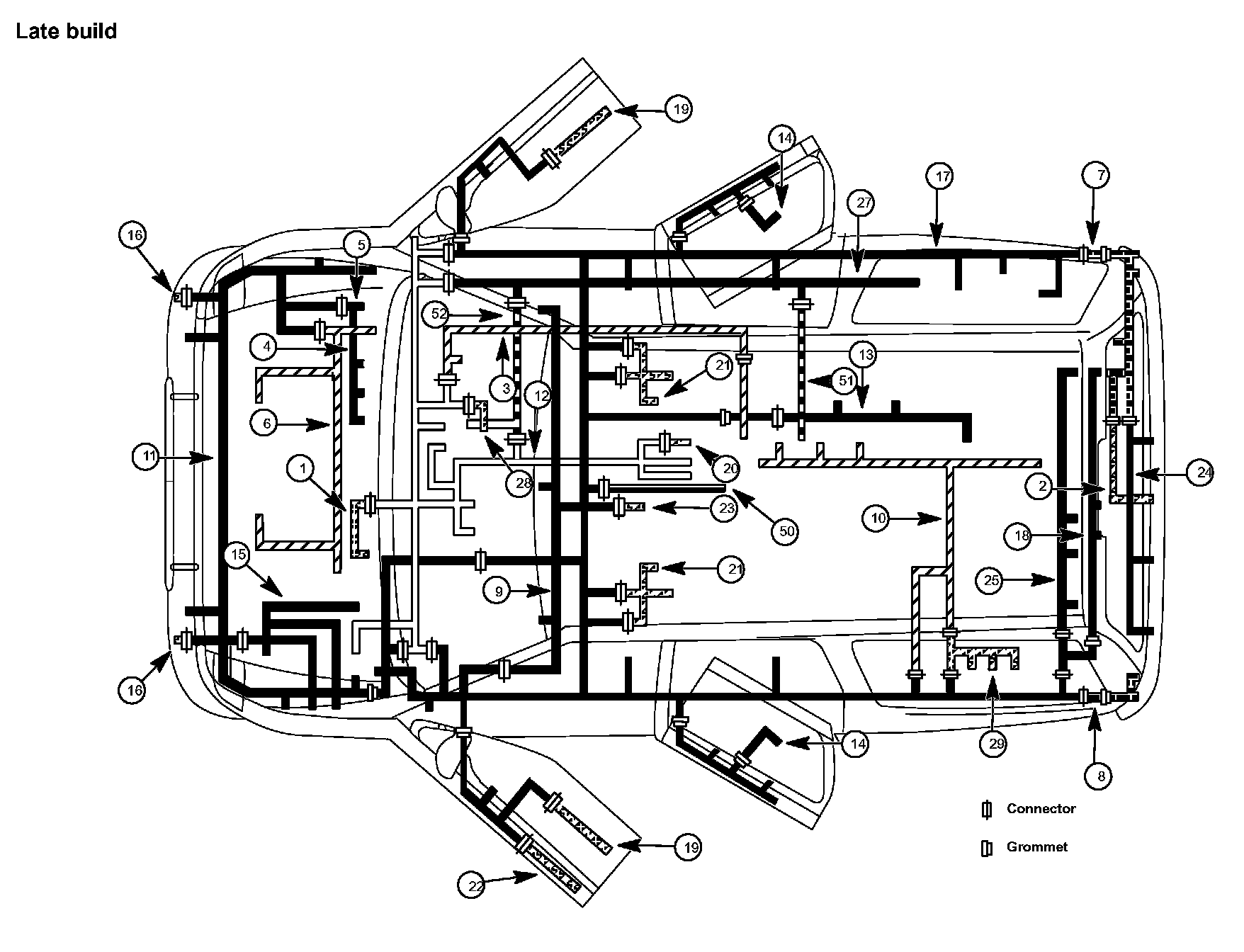

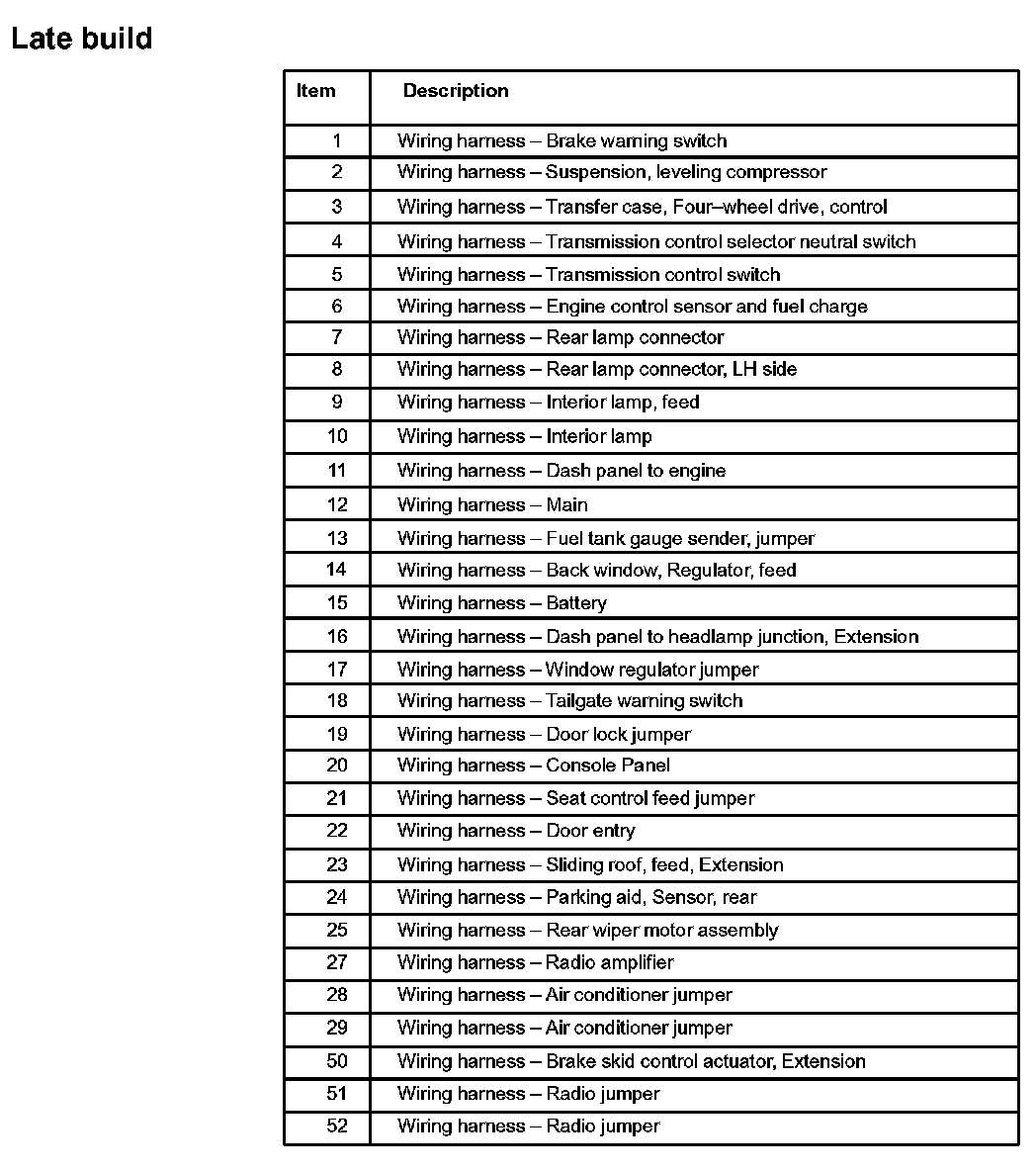

Wiring Harness Overview Part 1:
Wiring Harness Overview Part 2:

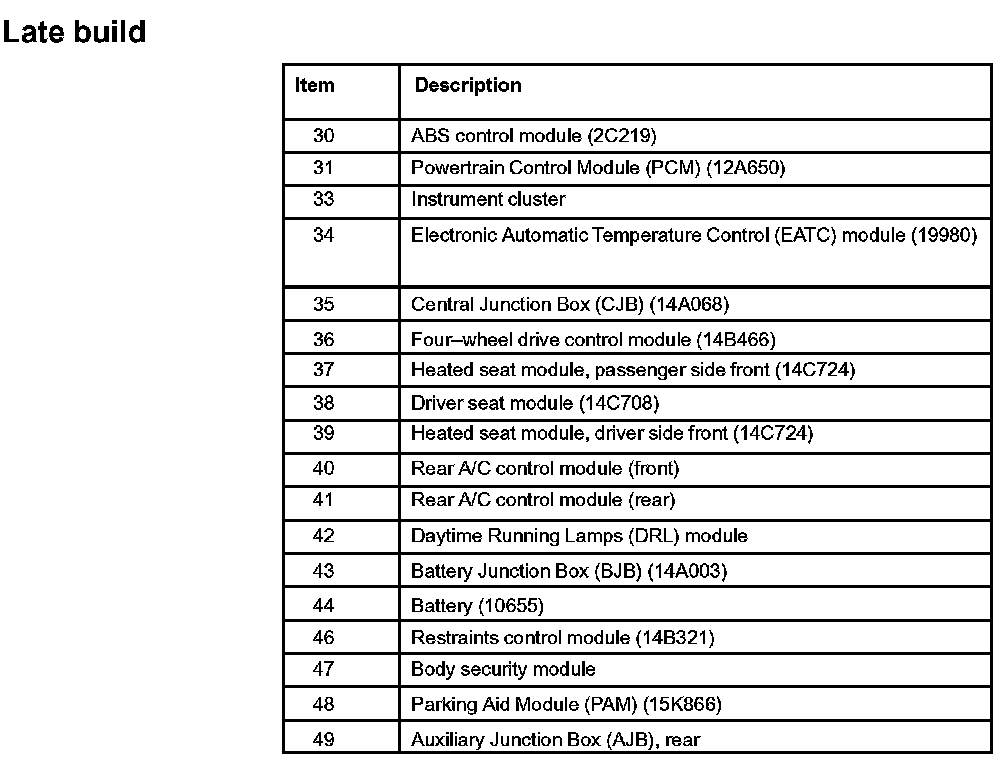

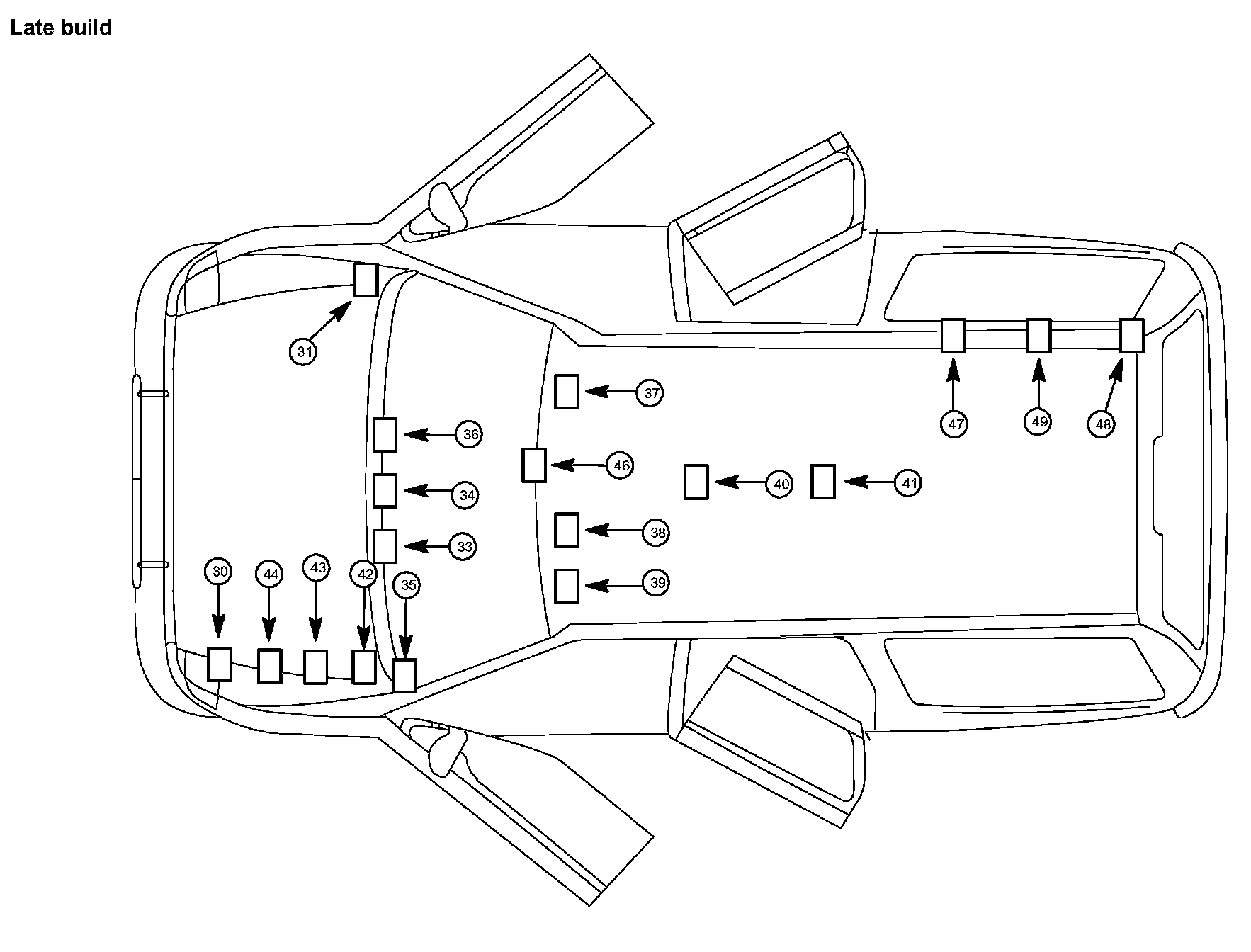

Wiring Harness Overview Part 1:
Wiring Harness Overview Part 2:
