Home >> Ford Truck >> 2002 >> Explorer 4WD V8-4.6L VIN W >> Repair and Diagnosis >> Locations >> Component Locations >> Location Views >> View 151-76 (Under Driver Seat Late Build)

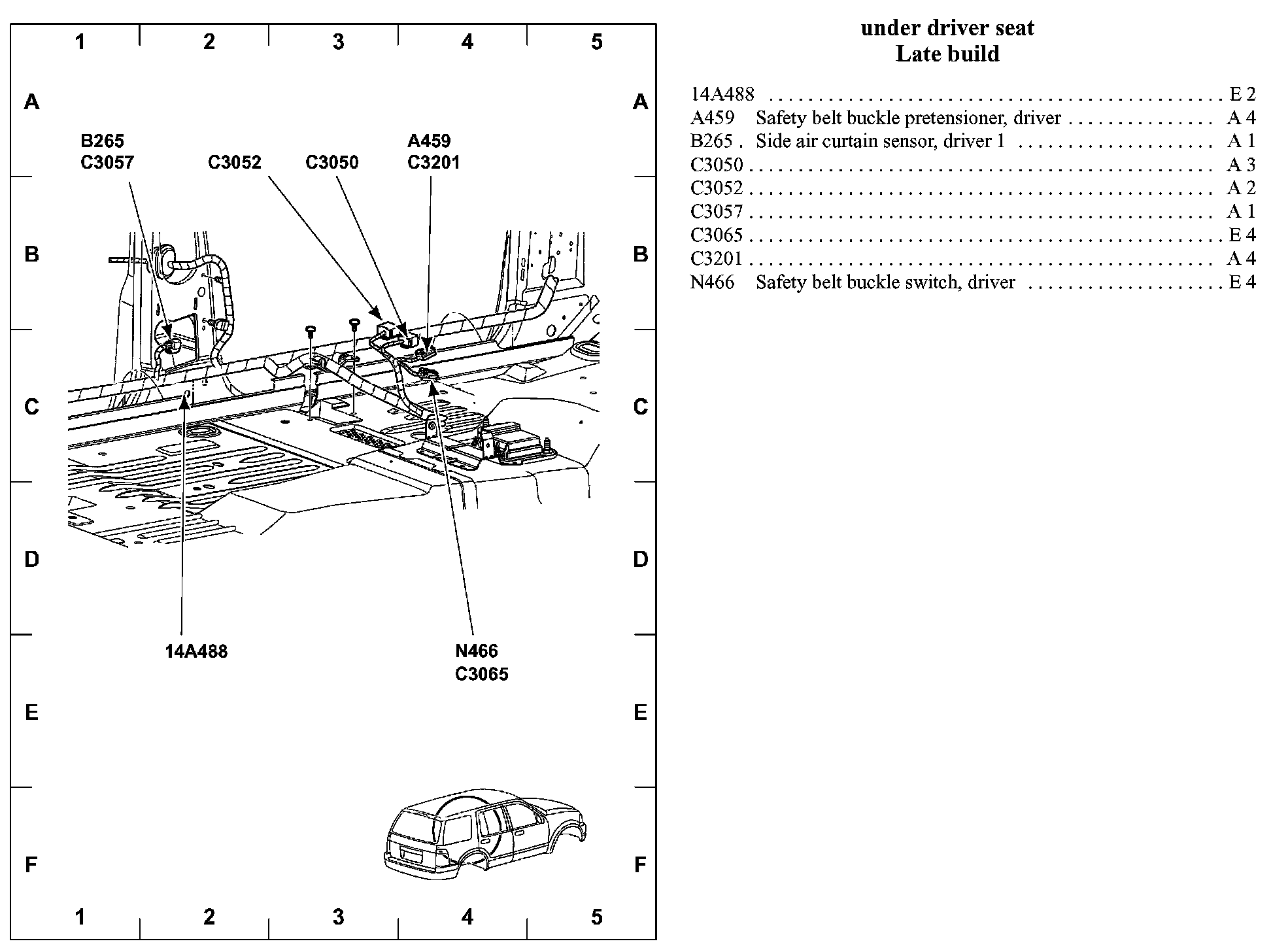

View 151-76 (Under Driver Seat Late Build)

View 151-76 (Under Driver Seat Late Build):
