Explorer 4WD V8-4.6L VIN W
>>
Repair and Diagnosis
>>
Locations
>>
Component Locations
>>
Location Views
>>

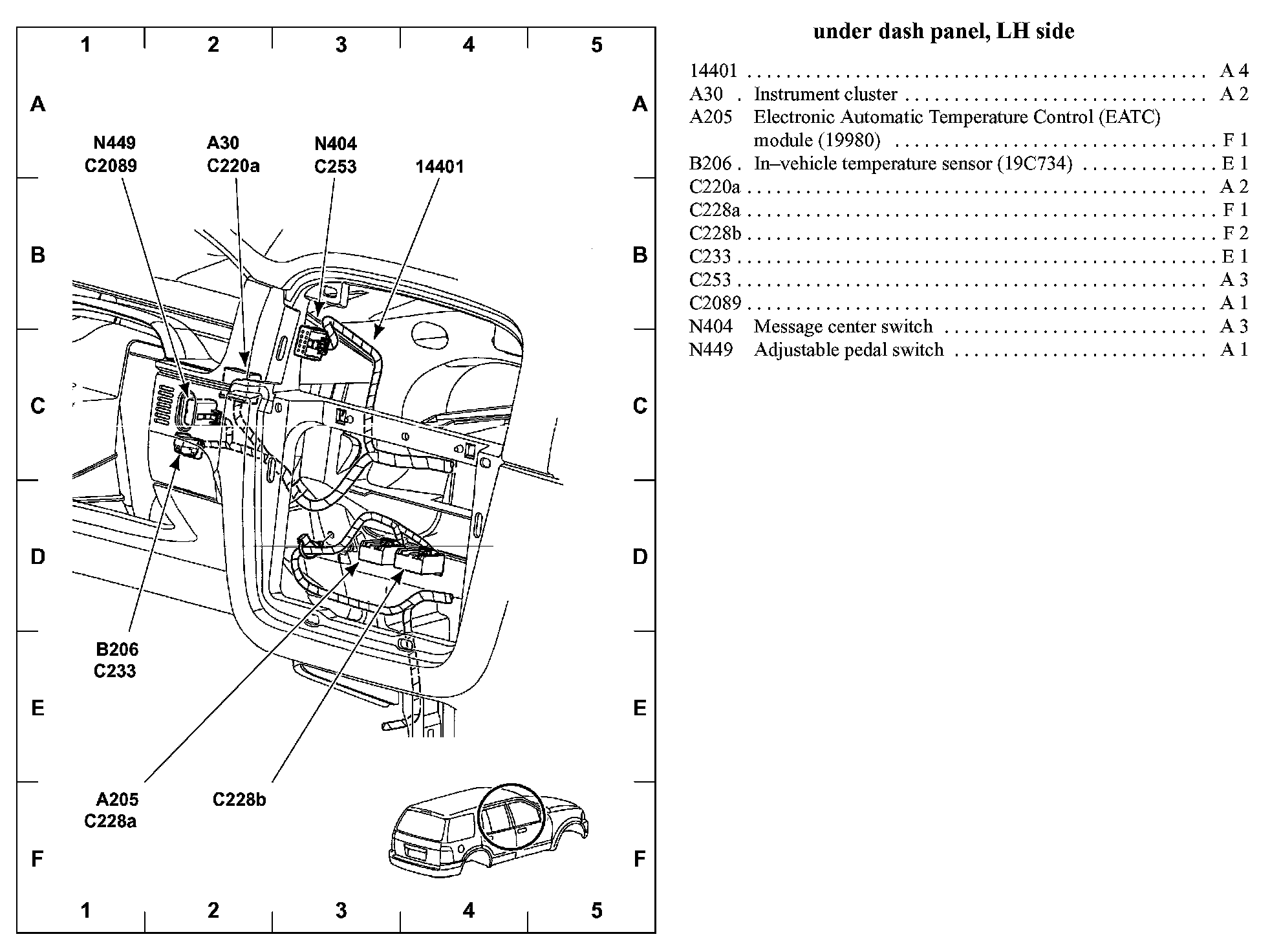

View 151-41 (Under Dash Panel, LH Side)
View 151-41 (Under Dash Panel, LH Side)
View 151-41 (Under Dash Panel, LH Side):
View 151-44 (Under Dash Panel, LH Side):
