Home
>>
Ford Truck
>>
2002
>>
Explorer 4WD V8-4.6L VIN W
>>
Repair and Diagnosis
>>
Locations
>>
Component Locations
>>
Location Views
>>

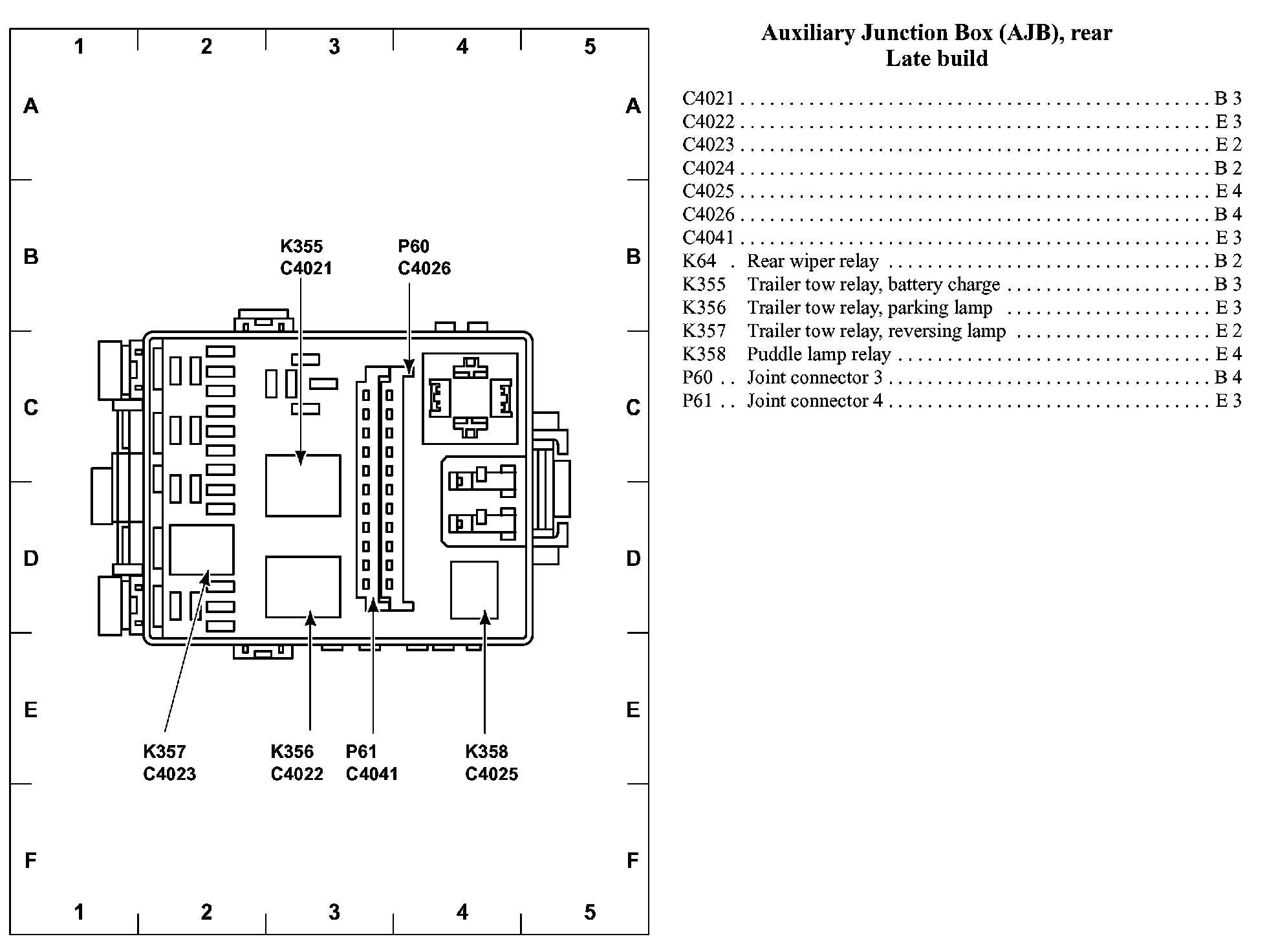

View 151-101 (Auxiliary Junction Box (AJB), Rear Late Build)
View 151-101 (Auxiliary Junction Box (AJB), Rear Late Build)
View 151-101 (Auxiliary Junction Box (AJB), Rear Late Build):
