Home >> Ford Truck >> 2002 >> Explorer 4WD V8-4.6L VIN W >> Repair and Diagnosis >> Diagrams >> Connector Views >> Courtesy Lamp >> System Diagram >> Interior/Map Lamps Assembly, Front

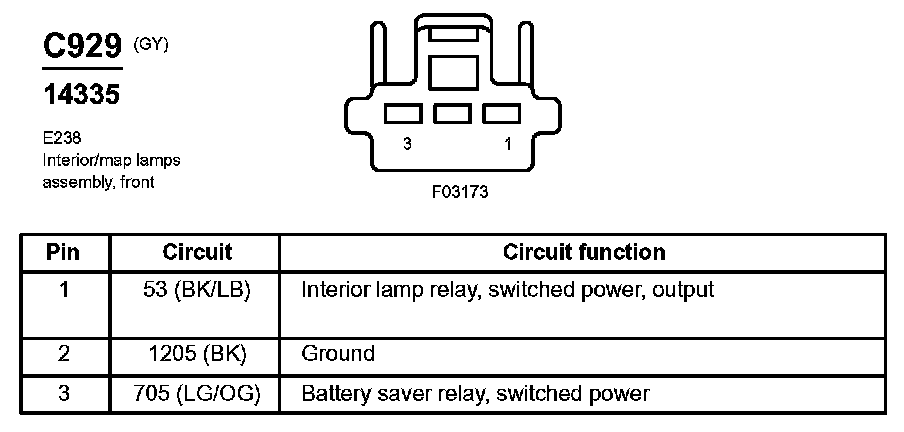

Interior/Map Lamps Assembly, Front
