Explorer 4WD V8-4.6L VIN W
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Anti-Lock Brakes - Vehicles Built After 03/2002
Anti-Lock Brakes - Vehicles Built After 03/2002

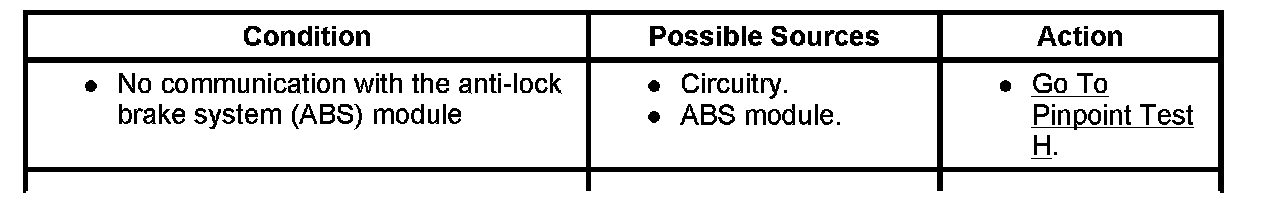

Symptom Chart (Part 1):

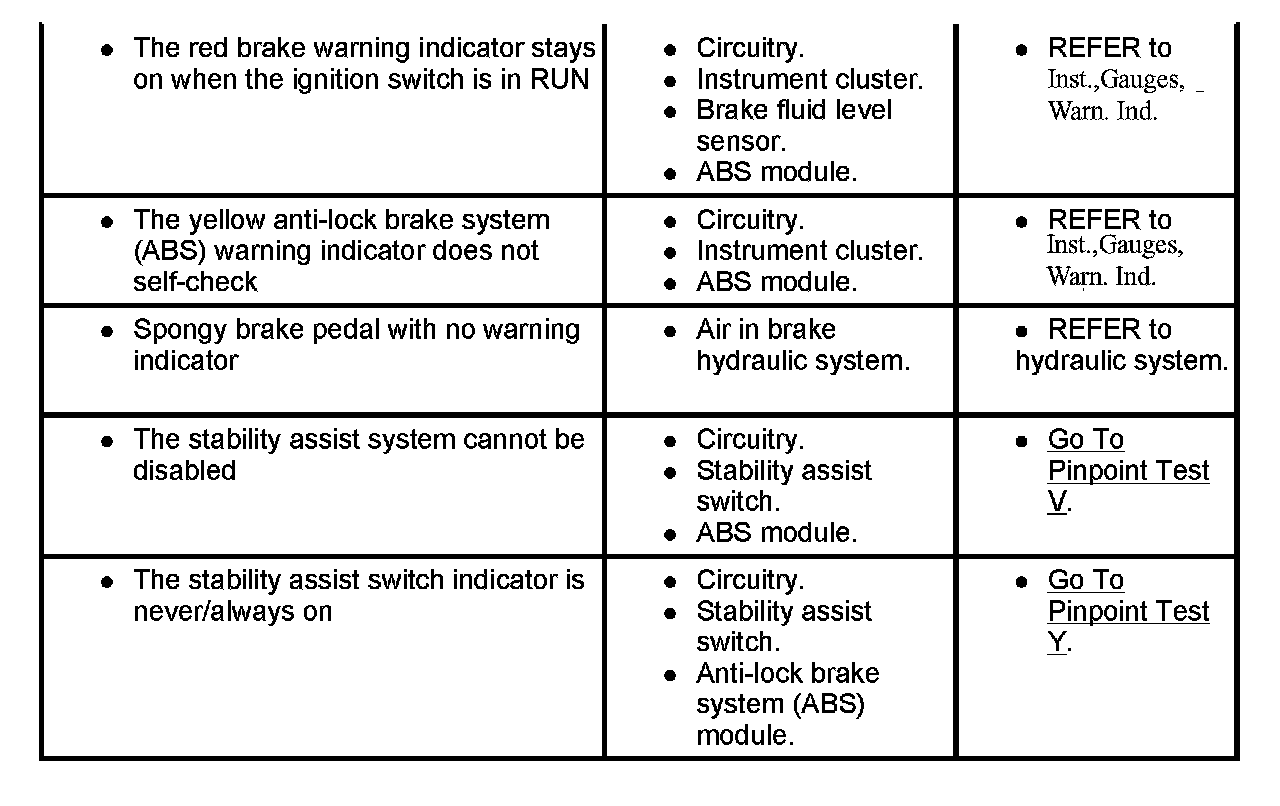

Symptom Chart (Part 2):
