Curiosii for ever!: Car repair manuals for everyone.
Home >> Ford Truck >> 2002 >> Explorer 4WD V8-4.6L VIN W >> Repair and Diagnosis >> Accessories and Optional Equipment >> Garage Door Opener Transmitter >> Testing and Inspection >> Pinpoint Tests >> Test A: Universal Transmitter Is Inoperative

Test A: Universal Transmitter Is Inoperative

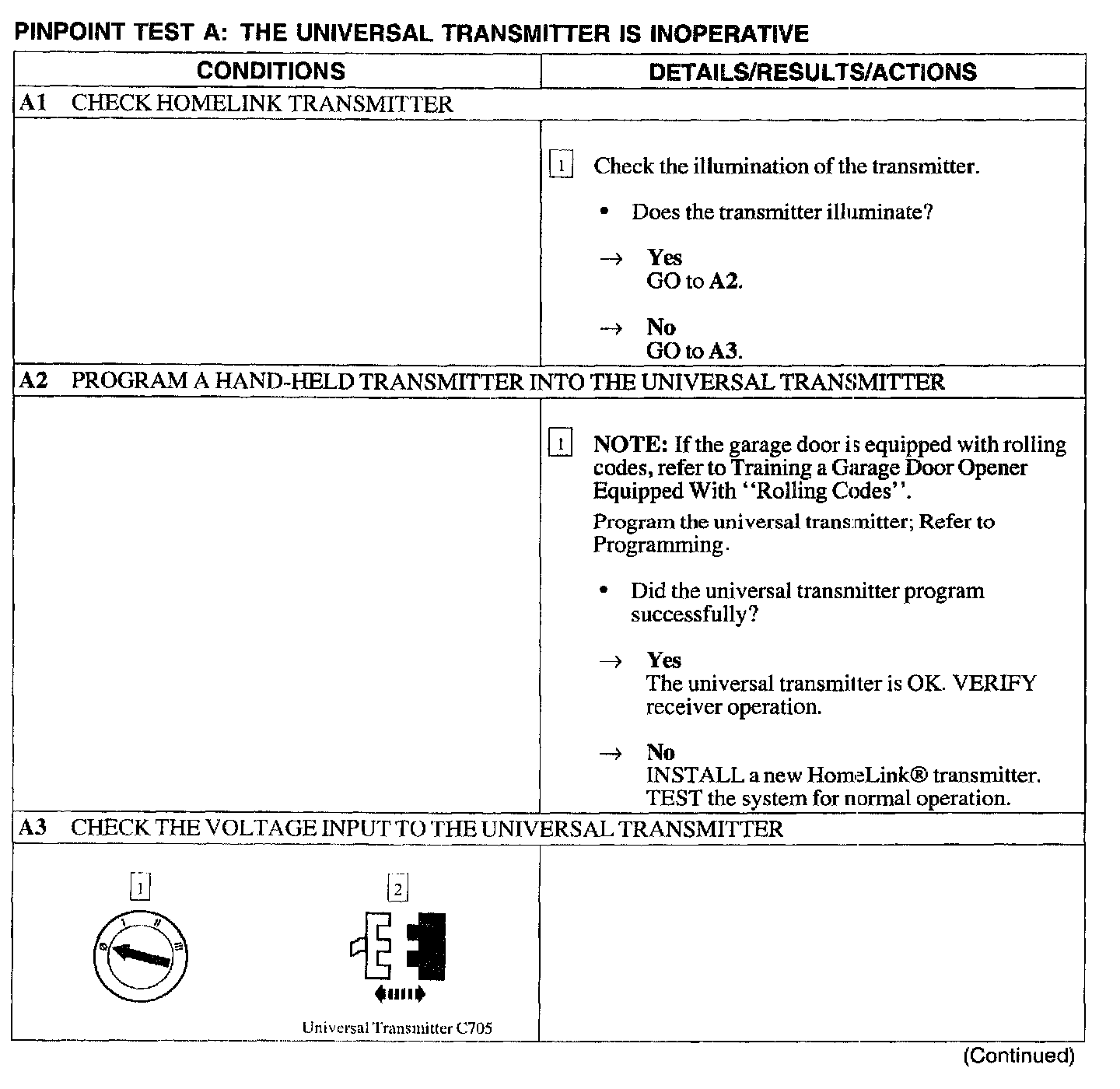

A1 - A3:

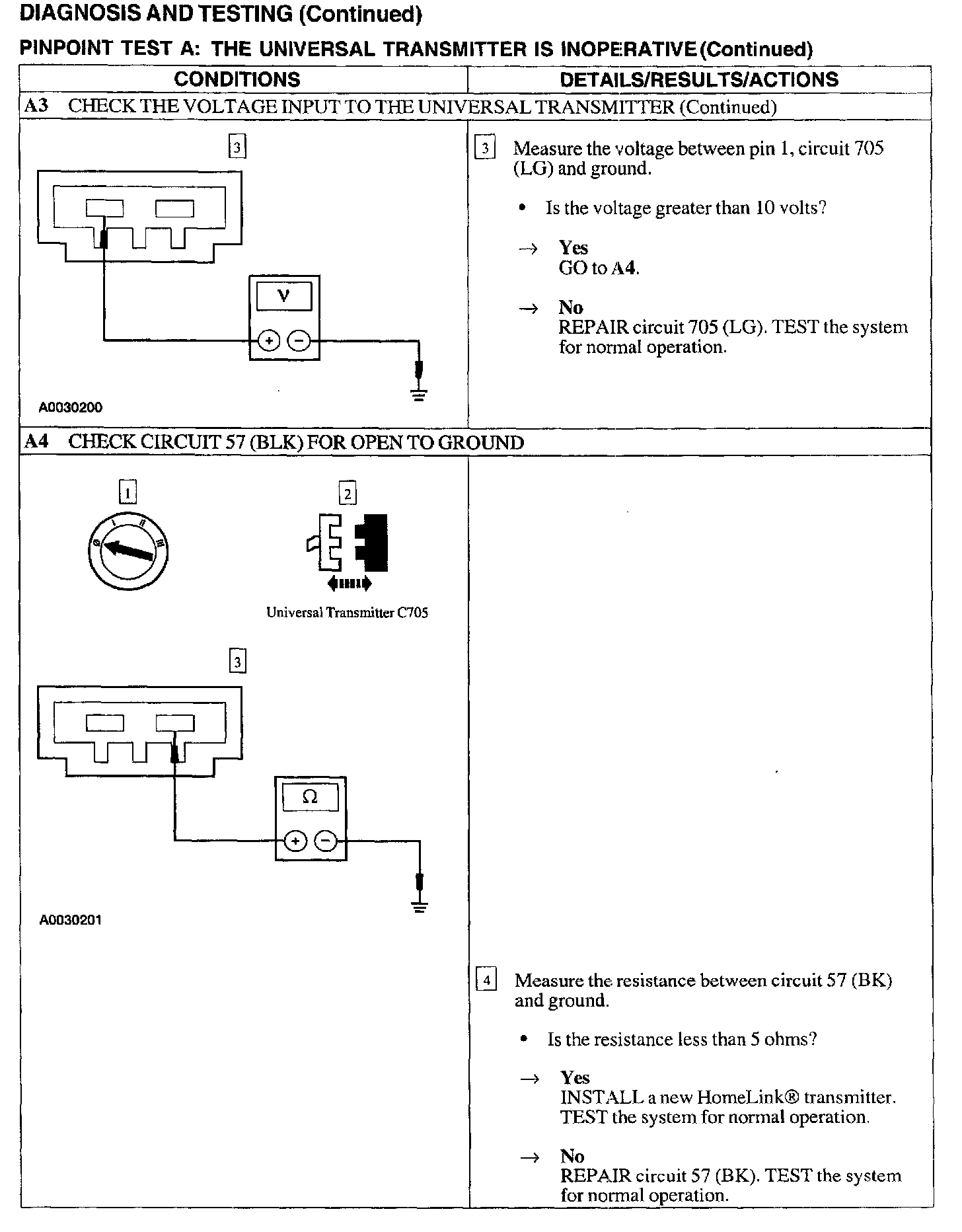

A3 - A4:
