Garage Door Opener Transmitter: Service and Repair

REMOVAL

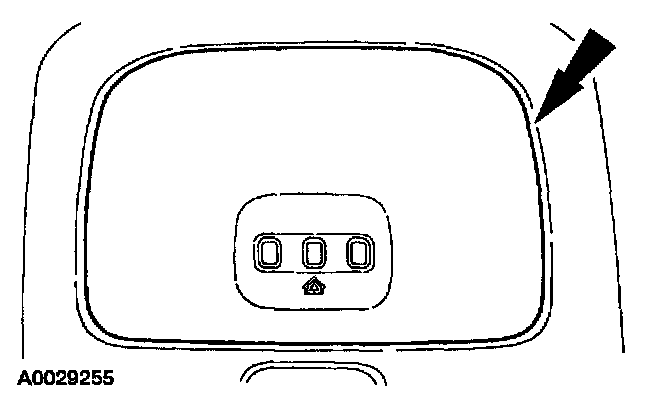

1. Open the HomeLink(R) transmitter panel. Depress the tab on the HomeLink(R) transmitter panel.

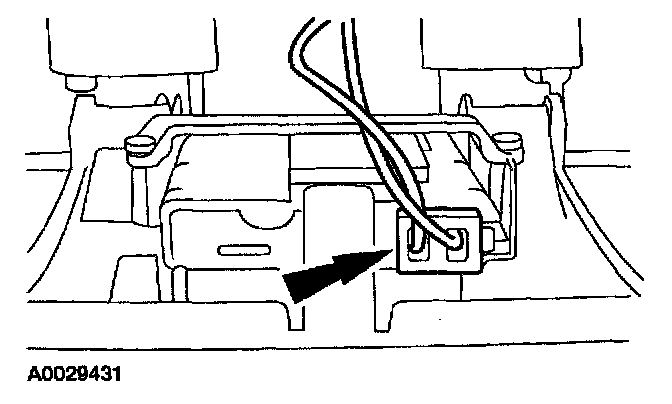

2. Disconnect the electrical connector.

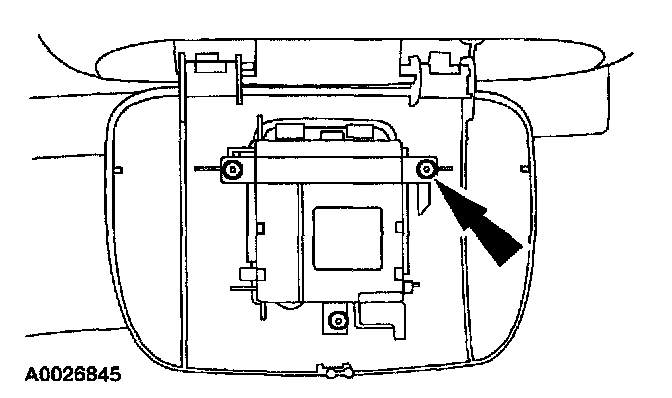

3. Remove the screws and the transmitter.

INSTALLATION
1. To install, reverse the removal procedure.
