Front Output Shaft Speed Sensor

Output Shaft Speed Sensor-Front

Removal
1. Remove the transfer case shift motor.





2. Remove the wire connector spacer and the front output shah speed sensor wire pins from the electrical connector.
^ Use the proper electrical connector pin remover.

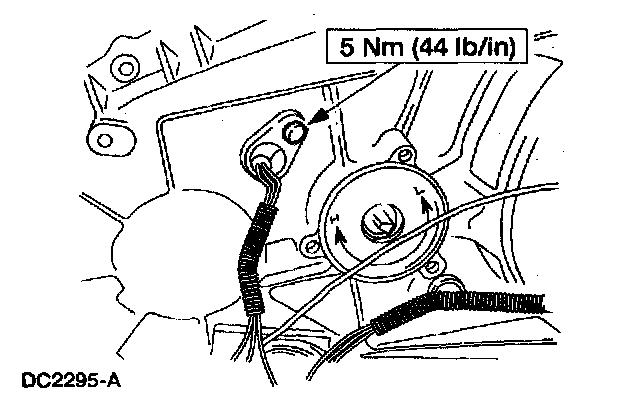

3. Remove the front output shaft speed sensor.
1 Remove the bolt.
2 Remove the front output shah speed sensor.

Installation





1. CAUTION: Make sure the sensor seats flat against the boss.

To install, reverse the removal procedure.
