Fluid - Transfer Case: Service and Repair

Transfer Case Draining and Filling





1. CAUTION: If the proper fill procedures are not followed, transfer case failure can result.

NOTE: Fluid level must be just below the fill plug.

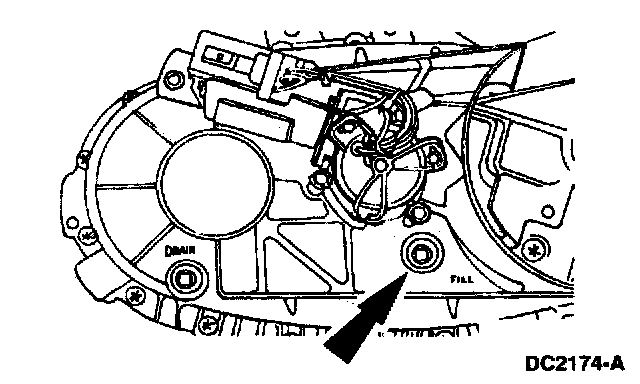

Remove the fill plug from the rear of the transfer case, and check fluid level.
^ If the fluid is below the level, fill with Motorcraft MERCON (R) Automatic Transmission Fluid XT-2-QDX or -DDX or MERCON equivalent.
