Differential Assembly
>>
Front
Front
Front Drive Axle and Differential

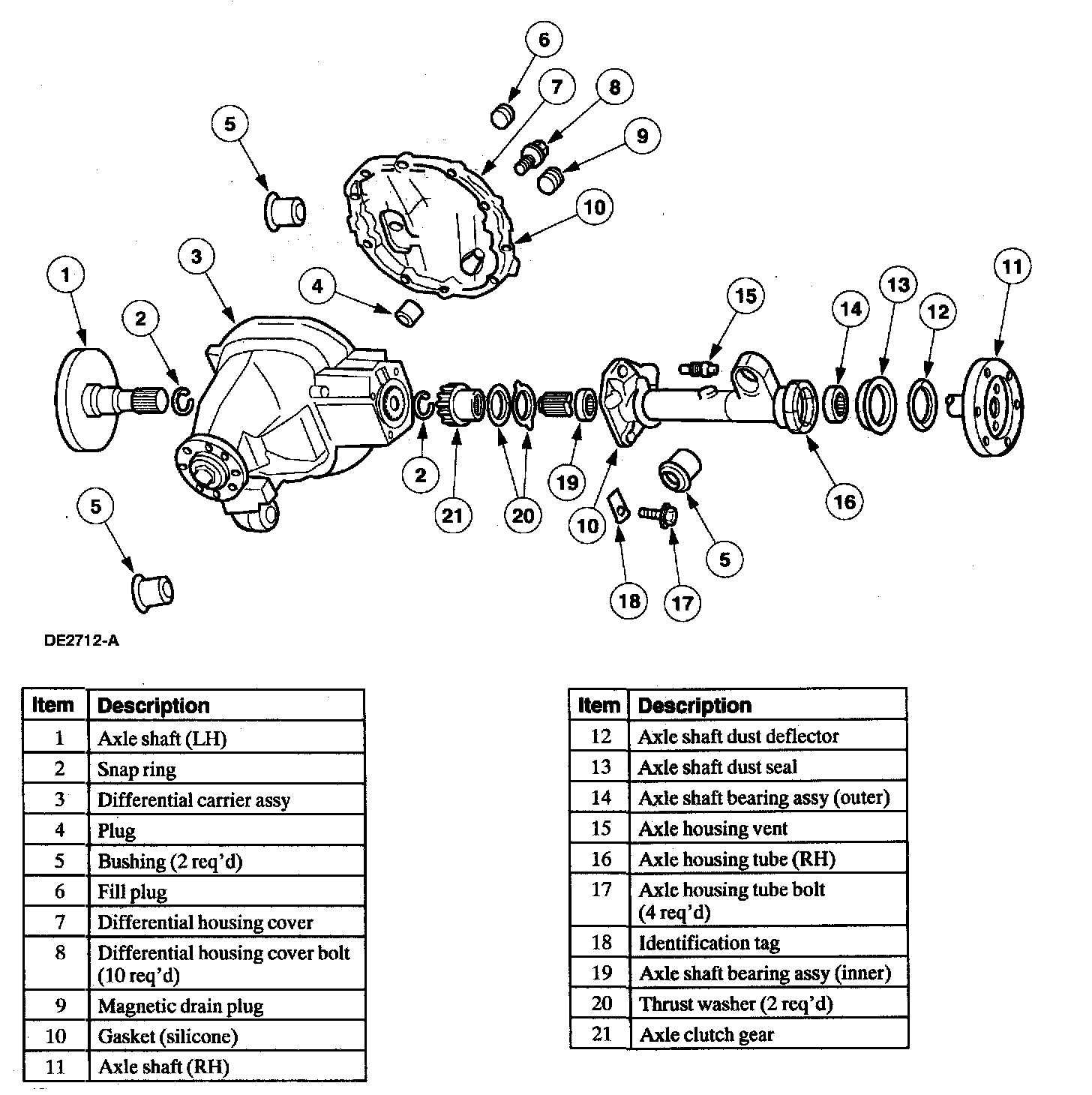

Front Axle Assembly-Disassembled View

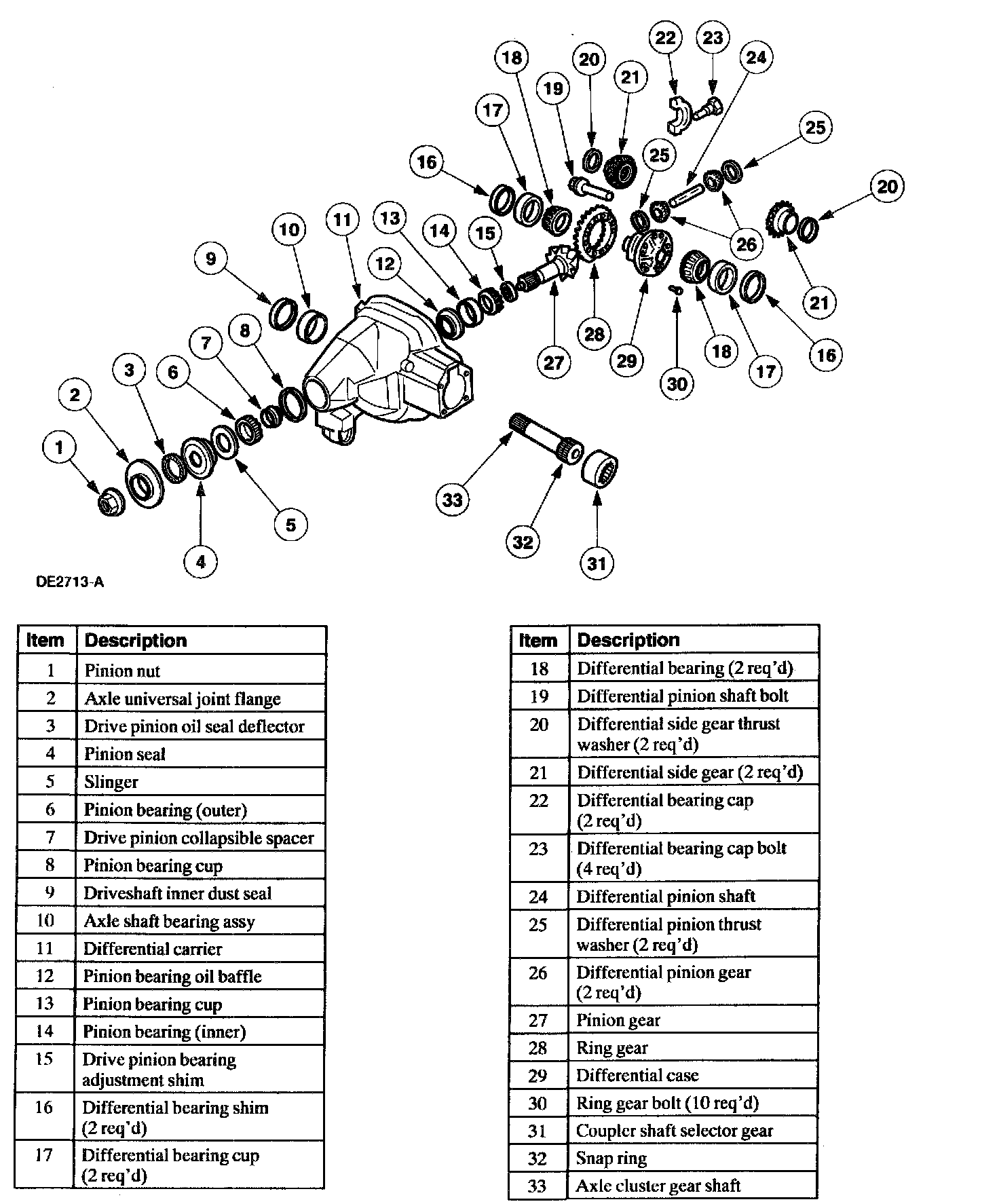

Front Differential-Disassembled View
