Remote Control: Service and Repair
REMOVAL1. Disconnect the battery ground cable.
NOTE: Vehicles equipped with video system, proceed to Step 4.
2. Remove the cellular phone holder (if equipped).
1 Remove the screws.
2 Remove the cellular phone holder.

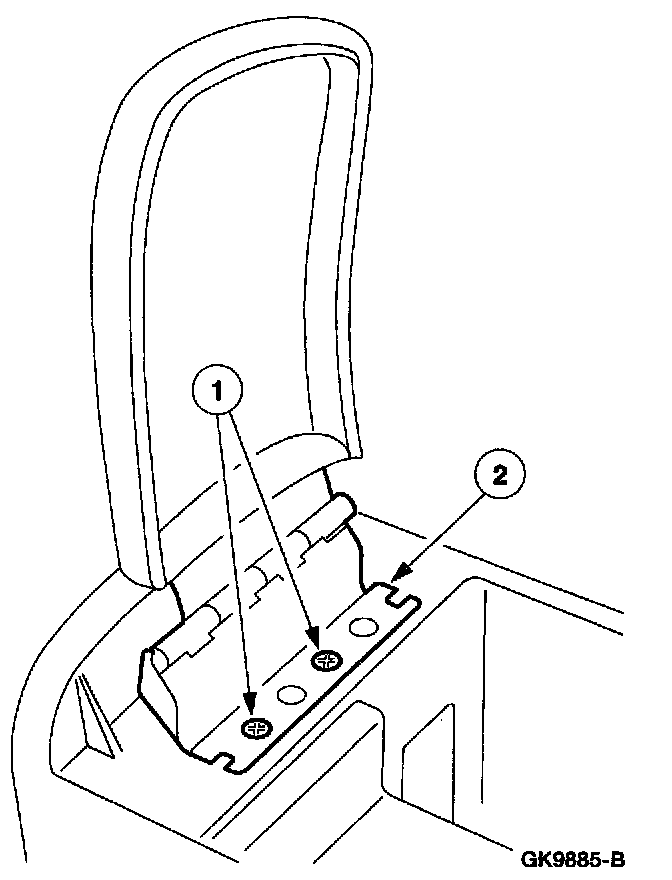

3. Remove the center console lid.
1 Remove the screws.
2 Remove the center console lid.

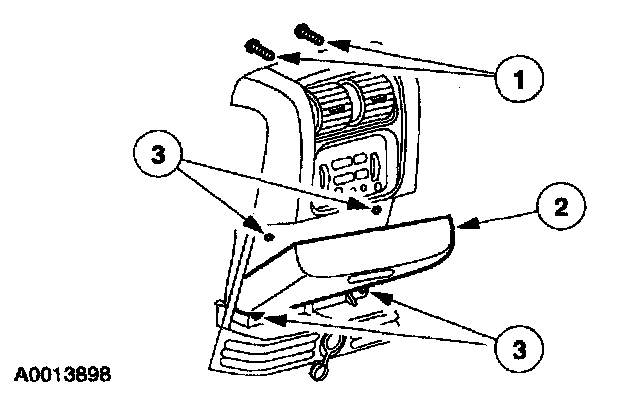

4. Disconnect the console rear panel.
1 Remove the upper screws (vehicles without the video system).
2 Lower the cup holder.
3 Remove the four rear screws.
NOTE: Vehicles without the video system.

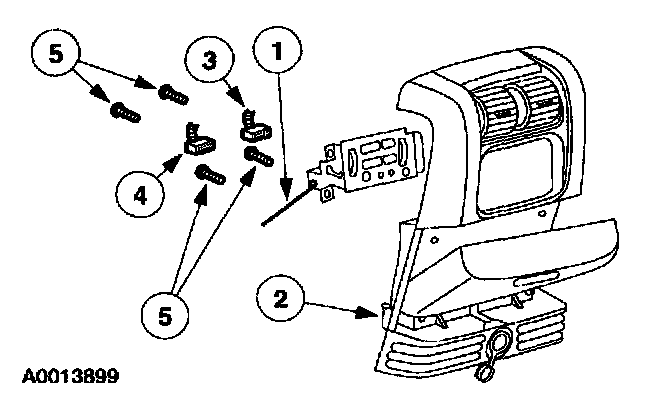

5. Remove the rear integrated control panel.
1 If equipped, disconnect the floor/panel control cable at the control head.
2 Disconnect the power point electrical connector.
3 If equipped, disconnect the blower motor control electrical connector.
4 Disconnect the radio control electrical connector.
5 Remove the screws.

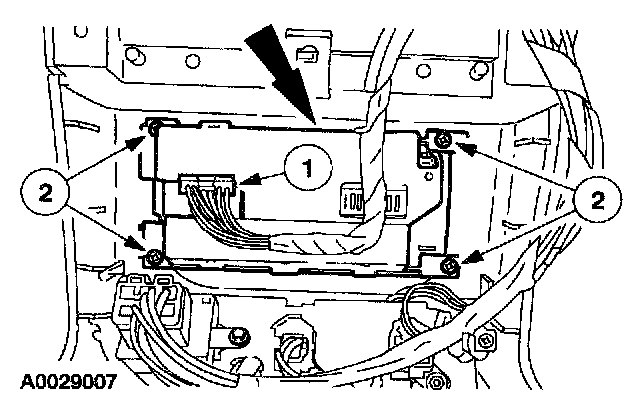

6. Remove the rear Integrated Control Panel (ICP)
1 Disconnect the electrical connector.
2 Remove the four screws.
NOTE: Vehicles equipped with the video system.
INSTALLATION
1. To install, reverse the removal procedure.
