Rear Door Window Regulator: Service and Repair
MOTOR - REAR DOORHeavy Duty Riverter:
Special Tool(s)
REMOVAL
NOTE: The window regulator and motor are removed as an assembly.
1. Remove the rear door trim panel.
2. Remove the rear door radio speaker.
3. Position aside the rear door watershield.
4. CAUTION: Support the window glass to avoid damage.
Raise and support the rear door window glass to the full up position.
5. Disconnect the power window motor electrical connector.

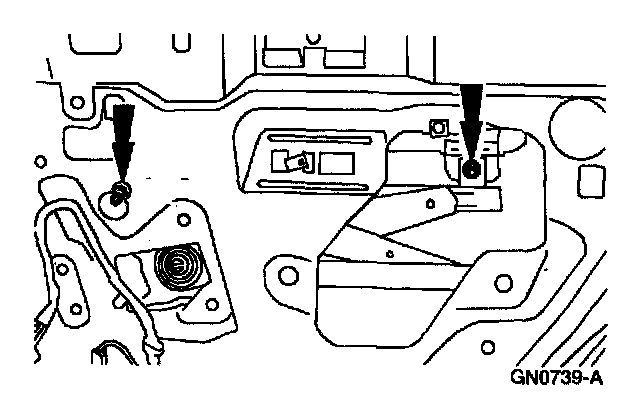

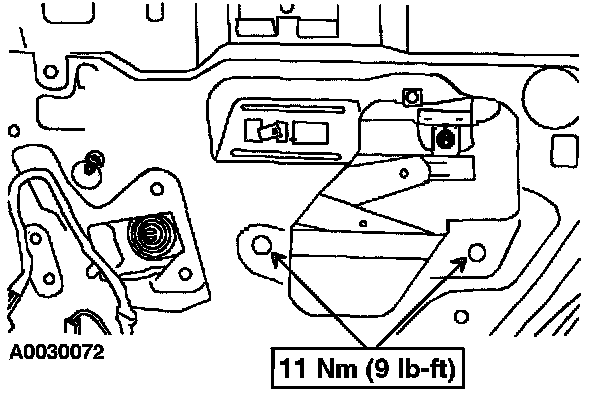

6. Remove the window glass to regulator nuts.

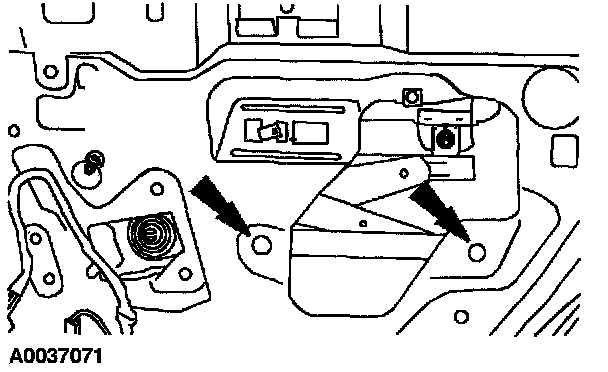

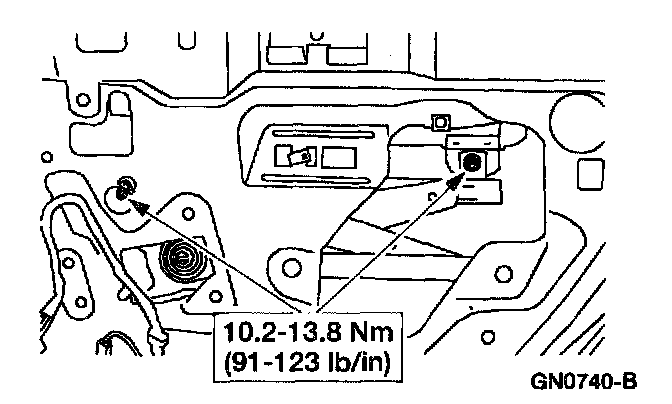

7. Remove the channel retaining nuts.
8. Remove the motor and window regulator assembly.

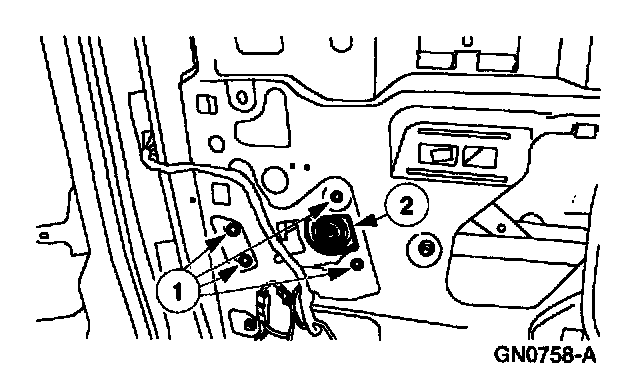

1 Drill out the rivets.
2 Remove the motor and window regulator assembly.
9. WARNING: Prior to power window motor removal, make sure the regulator arms are in a fixed position to prevent counterbalance spring unwind. Failure to place the regulator arms in a fixed position can cause the spring to suddenly release resulting in personal injury.

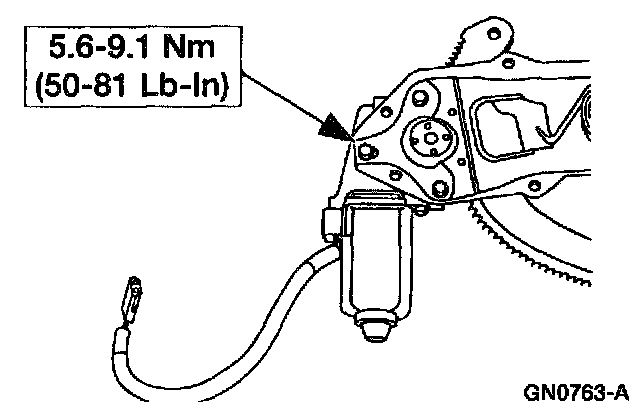

Remove the power window motor

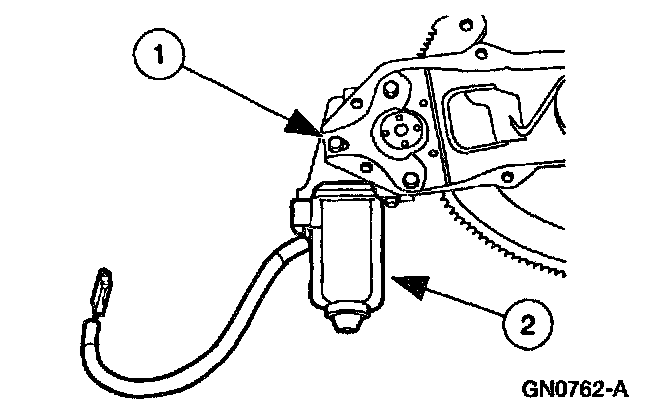

1 Remove the bolts.
2 Remove the power window motor.
INSTALLATION
1. To install, reverse the removal procedure.
- Use Heavy Duty Riveter to install the new rivets.
- Cycle the door glass to make sure of gear engagement.
